Home / Stall Mats Horse Equine Rubber / Horse Stall Foaling Mats All Sizes

Foaling Stall Mats, Interlocking Foaling Mats for Horse Stalls, Horse Mats

Horse Stall Foaling Mats All Sizes

SKU# 75AFAll
Be the First to Write a Review
Be the First to Write a Review
SKU# 75AFAll
$3.05/sf (You Save 19%) $3.05/sqft Reg: $3.80/sf - $3.80/sqft
Ships Out 7-10 Working Days Ship times are typical, inquire for immediate availability.

Please call Customer Service to Order this Item.
Try the Pro Floor Designer

Create complex room layouts to scale.

Request Free Sample

Need a Fast Sample Delivery? Please call customer service.

Request a Sales Person Contact
Thickness 3/4 inch
Length 6.00 feet
Width 4.00 feet
Weight 100.00 lbs
Manufacturer Warranty 12 year limited
DESCRIPTION⌃ Back to top

Top Features for Horse Stall Foaling Mats All Sizes

  1. Interlocking tiles makes for easy cleaning
  2. Easy to install and maintain
  3. Waterjet cut interlocking system provide the tightest fit possible
  4. Waffle bottom for anti-fatigue benefits
  5. Designed to provide maximum quality and longevity
  6. Requires no adhesive for installation
  7. Made from 100% recycled rubber
  8. 12 year warranty
Use Types

Foaling Stalls, Horse Stall Mats, Semen Collection Stations

Horse stall kits for areas are manufactured to the highest quality in the industry at competitive prices. For the best 3/4 inch thick horse stall foaling floors, choose our stall flooring for an equine floor that provides maximum longevity, comfort and value.

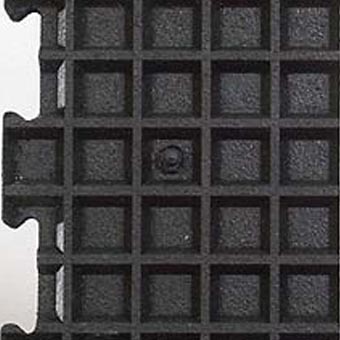

These foaling mats are uniquely designed with a waffle pattern bottom that provides an anti fatigue cushion surface to new foals and will also support the weight of fully grown, mature horses.

These interlocking mats are tight fitting and water jet cut for a precision fit every time. These foaling stall kits can also be manufactured to any specific custom size to fit your special foaling stall area.

Installation of our foaling stall kits is easy and hassle free with our kit sizes that are designed to fit most common horse stalls. One large benefit of interlocking tiles within a horse stall is that the interlocking tile flooring is much easier to clean than non interlocking mats.

Foaling stalls require stall mats that will hold together and that will allow for the horse to get the necessary traction to avoid slipping and sliding.

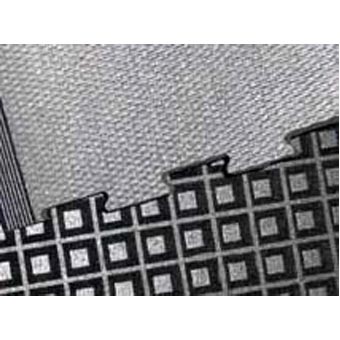

These interlocking waffle bottom mats permit interlocking of individual mats together throughout the area.

Individual mats installed in this manner allow you to pick up just one mat or a group of mats for easy maintenance and cleaning.

Waffle bottom mats give superior cushioning for your horse to get excellent traction.

The cup design on the bottom of the mat allows for this cushion effect, yet gives long life and durability.

The outside of the interlocked area(s) can be beveled, preventing stumbling by horses or trainers when entering the area.

All mats can be interlocked. Standard size for waffle mats is 4 x 6 ft x 3/4 inch thickness.

Standard sizes are in stock and custom cut sizes are available. Contact us for additional information.

4x6 Ft Mat Sizes:
Mats with beveled edges on all four sides are 4x6 ft in size
Straight edge mats with no beveled edges are 45.5 x 69.5 inches in size

Kit Sizes After Interlocking:
8x12 Ft Kit - 7 Ft 8 Inches x 11 Ft 8 Inches
8x18 Ft Kit - 7 Ft 8 Inches x 17 Ft 5 Inches
12x12 Ft Kit - 11 Ft 5 Inches x 11 Ft 8 Inches
12x18 Ft Kit - 11 Ft 5 Inches x 17 Ft 5 Inches
12x24 Ft Kit - 11 Ft 5 Inches x 23 Ft 3 Inches

Weight: 100 lbs. per 4x6 ft mat

These 3/4 inch thick tiles have a thickness tolerance of +/- .045 inch. Specifically designed plastic shims that fit the interlocking design of this tile are provided with these rubber tiles in order to provide a solution if any of the tiles have different thicknesses. Shim Guide

Contact customer service for custom sizes to fit your floor.

Our foaling horse stall mat kits are made of recycled rubber content. This is great for the environment because it reduces the number of rubber tires in landfills.


Ships via freight delivery, shrink wrapped on pallets.

This Product Ships Freight Only.
Please review our shipping disclaimer.

Product Type Tile
Material Type Rubber
Product Edging Interlocking
Thickness 3/4 inch
Width 4.00 feet
Length 6.00 feet
SF per Item 1.00
Weight 100.00 lbs
Packaging Shrink Wrapped on Pallets
Number of Pieces per Package Type 25
Non Absorbent Yes
Special Adhesives No
Universal Interlock Yes
Interlock Loss 0.13 feet
Material Hardness Shore A 60
Interlocking Connections Yes
Made In USA
Order Minimum 5
Surface Finish Diamond pattern
Surface Design Solid color
Installation Method Interlocking, dry lay
UV Treated No
Reversible No
Border Strips Included No
Manufacturer Warranty 12 year limited
PDF DOCUMENTS⌃ Back to top

 View Installation Instructions

 View Cleaning and Maintenance

 View Warranty

 View Specifications Data Sheet

 View Stall Mat Brochure

 View Leed Information

 View Material Safety Data Sheet

VIDEOS⌃ Back to top

PRICING⌃ Back to top

Pricing for Stall Kits Foaling:

8x12 Ft Kit - 7 Ft 8 Inches x 11 Ft 8 Inches - Retail $343.00, On Sale $274.00 per kit
8x18 Ft Kit - 7 Ft 8 Inches x 17 Ft 5 Inches - Retail $551.00, On Sale $441.00 per kit
12x12 Ft Kit - 11 Ft 5 Inches x 11 Ft 8 Inches - Retail $534.00, On Sale $427.00 per kit
12x18 Ft Kit - 11 Ft 5 Inches x 17 Ft 5 Inches - Retail $767.00, On Sale $613.00 per kit
12x24 Ft Kit - 11 Ft 5 Inches x 23 Ft 3 Inches - Retail $1104.00, On Sale $883.00 per kit

Custom Size Kits, Contact Customer Service for Pricing and Free Design Help

Q & A⌃ Back to top
Ask a question about this product

Product Questions:

How good is the traction on these mats when they're very wet (as in a foaling situation)? Is it possible to get a small sample mailed to me to be sure it's what I'm looking for?
We have free samples and that is a great way to look at the product, please request a sample online or contact customer service.
