Max Tile Raised Floor Tile

Max Tile Raised Modular Floor Tile light oak tile. Max Tile Raised Modular Floor Tile exercise room. Max Tile Raised Modular Floor Tile flooring. Max Tile Raised Modular Floor Tile with borders. Max Tile Raised Modular Floor Tile Le phillips senior center maxtile. Max Tile Raised Modular Floor Tile installation. Max Tile Raised Modular Floor Tile 9 tiles together White. Max Tile Raised Modular Floor Tile 9 tiles together Maple. Max Tile Raised Modular Floor Tile 9 tiles together Slate. Max Tile Raised Modular Floor Tile 9 tiles together Light Oak. Max Tile Raised Modular Floor Tile 9 tiles together Dark Oak. Max Tile Raised Modular Floor Tile 9 tiles together Walnut. Max Tile Raised Modular Floor Tile 9 tiles together Cherry. Max Tile Raised Modular Floor Tile 9 tiles together Stone.

Star Rating Image (95 Reviews ) Write a Review
$4.65 per Tile - $4.65 per SF On Sale - Reg: $6.18 per Tile - In Stock
Ships out 1-3 Days
Ship times are typical, inquire for immediate availability.
  • Max Tile Raised Modular Floor Tile Maple swatch.Max Tile Raised Modular Floor Tile Maple swatch.
  • Max Tile Raised Modular Floor Tile slate swatch.Max Tile Raised Modular Floor Tile slate swatch.
  • Max Tile Raised Modular Floor Tile light oak swatch.Max Tile Raised Modular Floor Tile light oak swatch.
    Light Oak
  • Max Tile Raised Modular Floor Tile dark oak swatch.Max Tile Raised Modular Floor Tile dark oak swatch.
    Dark Oak
  • Max Tile Raised Modular Floor Tile walnut swatch.Max Tile Raised Modular Floor Tile walnut swatch.
  • Max Tile Raised Modular Floor Tile cherry swatch.Max Tile Raised Modular Floor Tile cherry swatch.
  • Max Tile Raised Modular Floor Tile stone swatch.Max Tile Raised Modular Floor Tile stone swatch.
  • Max Tile Raised Modular Floor Tile black swatch.Max Tile Raised Modular Floor Tile black swatch.
  • Max Tile Raised Modular Floor Tile White swatch.Max Tile Raised Modular Floor Tile White swatch.
20 Tile Minimum

Calculate Tile Count
Try the Pro Floor Designer

Create complex room layouts to scale.

Request a Sales Person Contact
Over 400 SF please contact customer service for volume discount pricing. Contact customer service for product sample options.
DESCRIPTION⌃ Back to top
  • Benefits
  • 12x12 inch tile size
  • Durable top commercial grade vinyl surface
  • Removable for repeated installations
  • Allows water and air to flow underneath
  • Tight fitting tiles after installation

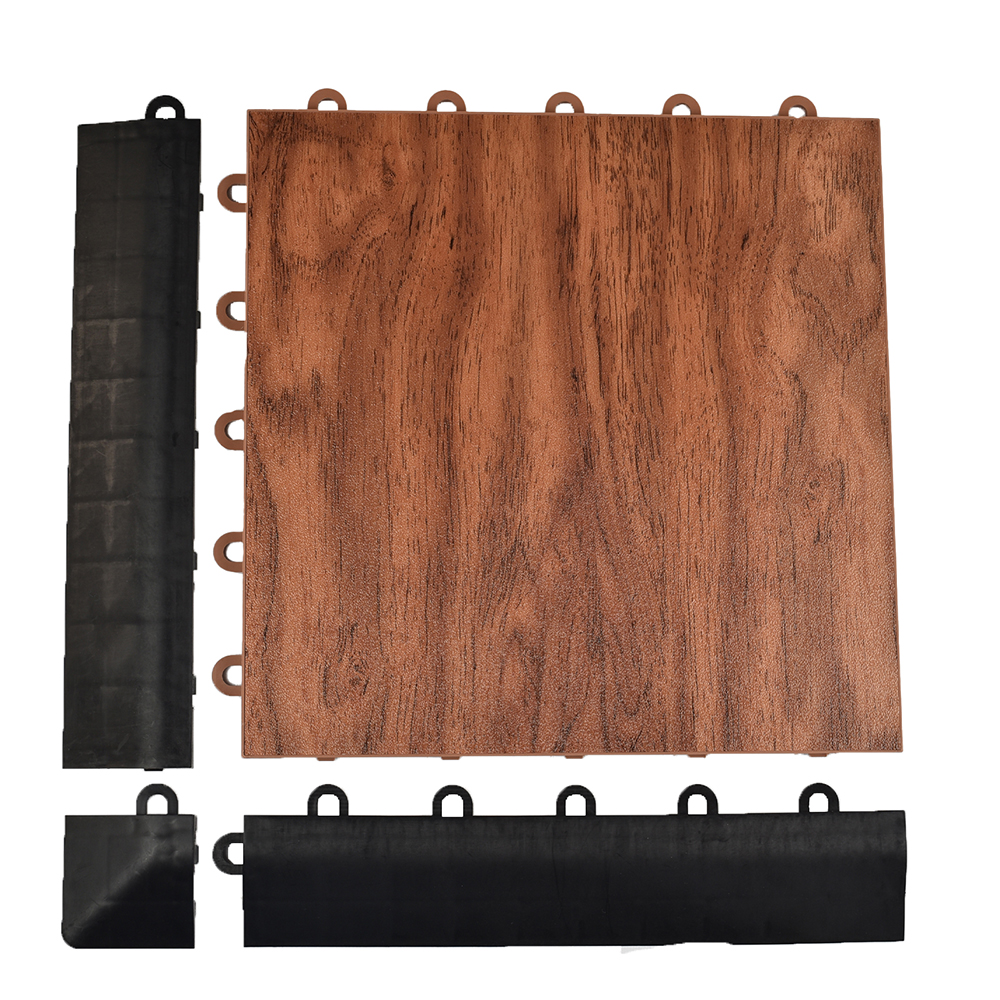

  • Ramped border edging available in black
  • Cut to fit for wall to wall installations
  • Use 3 mm rubber underlayment for sport and court floors
Use Types

Basement Flooring, Portable Dance Floors, Court Floors, Garage Floor Tiles, Multi-Use Flooring, Aerobic & Exercise Flooring, Trade Shows, Show Room Floors

Max Tile is a that is modular in design. Choose this raised floor tile for modular basement flooring, portable dance floors or for athletic multi-purpose flooring installations. This commercial grade raised flooring tile features a low maintenance, high quality 3 mm thick vinyl laminate top surface in designer wood grain textures and is easy to install and re-install.

This raised modular floor tile is great for home flooring installations, portable dance floors and athletic multi-purpose flooring. This modular flooring tile for basements features a 15 year wear layer for residential use and a 7 year wear layer for commercial installations. The wear layer is .03 mm thick and is considered a commercial wear layer thickness. The product warranty is 5 years.

The Max Tile takes modular floor tiles to the highest level of quality and durability. The commercial grade laminate vinyl tile top surface is a full 3 mm thick. The vinyl features UV protective coating and the surface of this tile will never need refinishing, is scratch and wear resistant. This tile is an excellent choice for portable dance floors.

The durable polypropylene base tray has been computer designed for repeat installations without tile connector degradation. The unique tile connector system offers users portability, strength and stability that allows for easy installations and repeated removals for portable dance floors and outdoor events as portable flooring.

This modular floor tile is a great choice for a basement flooring solution, especially on top of damp basement floors where air circulation is desired. Max Tile is simply the best non-absorbent vinyl laminate modular floor tile on the market.

For athletic court floor installations indoors, we recommend a 3 to 6 mm low density rubber underlayment be installed under the Max Tiles, for added cushion, quiet, and comfort when indoors that is needed for court floors. This tile is great for multipurpose use rooms in churches or community centers where an athletic combination meeting room space is needed. This tile is non-absorbent and can be painted with court lines.

Max Tile is a tight fitting raised floor tile that easily interlocks together and makes for a great DIY installation project. To connect the tiles together, place the tiles are on a hard surface, then simply align the tiles with the nubs on top of the loops and step on the top tile with your foot.

Choose a warm and comfortable wood grain pattern or one of our popular slate looks to match your interior design and bring your basement floor to life. This flooring for basements will provide durability and quality.

Easily assemble and disassemble this tile as many times as needed. This tile is perfect for residential basement floors, portable dance floors, athletic sports facilities, or multi-purpose spaces such as church halls and YMCA courts.

The surface texture of this vinyl tile features a scratch-resistant top that is designed for heavy traffic. This allows the flooring to be used with tables and chairs during the day and a basketball game or aerobics class at night.

This innovative raised floor tile system offers versatility for all types of residential and sports flooring installations including basketball courts, gym floors, Jazzercise and aerobics floors, portable dance floors and residential basement floors.

The color of plastic base tray will match most of our wood grain designs for improved seamless aesthetic appearance in your sports or athletic facility. The commercial grade 3 mm thick luxury vinyl is available in many pleasing wood grain and stone designs.


Clean with damp mop, hot water and common household floor cleaner.


Ships in cartons via ground service to your door, for larger orders product may ship freight delivery.

This Product Ships UPS Ground, FedEx Ground and/or Freight.
Please review our shipping disclaimer.

In Stock Yes
Product Type Tile
Material Type Vinyl on Plastic
Product Edging Interlocking
Thickness 5/8 inch
Width 1.01 feet
Length 1.01 feet
SF per Item 1.00
Weight 2.01 lbs
Packaging Cartons
Number of Pieces per Package Type 26
Non Absorbent Yes
Special Adhesives No
Universal Interlock No
Interlock Loss 0.00 feet
Material Density Shore A 85
Interlocking Connections Yes
Made In USA
Order Minimum 20
Surface Finish Smooth flat
Surface Design Wood grain, stone or slate
Installation Method Snap together, dry lay
UV Treated Yes
Reversible No
Border Strips Included No
Manufacturer Warranty 5 year limited
PDF DOCUMENTS⌃ Back to top

down arrow1 View Installation Instructions

down arrow3 View Warranty

down arrow4 View Specifications Data Sheet

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

VIDEOS⌃ Back to top

Q & A⌃ Back to top
Ask a question about this product

Product Questions:

Hi- I have a garage that was finished in - we installed carpet padding and carpet over the concrete. I am now looking to add something in there that will provide a better workout surface. Will this product work with a carpet backing? Also, I'm not going wall to wall - are there edge pieces to clean up the outer edges? I'm going to install roughly 50 square feet. Thank you
This product would work well for your application. And yes this tile has border edges available. Also our Staylock floor tile would work and has border edging.
I am going to use this product in a garage/hot tub room. will it be a good product to use in this area ?
Yes this could be ok, and the tiles are not water tight, so some water could get below the tiles, however the tile are raised and will allow air and water flow under the tiles. The tiles themselves are water proof.
I am considering installing this as a mat in my office for my office chair to roll on. But it would be installed over carpet. Will this product work on carpet rather than a hard concrete floor?
Yes you can install this product over carpeting, however this tile is not designed as a chair mat and may not hold up to the chair wheels over time.
How do you recommend ramping cut sides? Unfortunately my area is 15 1/2 x 15 1/2 and there are 3 sides with doorways so at least one of them will be on a cut side
If a ramp is required, then that tile can not be cut down.

Greatmats Photo Contest
REVIEWS⌃ Back to top

Customer Rating: 5 Stars -

love it!!!


Customer Rating: 5 Stars -

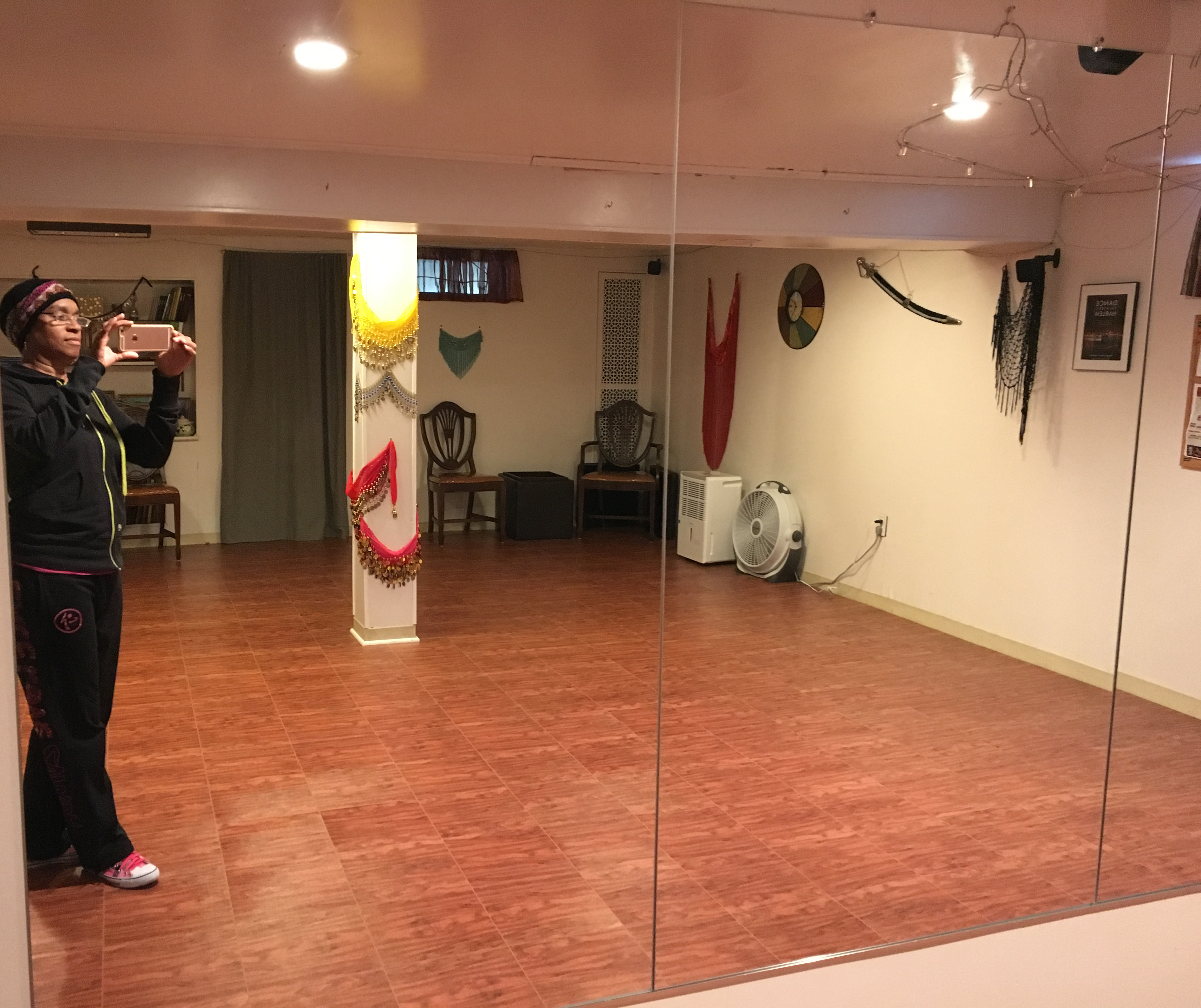

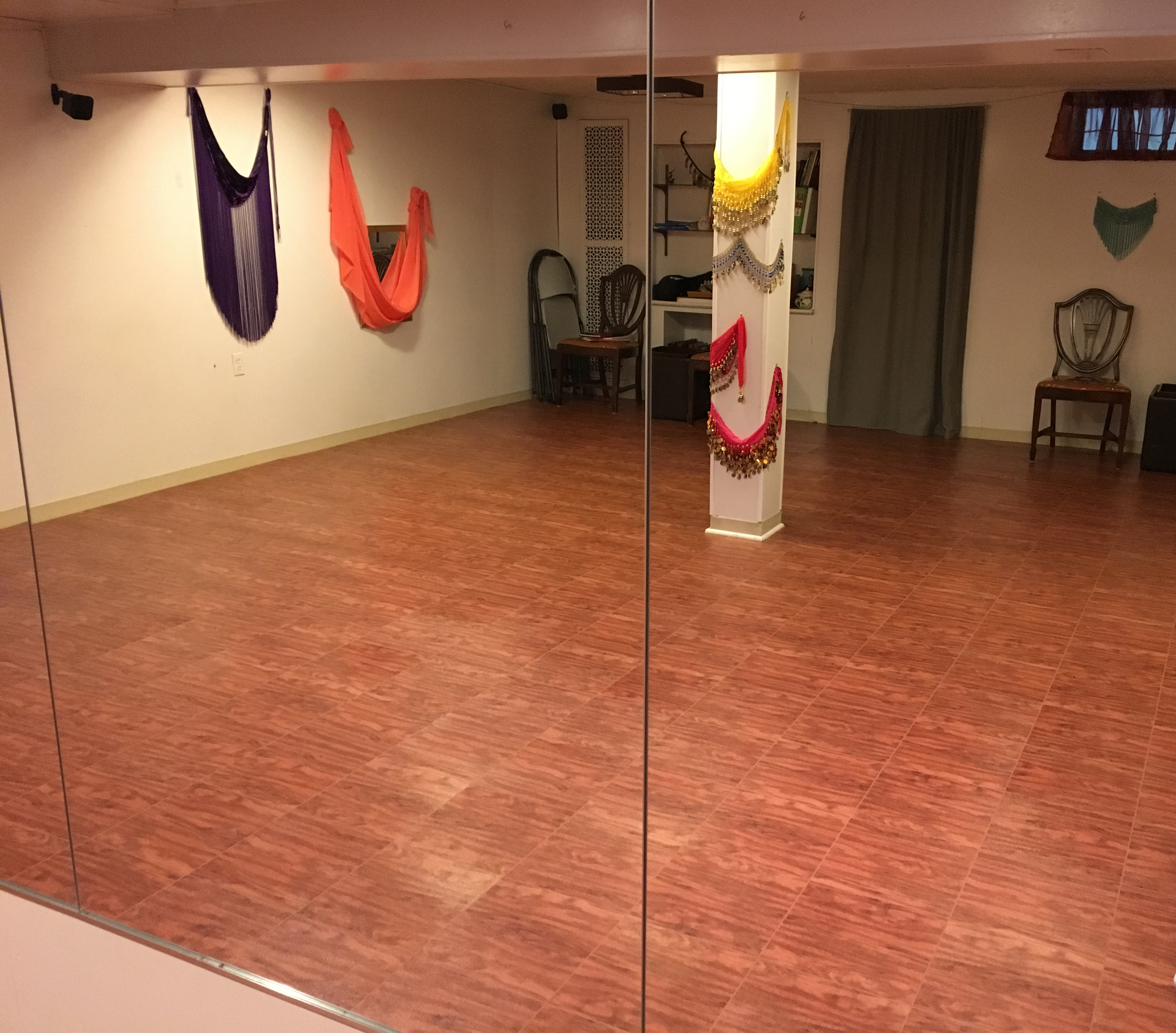

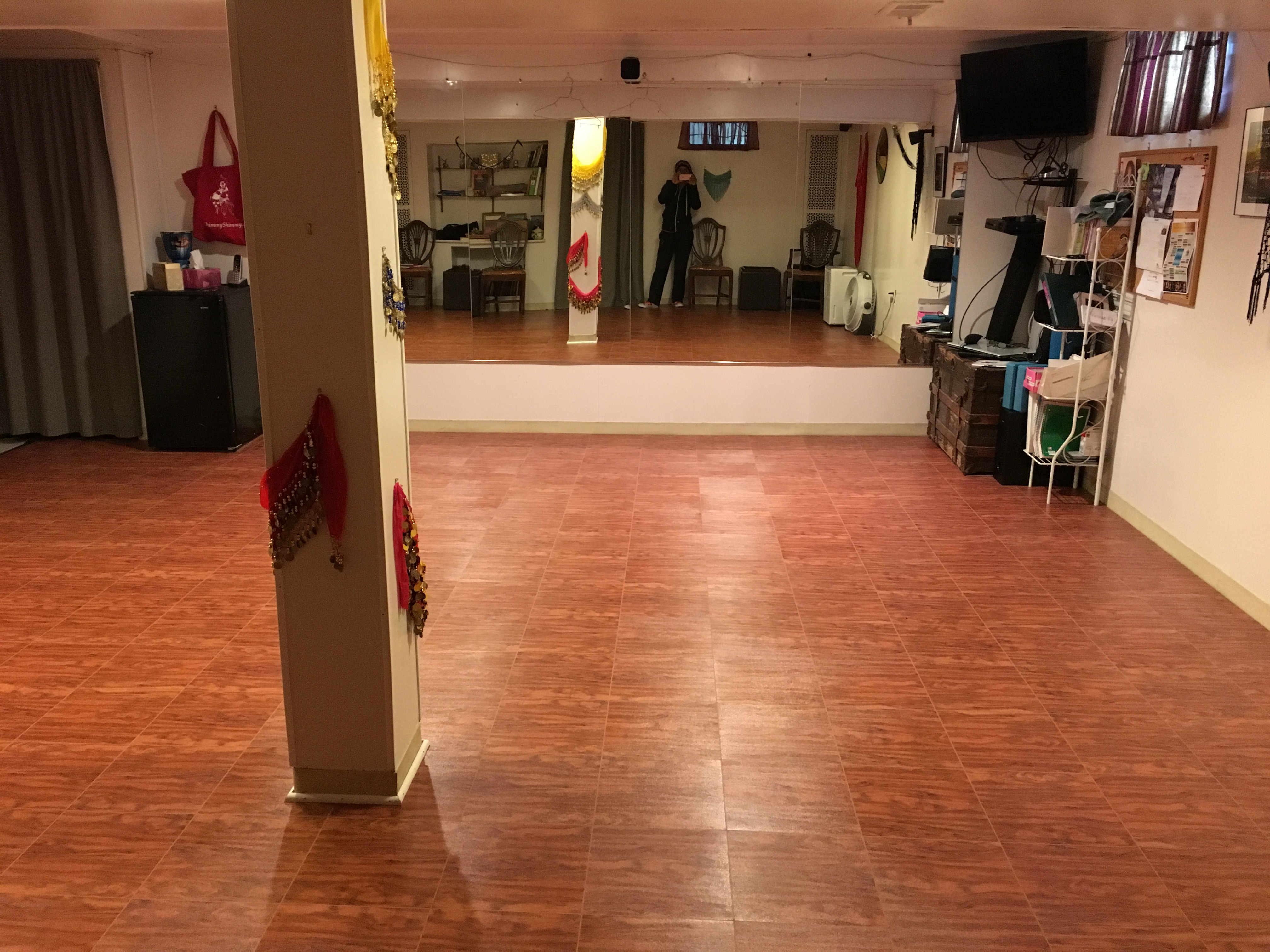

We installed this floor last fall as part of a remodel of most of our house, including this dance studio. Now that the remodel is done and the room is cleaned up, I can say that I LOVE LOVE LOVE this floor! So many awesome things to say about it:

1) Installation was so easy it's crazy. Once the underlayment was down, we just set a few pieces in place at one time and then walked around and snapped them into place. It was even a little fun. We did sometimes have to give it a sharp thwack but, even so, installation was simple. The hardest part was bending over repeatedly to lay new ones but there's no avoiding that.

2) The floor is warm on our tootsies in a room that we keep cold.

3) Barefoot, socks, or sneakers, we have no problems at all. The floor isn't too sticky or too slippery. Side note: it is absolutely in place; no movement at all.

4) Because of the underlayment and the sprung quality of the floor, it's really comfortable to dance on. We use the studio for Zumba, in addition to belly dance, and high-impact moves don't hurt us at all.

5) And ... it looks awesome! This floor is beautiful and I'm so proud of it! Wish we had done it years ago!

Baltimore, MD

Click To View Full Size PhotoClick To View Full Size PhotoClick To View Full Size Photo

Customer Rating: 5 Stars -

Good quality product that installs fairly easily. My daughter is enjoying her new home dance floor!

Longmont, CO

Customer Rating: 5 Stars -

Awesome product! I really haven't had this much fun in a household project in a long time. They go down in minutes. I put them over 1/2 inch foam rubber (at GreatMats recommendation) for a home gym. The floor looks great and has just the right amount of cushion. It is hard enough to bounce a basketball or hold up a heavy treadmill. Yet is also has some give, so a nice surface to walk on and do exercises. (I put a foam rubber mat on top to do situps). I wouldn't slam down heavy weights from a high height, but other than that, I think it can handle anything. The look of the product (I did maple) is great. It has wood grain, set in the tiny plastic 1 foot square. It won't fool anyone into thinking it is actual hardwood, but there was no grain repeats and it just looked nice--like formica.

Vienna, VA

Click To View Full Size Photo

Customer Rating: 3 Stars -

Floor was easy to assemble, but takes up a lot of volume (3 carts to cover 40 x 14 foot floor) Needed smaller carts than what was recommended as the cart from Great Mats does not fit through standard doors nor elevators or into small storage closets. Floor itself is a bit slick, dancers reported slick conditions, but that could just be from first time use. I also received reports of visible scuff marks, but our students returned the floor so I have not seen them.

Washington, DC

Customer Rating: 5 Stars -

Elegant product for our home gym while still providing the soft feel since we put ours on top of our existing carpet. If going that route you'll need to use a tile or some other hard surface underneath just to snap the pieces into place, being that the soft flooring doesn't allow for the connection; but once done it seems to work fine (although make sure to position heavy equipment stress points on the portions of said tiles where they connect that way over time you won't have a lower piece adjacent to another etc.).

McClean , VA

Customer Rating: 5 Stars -

We used the floor for our first event yesterday. Everyone loved it!


Customer Rating: 1 Stars -

This flooring is not appropriate for aerobic activity at all. It's hard and slippery with a cheap Shiny finish. do not buy for fitness applications.

San Francisco , CA

Customer Rating: 5 Stars -

Our church is in a 165 year old building which is built into the side of a hill (like a barn so both levels have ground-level entrances). As a result, we had recurring troubles with ground water entering the basement when we got heavy rains. After the previous laminate plank flooring was destroyed by the water issues, we finally pulled it out, had a waterproofing company install a drainage system, and installed Max Tile Raised Floor Tile. We've had a few heavy rains since and have not had any water problems, but we are satisfied that if we ever do, the new flooring will help minimize any issues. On an everyday basis, the floor looks great and is easy to keep clean. Everyone loves it!

Dayton, Ohio

Click To View Full Size PhotoClick To View Full Size PhotoClick To View Full Size Photo

Customer Rating: 5 Stars -

At the beginning i was skeptic about the product because i needed for a salsa event i was afraid that it will break or separate in the middle of the performances and renting a wooden dance floor was really expensive but it hold it very well my event was successful it is pretty good product some of them where damage on the shipping but i got them replace right away and to add customer service was excellent


Customer Rating: 5 Stars -

These tiles have been fantastic. We have an old basement with slightly uneven floor. The little bit of flex on the tiles allowed us to still put them down. Made the basement so much nicer than we expected! They are a little more money up front than some other options but I think they made up for it in ease of installation and minimal prep.

Cleveland, OH

Customer Rating: 4 Stars -

Great quality product


Customer Rating: 5 Stars -

Excellent product. We are using it in our booth at a trade show.


Customer Rating: 4 Stars -

So far, so good. My carpet is soft, so I placed a thin board under the tiles to connect them. The edges connect well to the tiles, but pop loose a bit connecting to each other. Im a dancer, but Im also a chess player, so I wanted an 8 x 8 pattern in an 8 x 10 space. My brother sawed the two tiles which didnt quite fit.

Plymouth, MN

Click To View Full Size PhotoClick To View Full Size Photo

Customer Rating: 5 Stars -

We put these down in the basement because it gets wet a times. They work great. Easy to cut and easy to install

Flushing , NY

Customer Rating: 4 Stars -

The tiles are sturdy, slightly flexible (which is good) and look good - from ''up top''. When you kneel down it is pretty obvious that it is just printed plastic. I had to cut some with my table saw (fine tooth saw blade) and it worked well. But, do not leave the tiles exposed to sunlight: I had left one on the ground in my driveway for a while and the glue that holds the printed part to the tile body dissolved.
Installing the tiles is very easy and quick. I did follow the advice and put a 3mm rubber underlay down beforehand. So far, so good.
One more thing: when ordering, you need to take into consideration the shipping cost!


Customer Rating: 4 Stars -

Very easy to install and cut. I had a lot of angles as the basement walls are at unusual angles.


Customer Rating: 5 Stars -

I bought the Max Tiles back in June to make a dance floor in my condo, and posted a review complaining about the floor being uneven after a few dances on it. I was wrong, and it was my fault not to snap them tight before use, thus causing it to be loose. The tiles are now fit perfectly and they make a great dance floor. In fact, I bought a few additional pieces to enlarge it recently.


Customer Rating: 5 Stars -

Easy to install. Clients love it. We are able to move it around according to size we need for each event.
Plus we have saved hundreds of $$$$$ by purchasing a floor of our own. Thank You ! Edward


Click To View Full Size PhotoClick To View Full Size PhotoClick To View Full Size Photo

Customer Rating: 5 Stars -

Perfect for my daughter to practice tap and ballet on. We are using it on top of carpet and the edges in snap with too much weight applied to them (my husbands weight) because of the give in the carpet.
We chose the darker color and love it. The snap on border is great for preventing stubbed toes.
We got 12 tiles so it's 3x4. It's perfect! Also the sales rep on the phone was amazing! Knowledgable and made sure I was getting the right number of male/female clip on borders and corners.

Fast shipping! Had the Mat in 3 days.
