Safety Wall Pad 2x7 Ft x 2 inch WB Z-Clip ASTM

- Certified OSB
- Impact rated polyethylene foam
- Class A fired PVC Vinyl
- See More Details
Ships
Out: Estimate 2-4 Weeks on Average
-
Brown -
Royal Blue -
Navy Blue -
Pool Blue -
Black -
Purple -
Forest Green -
Pink -
Gray -
Yellow -
Orange -
Red -
Maroon -
Camel -
White -
Dark Gray -
Carolina Blue
Request Quote
Please Call for Sample Options
VIDEOS
TOP FEATURES
- Certified OSB
- Impact rated polyethylene foam
- Class A fired PVC Vinyl
- 2 inch thick foam
- 18 oz vinyl covering
- Leed certification
- Contains at least 60% recycled pre-consumer raw material
- Anti-Mildew, Anti-Fungus, Antimicrobial, Antibacterial treated
Use Types
Gym Wall Pads, Basketball Court Walls, School Wall Pads, Wrestling Rooms, Martial Arts, Combat Training, Safe Rooms
Safety Wall Pad 2x7 Ft x 2 inch WB Z-Clip ASTM, Class A PVC vinyl 18 oz
Impact wall pads is an indoor stationary Safety Wall Pad 2x7 Ft x 2 inch WB Z-Clip ASTM, intended for direct wall connection.
The right materials to make your project the very safest, it is certified OSB, Impact rated polyethylene foam, and Class A fire rated PVC vinyl. Pads are easy to install the 2 inch thick impact rated polyethylene foam laminated to 7/16 inch oriented strand board covered in Red Class A fire rated 18-ounce vinyl. 1 inch nailing margin top and bottom.
Impact Series is an indoor stationary wall padding panel, intended for direct wall
connection. The panel is a wood backed pad of 2 inch Impact rated polyethylene foam
bonded to the face using a two-part adhesion process. The foam and wood are
covered front and sides then firmly stapled onto the back using Class A PVC Vinyl.
Components
1. Backer Board: Not less than 7/16-inch- (11-mm-) SFI® Certified Responsible
Urea Formaldehyde Free recycled composite wood backer board. This portion of
the product contributes toward satisfying Credit IEQ 4.4 under LEED.
2. Foam Layer – 2 inch polyethylene foam meets standards for ASTM 2440. The test method
quantifies impact in terms of g-max and Head Injury Criterion (HIC) scores. Promotes
closed-loop recycling of post-industrial scrap. Contains at least 60% and up to 100%
recycled pre-consumer raw material. The use of pre-consumer recycled material can
contribute to LEED® certification points.
3. Covering - 18 oz. laminated leather grain embossed vinyl BACshield: Anti-Mildew,
Anti-Fungus, Antimicrobial, Antibacterial treated, UV treated. Passes ASTM E84 (Class A),
NFPA-701 & Cal 117 FR tests C.P.S.I.A. Certified.
Impact Series is an indoor stationary wall padding panel, intended for direct wall
connection. The panel is a wood backed pad of 2 inch Impact rated polyethylene foam
bonded to the face using a two-part adhesion process. The foam and wood are
covered front and sides then firmly stapled onto the back using Class A PVC Vinyl.
Components
1. Backer Board: Not less than 7/16-inch- (11-mm-) SFI® Certified Responsible
Urea Formaldehyde Free recycled composite wood backer board. This portion of
the product contributes toward satisfying Credit IEQ 4.4 under LEED.
2. Foam Layer – 2 inch polyethylene foam meets standards for ASTM 2440. The test method
quantifies impact in terms of g-max and Head Injury Criterion (HIC) scores. Promotes
closed-loop recycling of post-industrial scrap. Contains at least 60% and up to 100%
recycled pre-consumer raw material. The use of pre-consumer recycled material can
contribute to LEED® certification points.
3. Covering - 18 oz. laminated leather grain embossed vinyl BACshield: Anti-Mildew,
Anti-Fungus, Antimicrobial, Antibacterial treated, UV treated. Passes ASTM E84 (Class A),
NFPA-701 & Cal 117 FR tests C.P.S.I.A. Certified.
STANDARD MANUFACTURING
Typical panel to be manufactured at 24 inch width by specified height.
All columns and corners to be pre-fabricated to fit field condition
INSTALLATION
1. 1 inch Nail Margin top and bottom along width edge attached directly to wall using
appropriate hardware for wall type. Refer to ASTM standards for height above finished
floor. 4 inch AFF to bottom of foam current.
Typical panel to be manufactured at 24 inch width by specified height.
All columns and corners to be pre-fabricated to fit field condition
INSTALLATION
1. 1 inch Nail Margin top and bottom along width edge attached directly to wall using
appropriate hardware for wall type. Refer to ASTM standards for height above finished
floor. 4 inch AFF to bottom of foam current.
Shipping
Ships via freight delivery shrink wrapped on pallets.
This Product Ships Freight Only.
Please review our shipping disclaimer.
WARNING: This product can expose you to chemicals including Lead and/or Phthalates, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
ANSWERS
SPECIFICATIONS
SKU# | SPad-2x7WBZ-Clip |
In Stock | Yes |
Product Type | Mat |
Material Type | Vinyl covered Foam |
Product Edging | Straight |
Thickness | 2 inch |
Width | 2.00 feet |
Length | 7.00 feet |
SF per Item | 12.00 |
Weight | 30.00 lbs |
Packaging | Cartons |
Non Absorbent | Yes |
Special Adhesives | No |
Interlock Loss | 0.00 feet |
Interlocking Connections | No |
Made In | USA |
Surface Finish | Smooth, Flat |
Surface Design | Solid color |

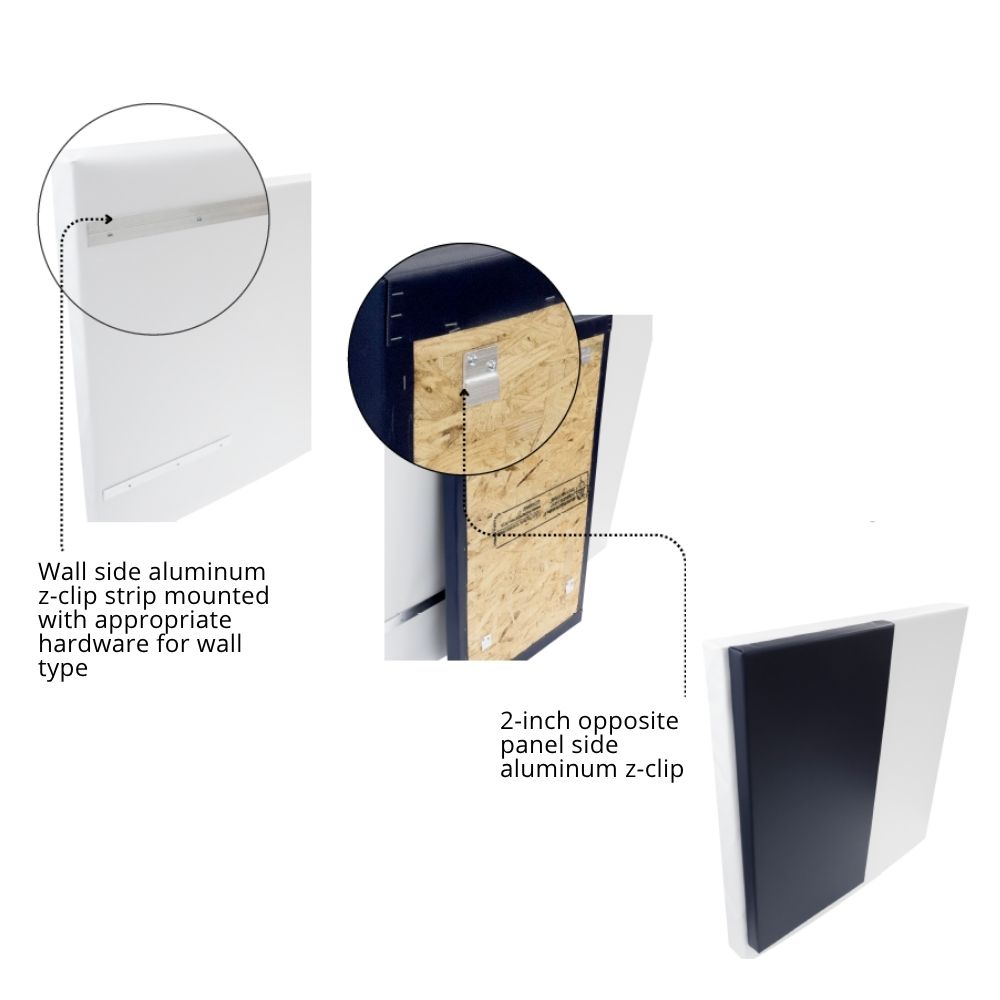

Installation Method | Direct screw on or Z-Clip |
UV Treated | Yes |
Reversible | No |
Border Strips Included | No |
