Safety Wall Pad 2x7 Ft x 2 Inch WBLipTB ASTM

red safety wall pads installed wall to wall in gymnasium
/images/wall-pads/safety-wall-pads-solid-red-basketball-court.jpg
Safety Wall Pad 2x7 Ft x 2 Inch WBLipTB ASTM full angle.
/images/wall-pads/safety-wall-pad-2x6ftx2inch-wbliptb-astm8.jpg

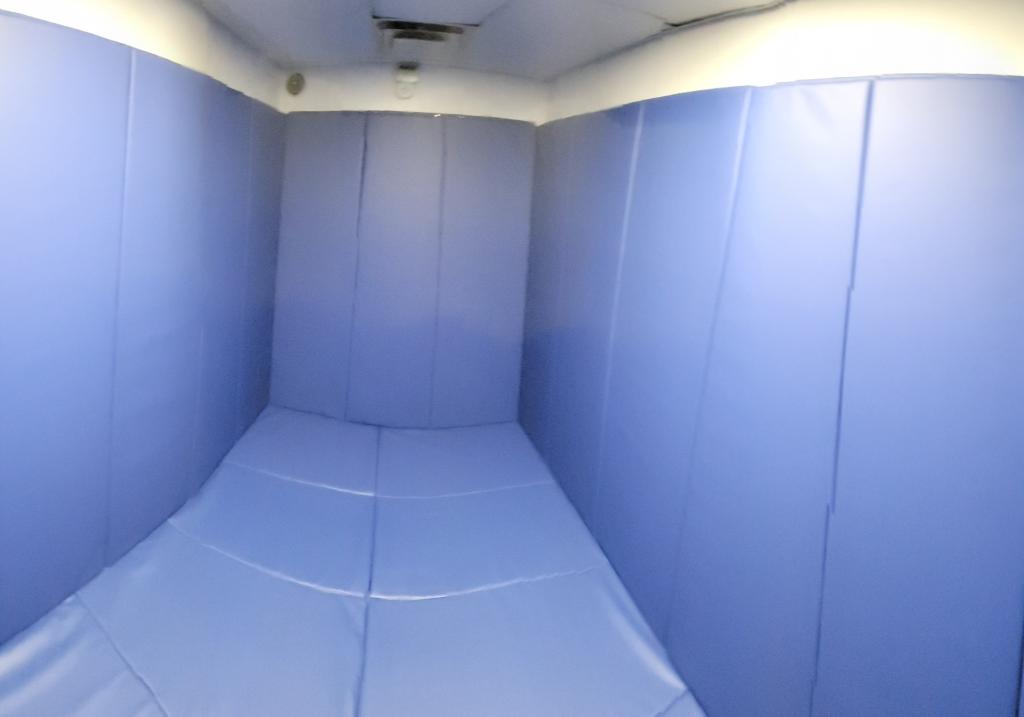

Calm Room with White and Blue Safety Wall Pad 2x7 Ft x 2 Inch WBLipTB ASTM
/images/wall-pads/spi-blue-white-calm-room-pads.jpg
Safety Wall Pad 2x7 Ft x 2 Inch WBLipTB ASTM White Wall Pads on Door in Calm Room
/images/wall-pads/white-calm-room-pads.jpg
Safety Wall Pad 2x7 Ft x 2 Inch WBLipTB ASTM thickness.
/images/wall-pads/safety-wall-pad-2x6ftx2inch-wbliptb-astm3.jpg
Safety Wall Pad 2x7 Ft x 2 Inch WBLipTB ASTM top lip.
/images/wall-pads/safety-wall-pad-2x6ftx2inch-wbliptb-astm5.jpg
Safety Wall Pad 2x7 Ft x 2 Inch WBLipTB ASTM top lip angle.
/images/wall-pads/safety-wall-pad-2x6ftx2inch-wbliptb-astm6.jpg
Safety Wall Pad 2x7 Ft x 2 Inch WBLipTB ASTM furing strip.
/images/wall-pads/safety-wall-pad-2x6ftx2inch-wbliptb-astm7.jpg
Safety Wall Pad 2x7 Ft x 2 Inch WBLipTB ASTM 3 pads.
/images/wall-pads/safety-wall-pad-2x6ftx2inch-wbliptb-astm4.jpg
Safety Wall Pad 2x7 Ft x 2 Inch WBLipTB ASTM corner.
/images/wall-pads/safety-wall-pad-2x6ftx2inch-wbliptb-astm1.jpg
Safety Wall Pad 2x7 Ft x 2 Inch WBLipTB ASTM backside wood.
/images/wall-pads/safety-wall-pad-2x6ftx2inch-wbliptb-astm2.jpg
gray wall pads with red B1G logo
/images/wall-pads/safety-wall-pad-big-10-logo.jpg
Safety Wall Pad infographic showing foam, vinyl, and wood back
/images/wall-pads/safety-impact-wall-pad-infographic.jpg
Star Rating Image Rate product
$128.64/each
Save 4%
$9.19/sqft
Reg: $135.41/each
Handling Time Estimate: 3-4 Weeks on Average
  • Certified OSB
  • Impact rated polyethylene foam
  • Class A fired PVC Vinyl
  • See More Details
  • Royal Blue
  • Brown
  • Navy Blue
  • Pool Blue
  • Black
  • Purple
  • Forest Green
  • Pink
  • Gray
  • Yellow
  • Orange
  • Red
  • Maroon
  • Camel
  • White
  • Dark Gray
  • Custom
  • Carolina Blue
  • Kelly Green
  • Lime Green

Please select a swatch from above

Request Sales Quote
Please Call for Sample Options
  1. Certified OSB
  2. Impact rated polyethylene foam
  3. Class A fired PVC Vinyl
  4. 2 inch thick foam
  5. 18 oz vinyl covering
  6. LEED certification
  7. Contains at least 60% recycled pre-consumer raw material
  8. Anti-Mildew, Anti-Fungus, Antimicrobial, Antibacterial treated

Gym Wall Pads, Basketball Court Walls, School Wall Pads, Wrestling Rooms, Martial Arts, Combat Training, Safe Rooms

Safety Wall Pad 2x7 Ft x 2 Inch WBLipTB ASTM, Class A PVC vinyl 18 oz

Impact wall pads is an indoor stationary , intended for direct wall connection.

Safety Wall Pad 2x7 Ft x 2 Inch WBLipTB ASTM is an indoor fixed wall padding panel. Designed for direct wall attachment. This style panel is a wood backed pad with 2” Impact rated polyethylene foam laminated to the face using a two-part adhesion process. This combination of foam and wood is wrapped front and sides and securely stapled onto back using Class “A” PVC Vinyl.

Components


  1. Backing - 7/16” Georgia Pacific Blue Ribbon® oriented strand board (OSB); Third-party certified to the Sustainable Forestry Initiative® procurement standard, Exposure 1 bond durability. Contains no added urea formaldehyde resins.
    Georgia-Pacific building products can contribute to LEED® certification points.

  2. Foam Layer - 2” polyethylene foam meets standards for ASTM 2440. The test method quantifies impact in terms of g-max and Head Injury Criterion (HIC) scores.

    The foam layer contains at least 60% and up to 100% recycled pre-consumer raw material which promotes close-loop recycling of post-industrial scrap.
    The use of pre-consumer recycled material can contribute to LEED® certification points.

  3. Covering - 18.5 oz. coated smooth matte vinyl.
    BACshield: Anti-Mildew, Anti-Fungus, Antimicrobial, Antibacterial treated, UV treated.
    Passes NFPA-701, CSFM-19, and ASTM E-84 Class A fire retardant compliant
This product has been tested in accordance with CDPH 01350 v1.2 VOC emissions evaluation requirements and qualifies for the LEEDv4.1 EQ credit: Low-emitting materials

Installation of WBLipTB Wall Pads


1” Nail Margin top and bottom along width edge attached directly to wall using appropriate hardware for wall type. Refer to ASTM standards for height above finished floor. 4” AFF to bottom of foam current.


Wall pads are available in custom sizes. Please call to order.

Shipping

Ships via freight delivery shrink wrapped on pallets.

This Product Ships Freight Only.
Please review our shipping disclaimer.

WARNING: This product can expose you to chemicals including Lead and/or Phthalates, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SKU# SPad-2x7WBLPTB
In Stock Yes
Product Type Mat
Material Type Vinyl covered Foam
Product Edging Straight
Thickness 2 inch
Width 2.00 feet
Length 7.00 feet
SF per Item 14.00
Weight 30.00 lbs
Packaging Shrink Wrapped on Pallets
Non Absorbent No
Special Adhesives No
Interlock Loss 0.00 feet
Interlocking Connections No
Made In USA
Surface Finish Smooth, Flat
Surface Design Solid color
Installation Method Direct screw on or Z-Clip
UV Treated Yes
Reversible No
Border Strips Included No
LEED Points Yes

1 star ratings

5 star
0%
4 star
100%
3 star
0%
2 star
0%
1 star
0%

Customer Rating: 4 Stars - Safety Wall Pad 2x7 Ft x 2 Inch WBLipTB ASTM


Great product with poor installation instructions.
Following the video that suggests using a 1x2 furring strips to anchor at the top and the bottom. Problem is that this leaves the mat unsupported from behind. Means lots of flexing and potentially warping over time. We addressed this by taking the product down and adding two additional ''support rows'' of furring strips behind at the 2/3 & 1/3 height respectively.
Would have been an easier install if that was mentioned in the video. Something to adjust for your future customers. Or use stronger wood backing to support the length of the 7' panel.
