SupraTile T-Joint Coin Black/Grays 4.5 mm x 20x20 Inches Case of 12

SupraTile 4.5MM T-JOINT 20.5x20.5 in Coin Blk/Gry.
SupraTile 4.5 mm T-Joint Coin Black / Grays full
SupraTile 4.5 mm T-Joint Coin Black / Grays coin view
SupraTile 4.5 mm T-Joint Coin Black / Grays edge
SupraTile 4.5 mm T-Joint Coin Black / Grays texture
SupraTile 4.5 mm T-Joint Coin Black / Grays coin top
SupraTile 4.5 mm T-Joint Coin Black / Grays backing
SupraTile 4.5 mm T-Joint Coin Black / Grays diagonal full
SupraTile 4.5 mm T-Joint Coin Black / Grays top corner view
Star Rating Image (1 Answered Questions) Rate product
Save 19%
Reg: $164.16/carton
Handling Time Estimate: 1-3 Working Days
  • Quick and easy installation
  • Resistant to oils, chemicals, mold and mildew
  • Excellent resistance to impact, moisture and abrasion
  • See More Details
  • Black
  • Dark Gray
  • Light Gray

Please select a swatch from above

Request Sales Quote
Please Call for Sample Options

Similar Products

  1. Quick and easy installation
  2. Resistant to oils, chemicals, mold and mildew
  3. Excellent resistance to impact, moisture and abrasion
  4. Warm and comfortable underfoot
  5. Can be installed over old uneven, or contaminated sub-floors
  6. Superior sound absorption, integrated ramp edging for most styles
  7. Easy to remove and relay, protective topcoats available
  8. Made from 80% recycled content

Basement Flooring, Warehouse Floors, Industrial Flooring, Garage Floors, Aircraft Hangar Flooring

SupraTile T-Joint Coin Black/Grays 4.5 mm x 20x20 Inches - Case of 12 tiles

SupraTile T-Joint Coin Black/Grays 4.5 mm x 20x20 Inches Case of 12 with T-Joint interlocks has the high performance needed for thousands of applications. This can be used for warehouse and garage floors is constructed of solid PVC polymer and is approximately seven times thicker than a 100% solid epoxy floor, yet priced lower than most common installed epoxy floors. The SupraTile 4.5mm Series is the best choice and value for thousands of different uses, including airplane hangars.

PVC garage floor tiles from Greatmats deliver durability, traction, and style, making them a great choice for multiple use cases. After applying the proper sealant for use inside a garage setting where automobiles will be driving, these tiles will remain resistant to oils, chemicals, abrasion, and impact.

This flooring easily outperforms cheap flooring materials, carrying a 20-year manufacturer warranty. Yet, our heavy-duty PVC garage floor tiles have a reasonable price point, allowing customers to cover huge spaces for a low cost. This product is made from 80% recycled content.

Size and Shape Options

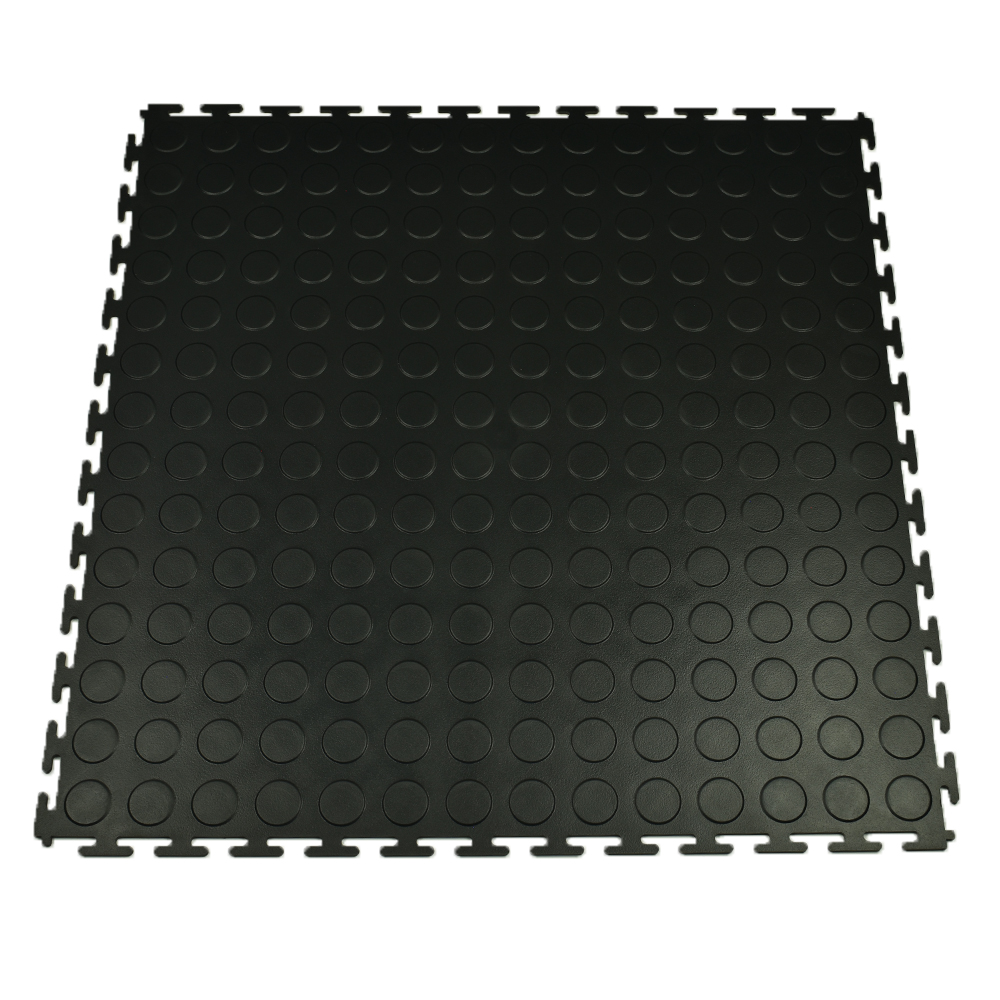

Each tile covers approximately 20 by 20 inches. Because of the T-shaped interlocking edge, however, customers will lose a bit of coverage space versus what they would expect to receive from tiles with flat edges. Each of these interlock PVC garage floor tiles covers about 2.75 square feet.

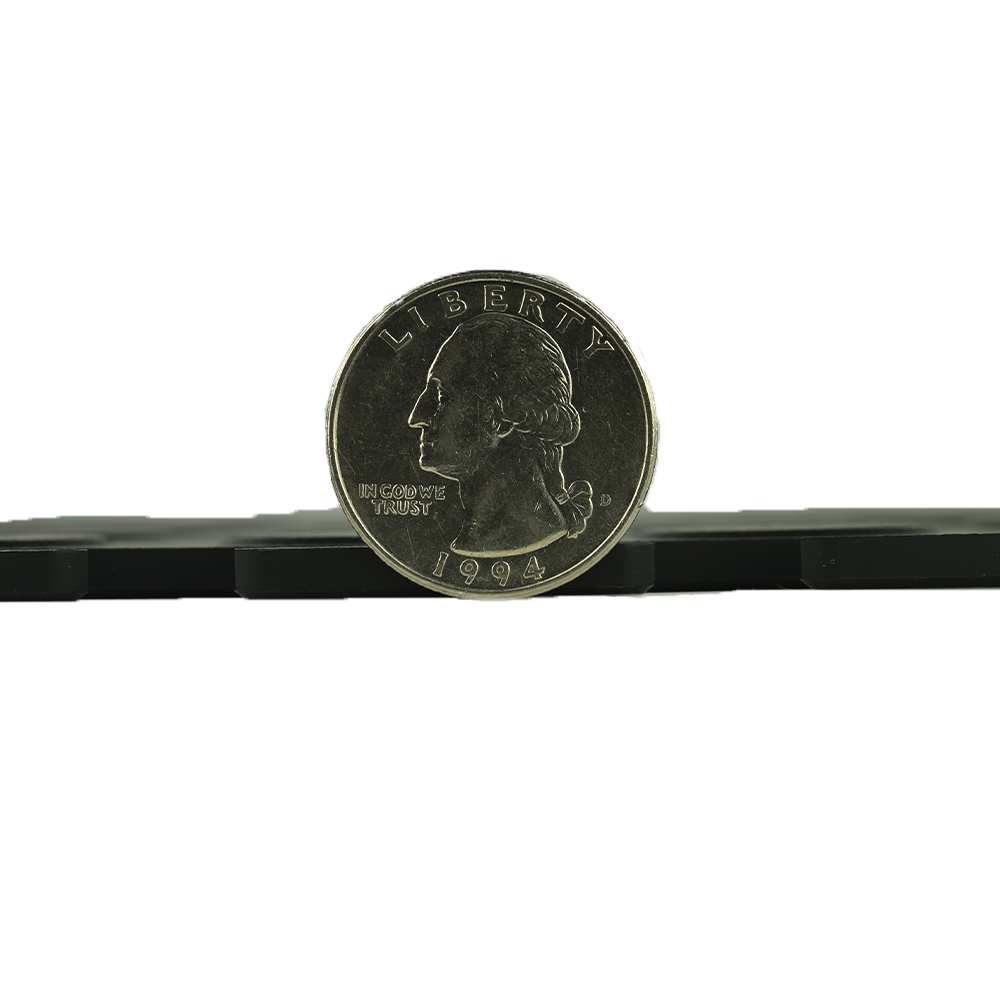

Each tile measures 4.5 mm in thickness (or about 0.177 inches). These tiles have a flexible design, which greatly simplifies the installation process. PVC plastic is not as rigid as some other types of flooring, yet its design is durable and long-lasting.

A single tile weighs only 3.4 pounds, which allows one person to carry multiple tiles to the installation location. It is easier to install these lightweight interlocking tiles than a heavier type of flooring.

Material Options

The PVC plastic, or polyvinyl chloride, in our garage tiles, offers a number of benefits. Specifically, our PVC garage floor tiles are tough enough to stand up to automobile traffic in a repair facility, in an auto dealer’s showroom, or in a residential garage.

Many people choose our PVC tiles in place of an epoxy flooring installation in a garage. Our tiles have a significantly thicker design than epoxies, yet they also cost quite a bit less than the installation of the epoxy coating.

PVC is a smart choice in areas where moisture will be a common problem, as it will not soak up water. It provides resistance to mold and mildew as well.

Additionally, PVC yields a greater level of sound absorption versus some other types of flooring, creating a more comfortable environment for those using the space.

Pattern and Texture Options

PVC garage floor tiles feel warm and comfortable underfoot, providing some cushioning properties versus a traditional cement floor.

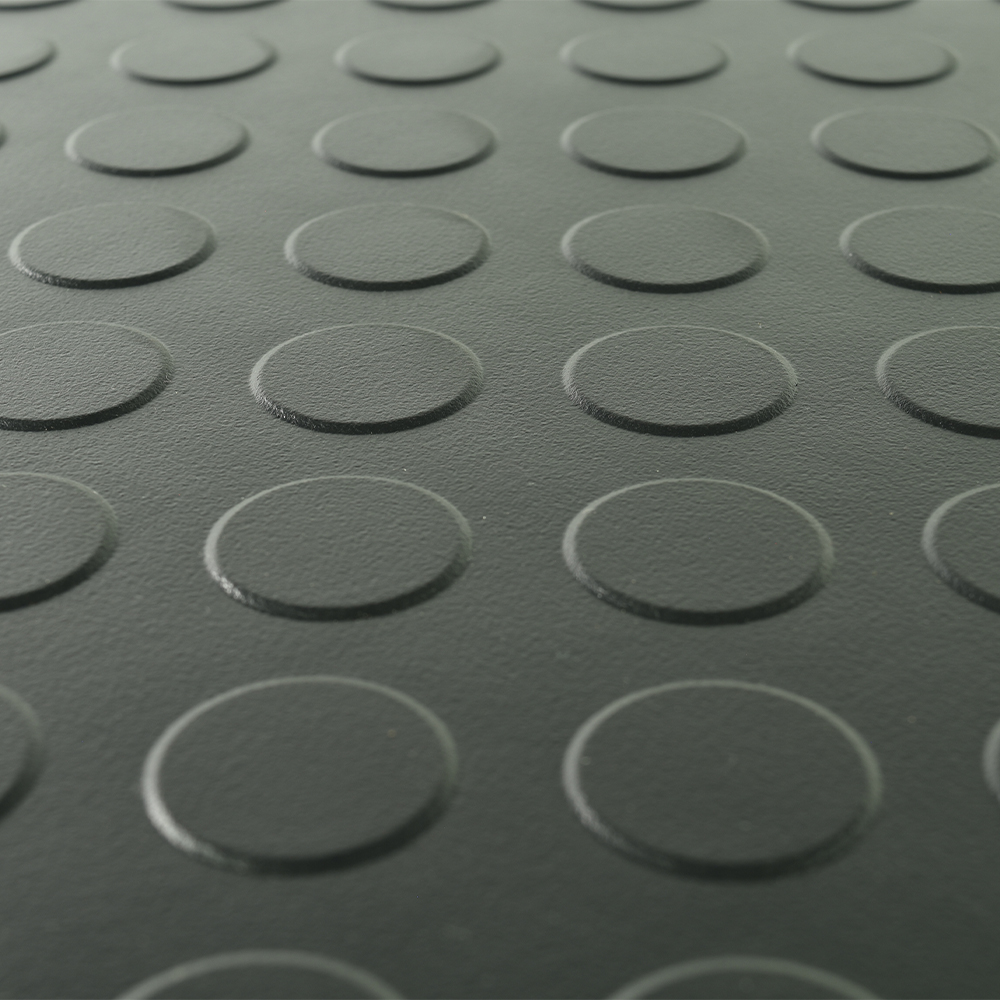

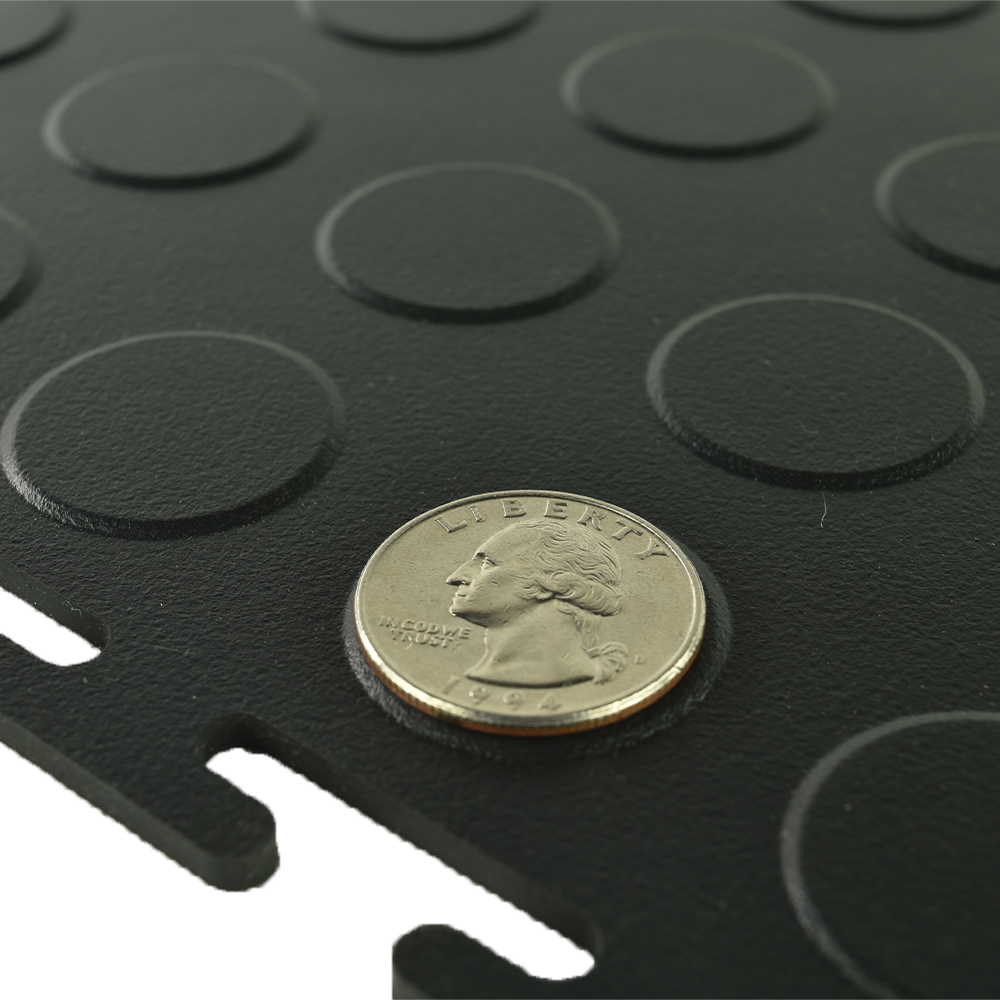

This particular design of SupraTile flooring will have a raised coin top pattern. This creates a non-skid style of flooring. Even when the flooring has moisture on the top of the tiles, customers have a far lower chance of slipping.

The manufacturer molded the coin top pattern into the surface of the tiles, so it will not break off, even when you subject the tiles to significant foot or vehicular traffic.

Customers can select among three solid colors in these tiles black, dark gray, and light gray. These darker, neutral colors will hide soils better than light colors, which means customers do not have to clean the floors as often.

Common Use Options

Placing our PVC tiles in areas that demand a significant level of performance from the flooring is the best option.

Automotive repair garages and car dealerships are frequent customers for our coin top flooring. It can stand up to rough conditions and moisture without showing damage. It does need a sealant applied to deliver the required level of performance in an automotive setting.

These tiles also work well for industrial flooring and warehouse flooring in a commercial location. The slight flexibility in the tiles allows customers to use them in areas where the subfloor has cracks or uneven spots without showing the imperfections.

If you want to use this flooring in areas with heavy vehicular traffic, such as large aircraft, trucks, forklifts, or hand/pallet jacks, we would suggest selecting a thicker style of PVC plastic garage tiles that we also offer for sale.

Installation Options

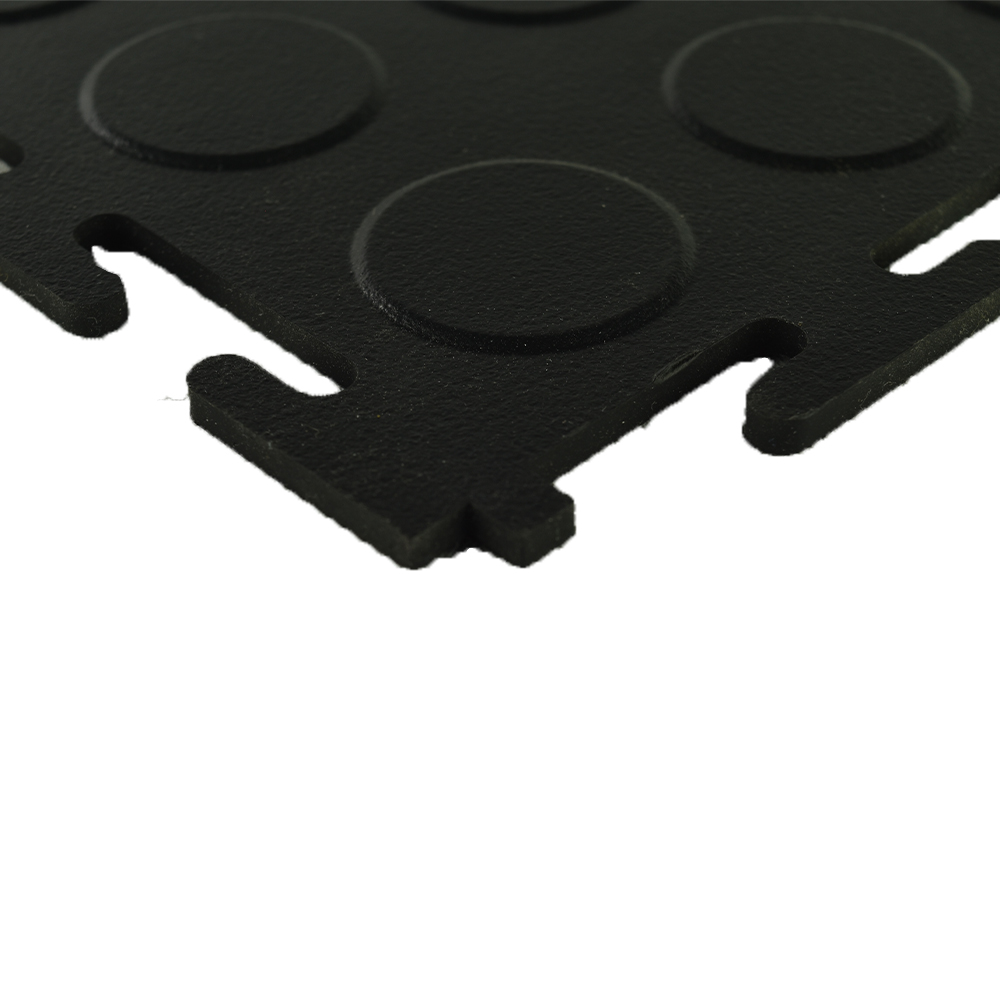

To install these tiles, simply line up the T-shaped tabs on one tile with the slots on the edges of an adjacent tile. Then press the edges together, creating a tight fit between the tiles.

Customers do not have to place glue on the interlocking edges to ensure a tight fit that will last, even when placed under stress. Customers can glue the tiles of the subfloor if desired, or they can use a dry lay installation, which allows them to disassemble the tiles later and return to the subfloor.

Cleaning and Maintenance Requirements

When installing these PVC garage floor tiles in locations that can collect significant soil with the possibility of staining, having an easy-to-clean style of floor is ideal. Our tiles represent a commercial-level style of flooring, so they can handle regular cleaning processes.

Start by using a push broom or a vacuum cleaner to remove dry debris from the surface of the PVC.

When cleaning the tiles more thoroughly, customers may use a common household floor cleaner diluted with water. Apply the cleaning solution with a mop or run an automatic floor cleaning machine over the top. Allow the space to air dry.


Clean with damp mop, hot water and common household floor cleaner.


Ships in cartons via ground service to your door, for larger orders product may ship freight delivery.

Please review our shipping disclaimer.

WARNING: This product can expose you to chemicals including Lead and/or Phthalates, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to

SKU# SUPRA4.5-TJ-20.5x20.5-COIN-BG
In Stock Yes
Product Type Tile
Material Type PVC Plastic
Product Edging Interlocking
Thickness 4.5 mm
Width 1.71 feet
Length 1.71 feet
SF per Item 33.35
Weight 40.80 lbs
Packaging Cartons
Number of Pieces per Package Type 12
Non Absorbent Yes
Special Adhesives No
Universal Interlock Yes
Interlock Loss 0.02 feet
Material Hardness Shore A 92
Interlocking Connections Yes
Made In Ireland
Surface Finish Coin top
Surface Design Solid color
Installation Method Interlocking, dry lay
UV Treated No
Reversible No
Border Strips Included No
Manufacturer Warranty 20 year

1 star ratings

5 star
4 star
3 star
2 star
1 star

Customer Rating: 5 Stars - SupraTile T-Joint Coin Black/Grays 4.5 mm x 20x20 Inches Case of 12

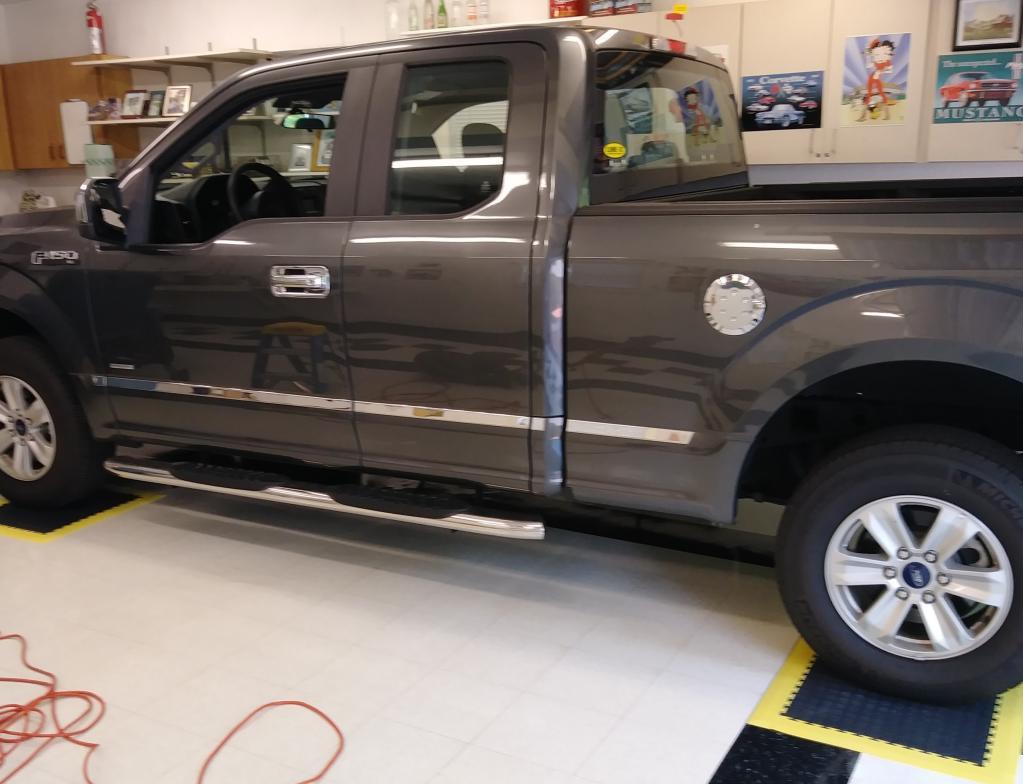

The Great Mats worked out really good. These will be most helpful keeping the tire treads off my garage floor. I plan to order another set. Thank you very much.


Product Questions:

Q: are the t joint tile 18x18
A: The specifications table for this product states 1.66 ft per tile square, which is almost 20 inches, so i would say 20x20 inches is the size for the T Joint tiles from this manufacturer.
