SupraTile Diamond Pattern Black / Grays 4.5 mm x 20x20 Inches

  • Quick and easy installation
  • Oil and chemical resistant, mold and mildew resistant
  • Excellent resistance to impact, moisture and abrasion
  • See More Details
Save 20%
Reg: $12.73/tile
Handling Time Estimate: 1-3 Working Days
  • SupraTile 4.5 mm Diamond Pattern Blk swatch. SupraTile 4.5 mm Diamond Pattern Blk swatch.
  • SupraTile 4.5 mm Diamond Pattern dark gray swatch. SupraTile 4.5 mm Diamond Pattern dark gray swatch.
    Dark Gray
  • SupraTile 4.5 mm Diamond Pattern light gray swatch. SupraTile 4.5 mm Diamond Pattern light gray swatch.
    Light Gray

How Much Flooring Do I Need?

Request Sales Quote
Please Call for Sample Options


How to Cut PVC Floor Tiles

  1. Quick and easy installation
  2. Oil and chemical resistant, mold and mildew resistant
  3. Excellent resistance to impact, moisture and abrasion
  4. Warm and comfortable underfoot
  5. Can be installed over old uneven, or contaminated sub-floors
  6. Superior sound absorption, integrated ramp edging for most styles
  7. Easy to remove and relay, protective topcoats available
  8. Made from 80% recycled content

Garage Floors, Industrial Flooring, Basement Flooring, Warehouse Floors, Airplane Hangars

SupraTile Diamond Pattern Black / Grays 4.5 mm x 20x20 Inches

For a high performance, economical for garage or warehouse flooring, select the SupraTile 4.5mm Diamond Series. The Supratile 4.5mm Diamond Series is our most economical floor tile, yet has the high performance needed for thousands of applications, including aircraft hangars. Solid PVC polymer construction is quiet and comfortable to walk on, not noisy like inexpensive polypropylene garage type tiles. Approximately seven times thicker than a 100% solid epoxy floor, yet priced lower than most common installed epoxy floors. The Supratile 4.5mm Series is the best choice and value for thousands of different uses.

Durability and value are desirable features to find in flooring, especially when the installation will take place in demanding locations. The SupraTile diamond plate floor tile from Greatmats is a popular choice for garage floors, as well as for basements, industrial locations, and warehouses.

At only 4.5 mm in thickness, this interlocking flooring has a highly competitive price point, yet it also carries a 20-year manufacturer warranty, ensuring that customers receive excellent value. This product is made from 80% recycled content.

Size and Shape Options

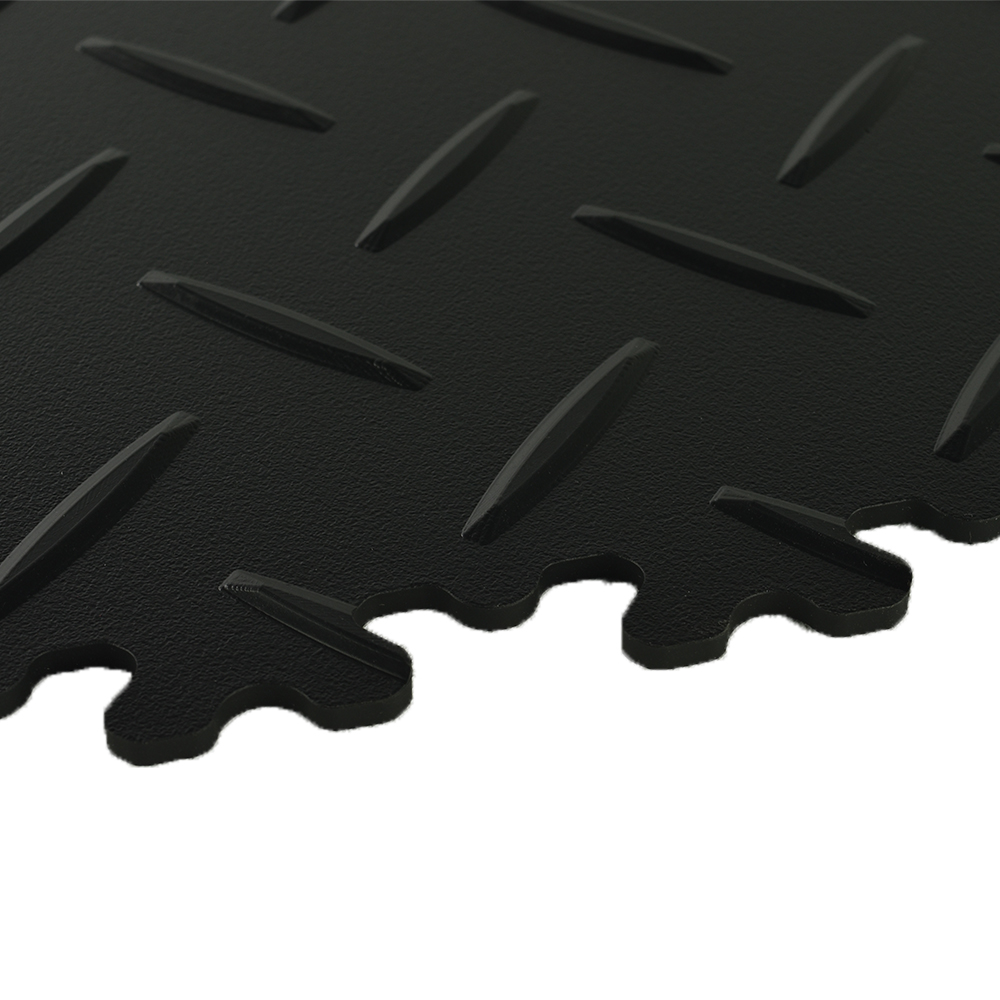

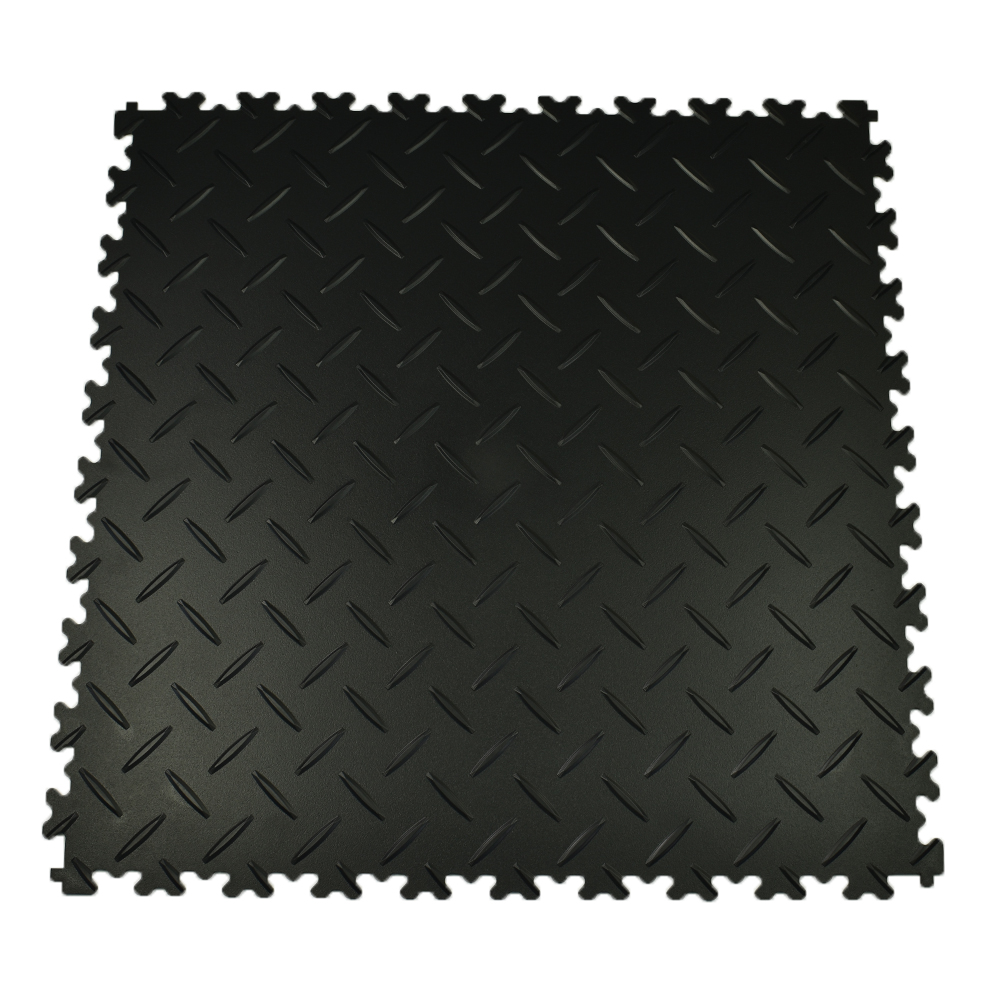

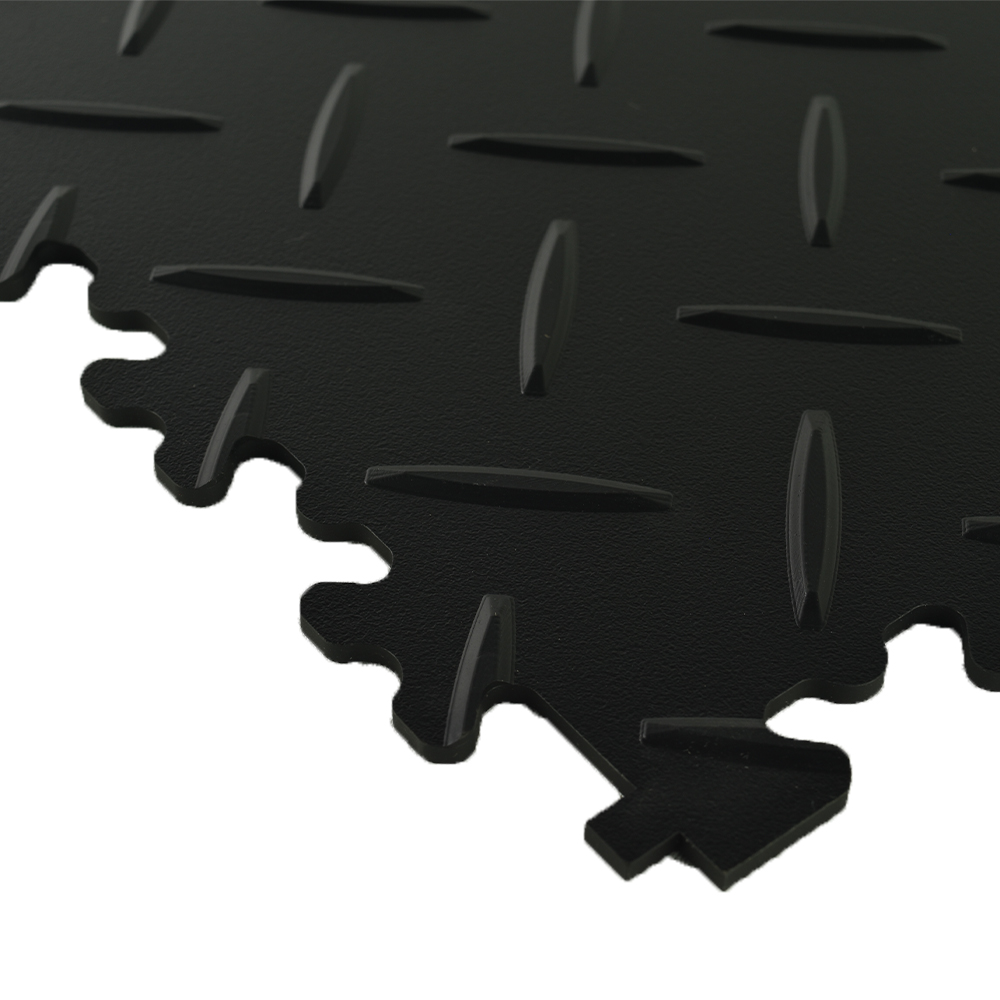

Each diamond plate floor tile has a roughly squarish shape. Because each tile makes use of a jigsaw puzzle-style edge, it is not a perfect square, though.
The jigsaw edge system simplifies installation, but it also affects the coverage area per diamond plate floor tile. Each tile has a rough measurement of 20x20 inches, but its actual measurements are about 19.75x19.75 inches, yielding a coverage area of about 2.7 square feet.

At 4.5 mm in thickness (about 0.177 inches), this is a thin and lightweight tile. An individual tile weighs only 3.2 pounds. Installers can carry several of these lightweight tiles to the installation area, which makes the work go faster versus trying to install heavier tiles.

Material Options

This diamond plate floor tile consists of PVC plastic. The polyvinyl chloride material has more flexibility than some other materials, providing a bit of comfort in an area where people will be standing and working or walking for several hours a day.

Unlike some other flooring materials, PVC’s vinyl top surface does not generate noise when people are walking over the top of it. These mats have the ability to support foot traffic as well as passenger car traffic in a garage.

PVC will last a long time while being easy to clean. PVC does not soak up water, so it is an ideal selection in areas where water and moisture may frequently appear. PVC remains resistant to impact marks and abrasions from rough treatment. Both commercial and residential locations can use PVC tiling successfully.

Pattern and Texture Options

One of the biggest benefits of our diamond plate floor tile is the extra traction it provides versus smooth flooring. These mats include a diamond-shaped pattern molded into the top layer of the PVC, providing traction in wet conditions.

The molded pattern does not extend a significant distance above the top of the tile’s surface, meaning it should not create a tripping or stumbling hazard for those using the floors.

The diamond tread also provides an eye-catching look, making these tiles suitable to use in almost any location in a home or business.

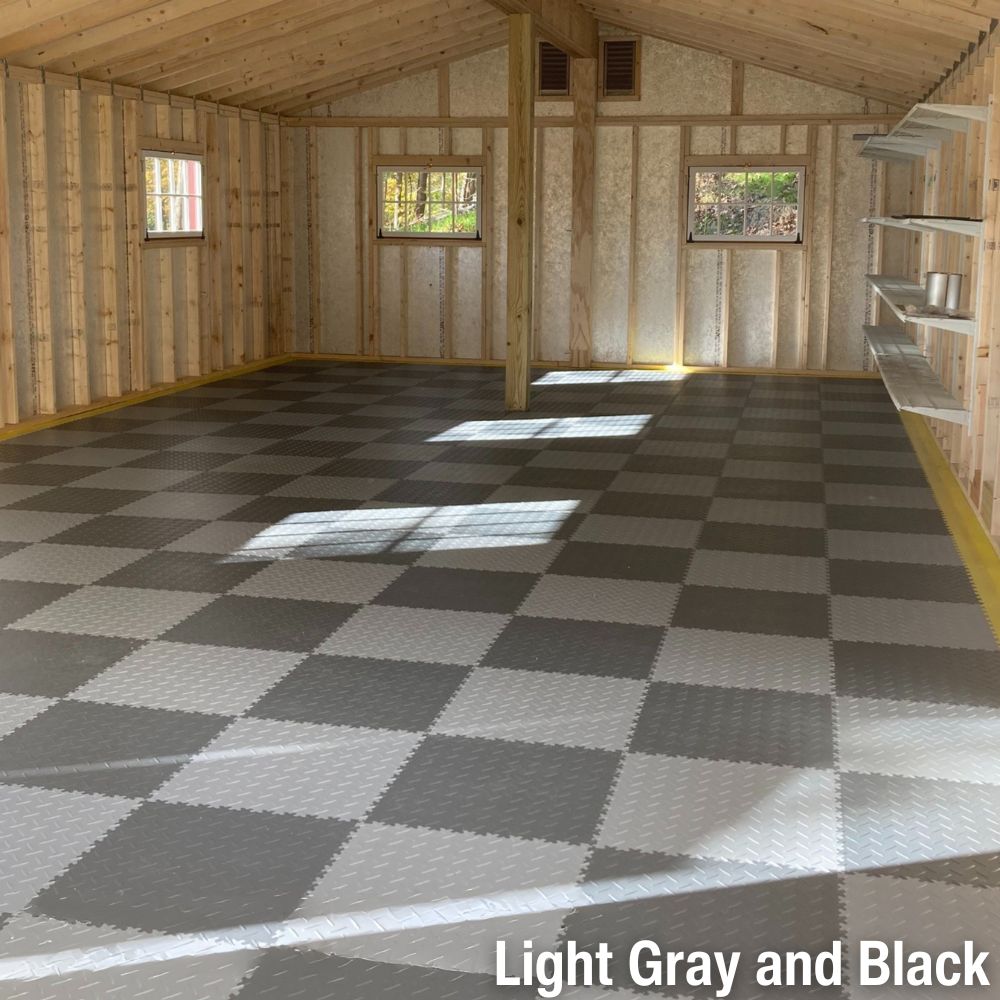

Customers can select among three solid color options black, dark gray, and light gray. Each color family uses the same interlocking edge, so installers can mix and match colors if desired. However, the jigsaw edge pattern will be clearly visible if switching colors.

Should customers need a different tread pattern (such as a coin top) or other colors, Greatmats offers many different options.

Common Use Options

Because of the lightweight nature of our diamond plate floor tile product, customers can install the tiles in a wide range of locations, including in vehicles, such as in a trailer. Rather than spending the money for a custom floor in a light aircraft, customers can easily install these tiles.

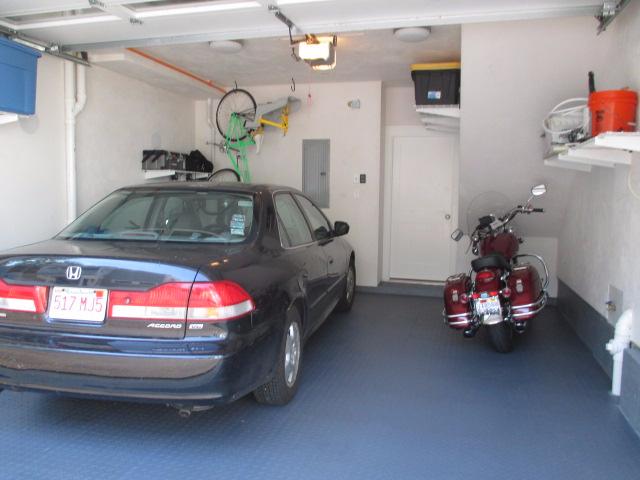

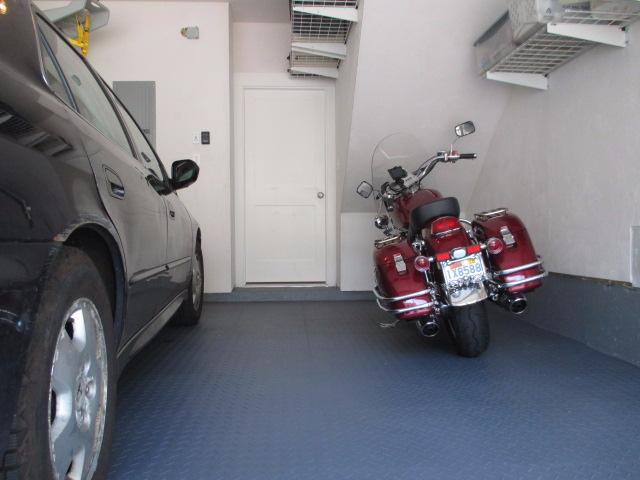

These tiles are tough enough to stand up to a variety of use cases in industrial or commercial locations. Customers can park passenger vehicles on them, and the PVC will not crack or collapse. (For those who need to support heavy trucks, forklifts, or large aircraft in a hangar, we would suggest one of our thicker PVC SupraTile options.)

In residential locations, homeowners may choose to install them in a basement or mudroom, where moisture can be a frequent problem. Some people prefer the look of these PVC tiles in a garage that sometimes contains parked cars and sometimes serves as a man cave.

Installation Options

Installation is an easy process with these interlocking tiles and will work as a DIY job. Just line up the tabs on one tile with the slots on an adjacent tile and press them together. Because the tiles are not thick, they fit together without much force required.

Installers do not need to add glue to the interlocking edges to ensure that the tiles hold together under the stress of people walking on them and vehicles driving on them.

Should you need to cut the tiles to create a straight edge to fit tightly against a wall, a utility knife can go through the thin material in very little time.

Cleaning and Maintenance Requirements

Cleaning PVC flooring tiles is an easy process. Just sweep or vacuum the tiles to remove dry debris.

To wash the tiles, you can use common household floor cleaners diluted with warm water. Apply the solution with a mop and allow the area to air dry.

In areas where a floor drain is available, customers can rinse these tiles with a power washer in a gentle setting or with a sprayer. PVC will not soak up water.


Clean with damp mop, hot water and common household floor cleaner.


Ships in cartons via ground service to your door, for larger orders product may ship freight delivery.

Please review our shipping disclaimer.

WARNING: This product can expose you to chemicals including Lead and/or Phthalates, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to

In Stock Yes
Product Type Tile
Material Type PVC Plastic
Product Edging Interlocking
Thickness 4.5 mm
Width 1.64 feet
Length 1.64 feet
SF per Item 2.70
Weight 3.20 lbs
Packaging Cartons
Number of Pieces per Package Type 12
Non Absorbent Yes
Special Adhesives No
Universal Interlock Yes
Interlock Loss 0.02 feet
Material Hardness Shore A 92
Interlocking Connections Yes
Made In Ireland
Surface Finish Diamond
Surface Design Solid Color
Installation Method Interlocking, dry lay
UV Treated No
Reversible No
Border Strips Included No
Manufacturer Warranty 20 year

Product Questions:

Q: I'm looking to protect the hardwood floor in a small workspace. What does the underside of the tile look like? Smooth or textured?
A: The underside of this tile has a waffle style texture. You can see the same underside texture on the Supratile Slate Tile page.
Q: Can cars be parked on these tiles without breakage or slippage?
A: The 4.5mm Series is perfect for garages, basements, and light commercial applications that see foot traffic or vehicle traffic from cars or SUV's or similar. Normally adhesive is not required. Exposure to large temperature swings and sunlight, turning tires on the tiles with tight maneuvers, and certain cold temperature applications may necessitate adhesive.
Q: Can you use a jack on this flooring?
A: We recommend at least a 6.5 mm thickness for use under jacks.
