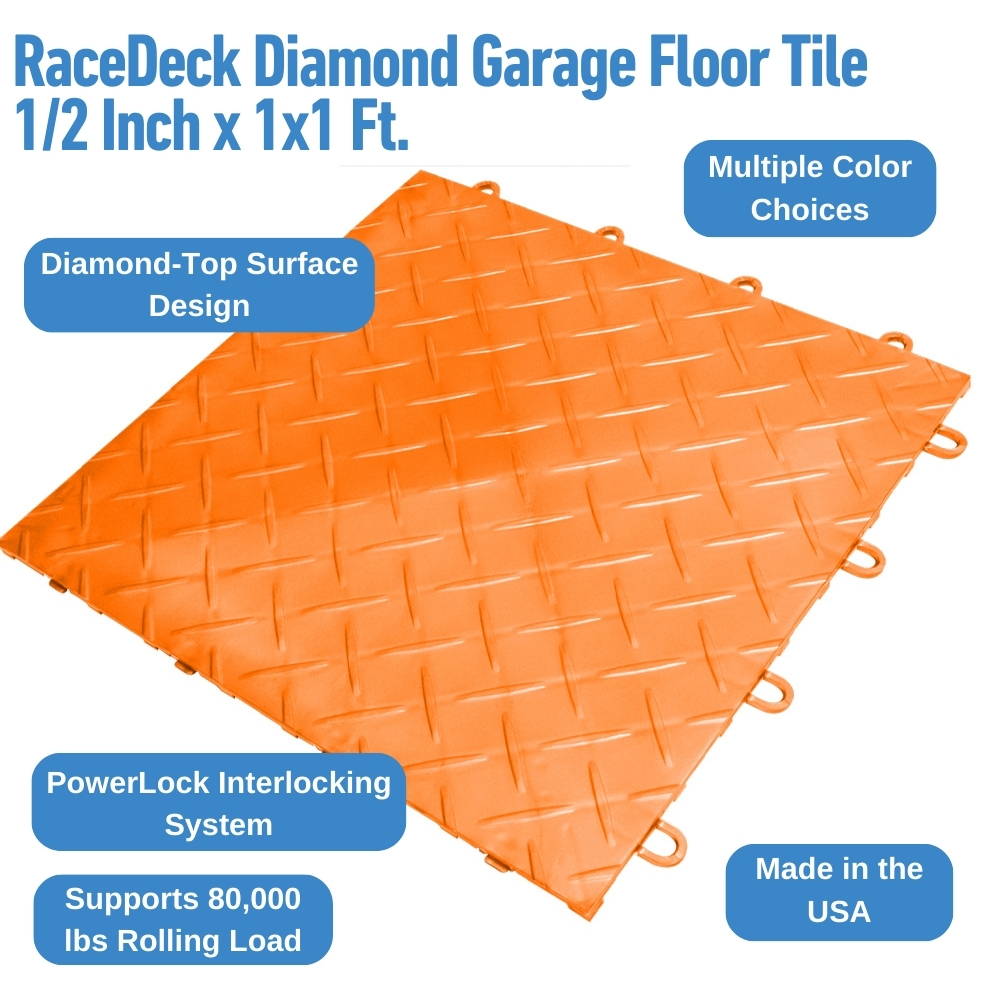

RaceDeck Diamond Garage Floor Tile 1/2 Inch x 1x1 Ft.
Be the first to review this product
$4.75/tile
$4.75/sqft
Handling Time Estimate: 1-3 Working Days
- Interlocking modular garage tile
- Fungus resistant
- PowerLock interlocking system
- See More Details
- Interlocking modular garage tile
- Fungus resistant
- PowerLock interlocking system
- Stain, peel, and chip resistant
- 80,000 pound rolling load tested

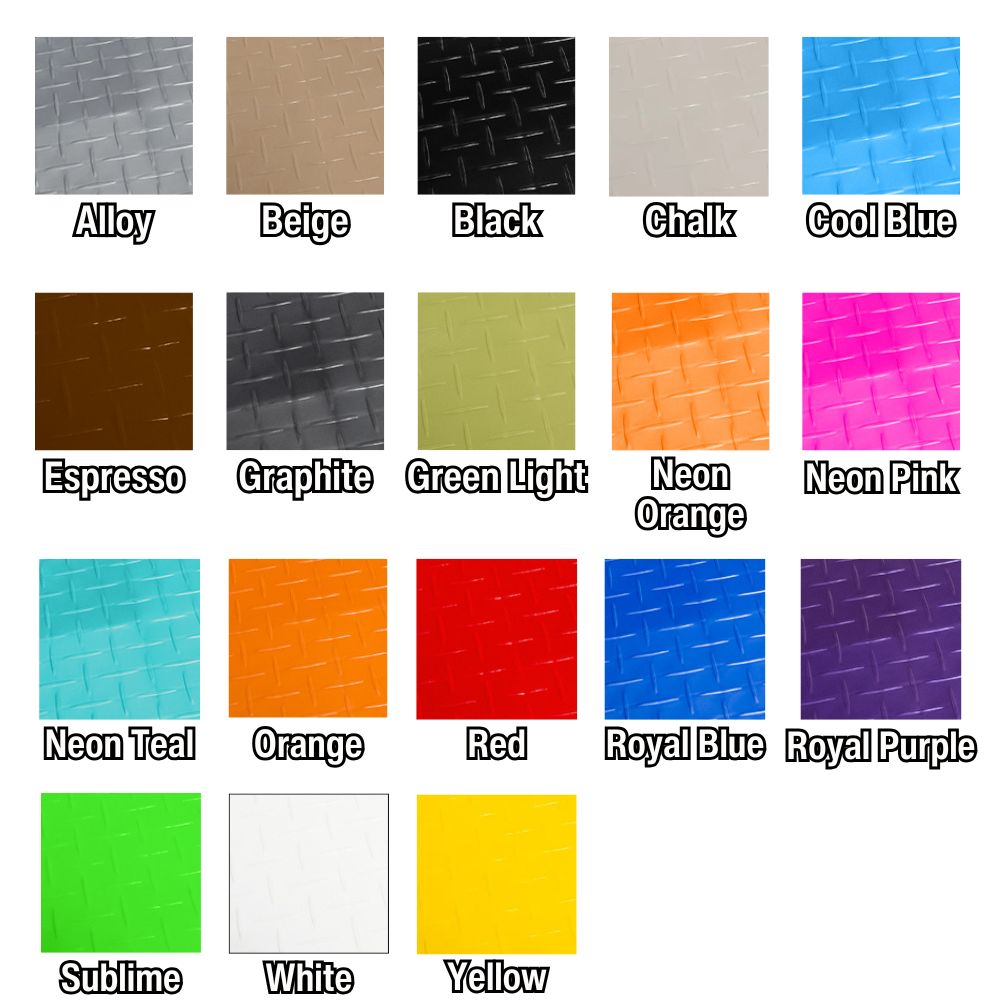

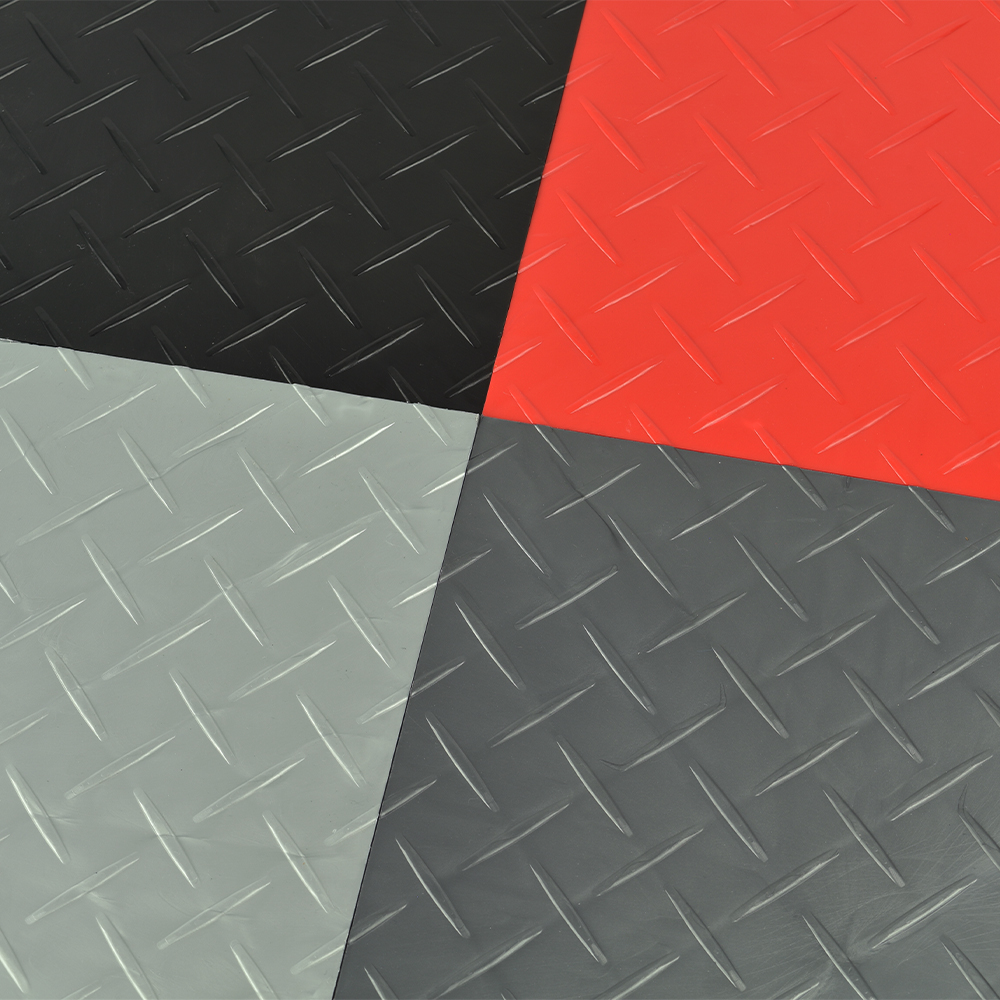

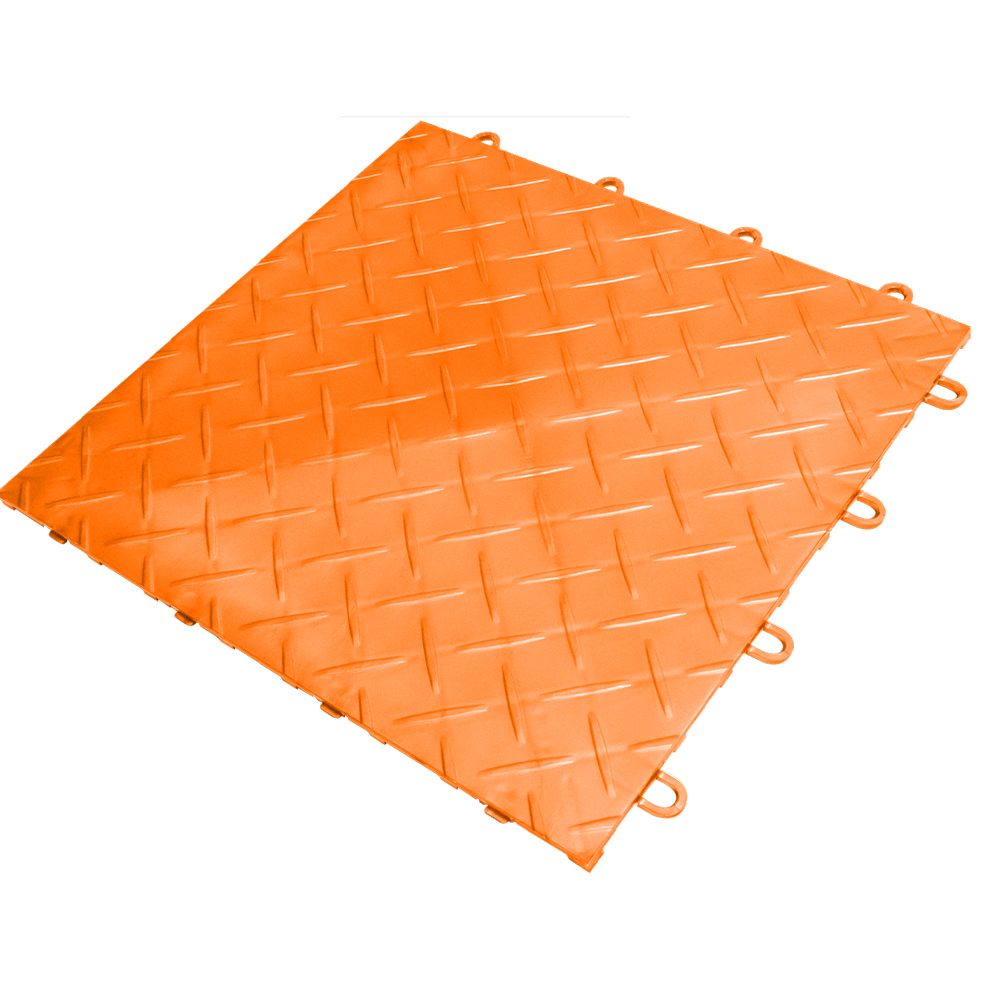

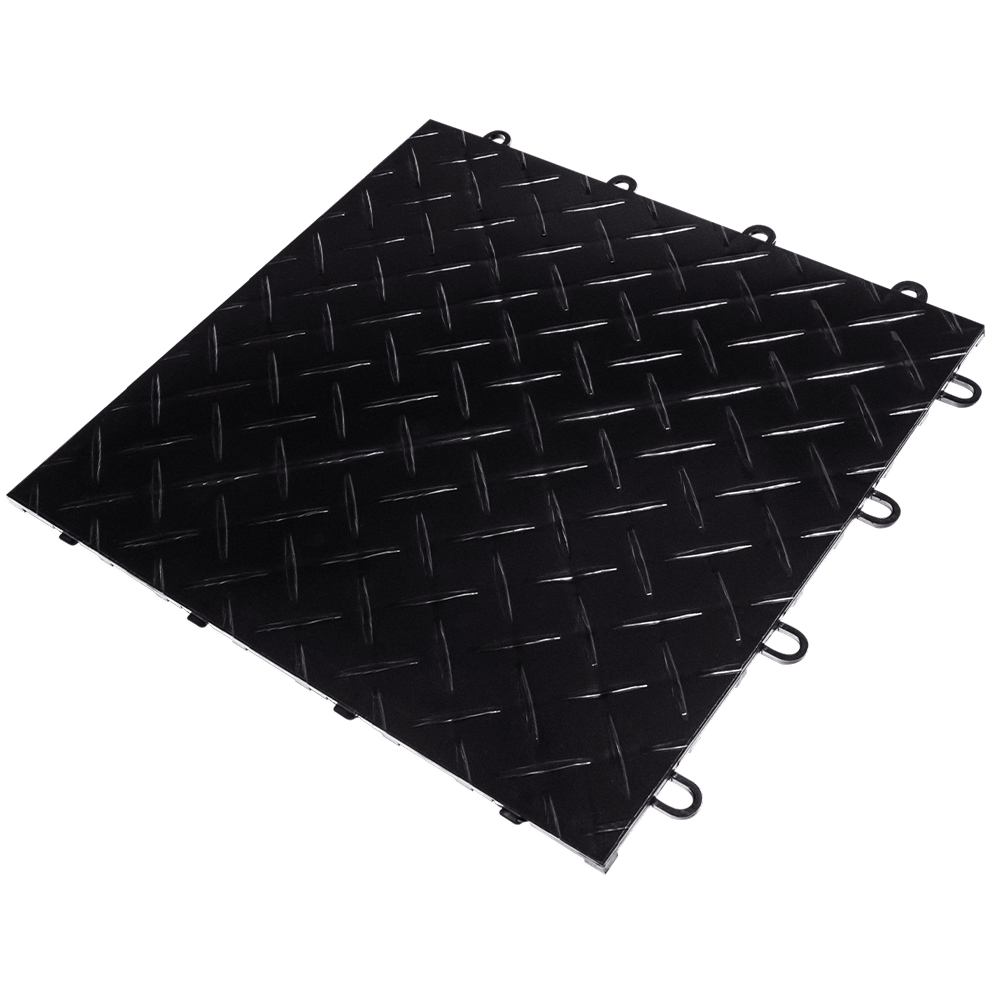

- Variety of colors
- Easy to clean and maintain
- Made in the USA
- Garage
- Shop
- Retail
- Show Room
- Displays
- Car Show

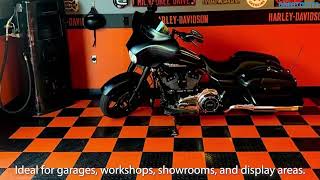

- Motorcycle

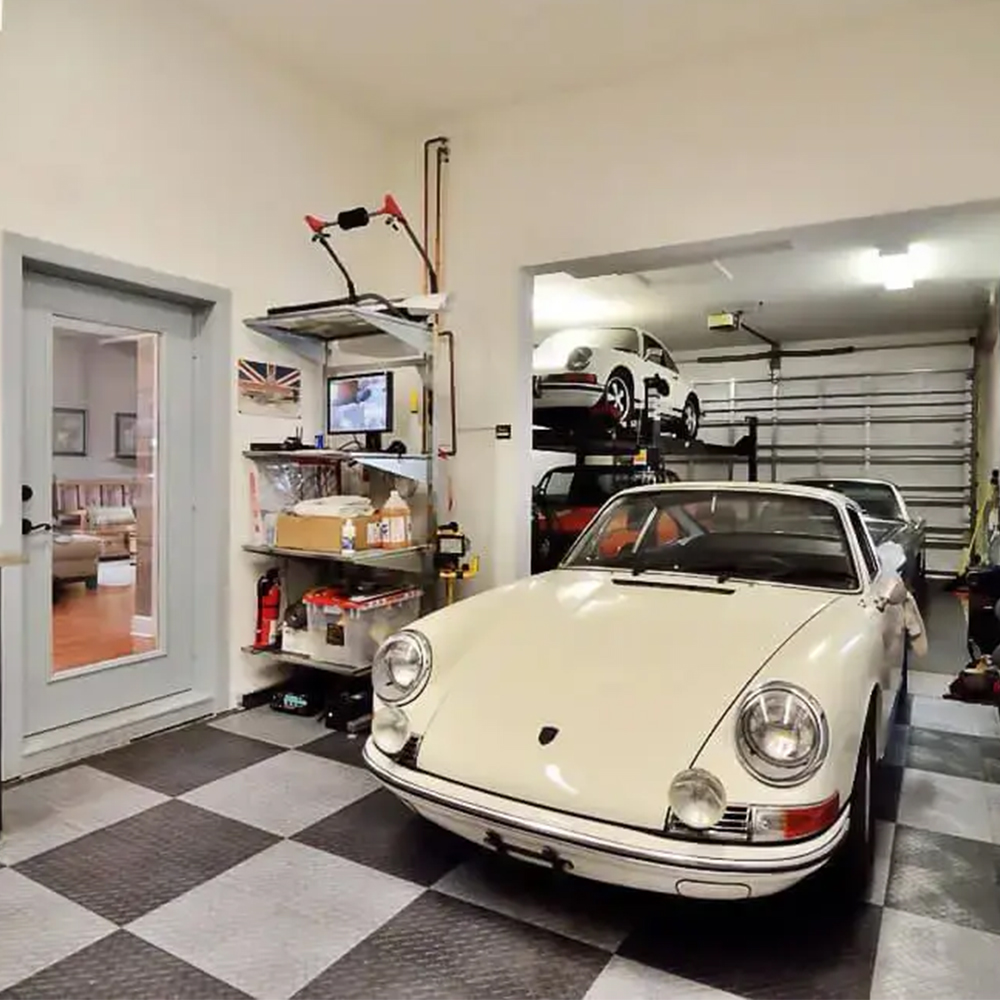

- Collector Car Storage
Diamond Plate Garage Flooring
This modular garage tile is one of the best garage tiles on the market and started that garage flooring tile craze. Designed to survive the wear and tear, it is also the garage flooring everyone in the neighborhood will want to have.

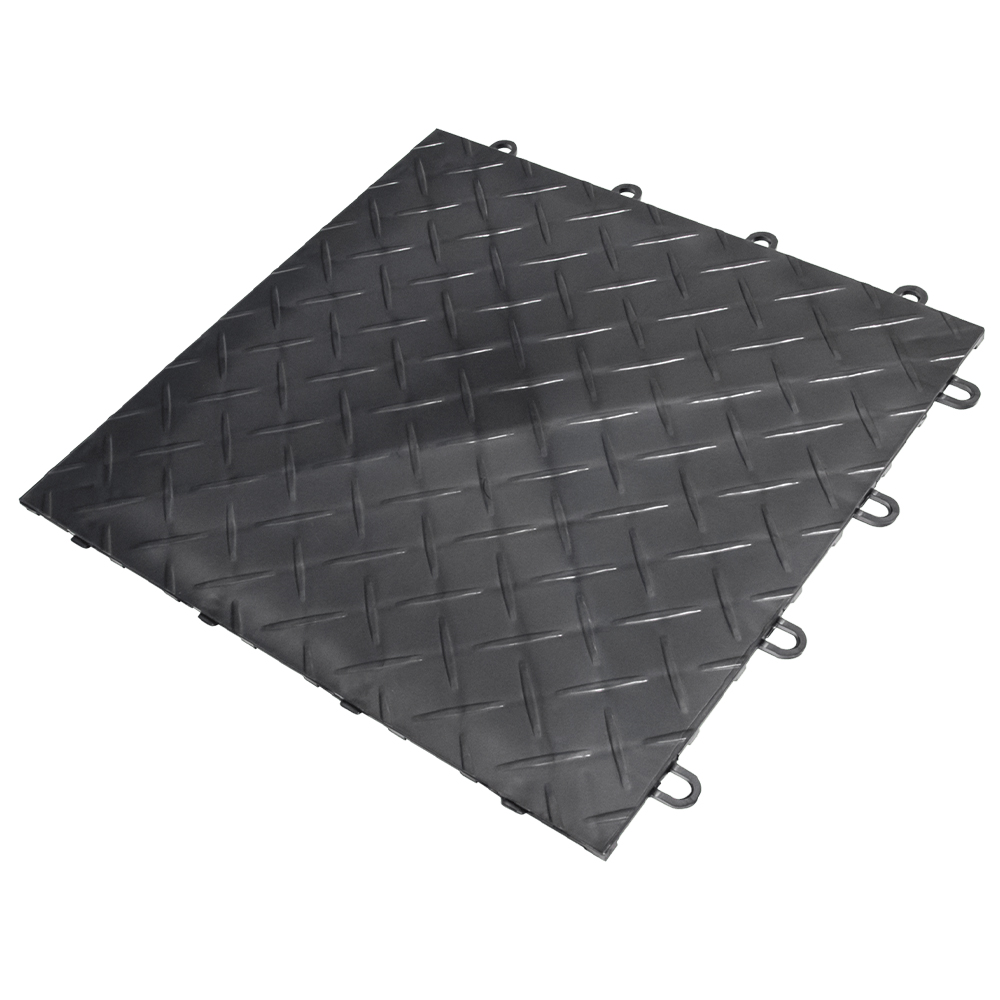

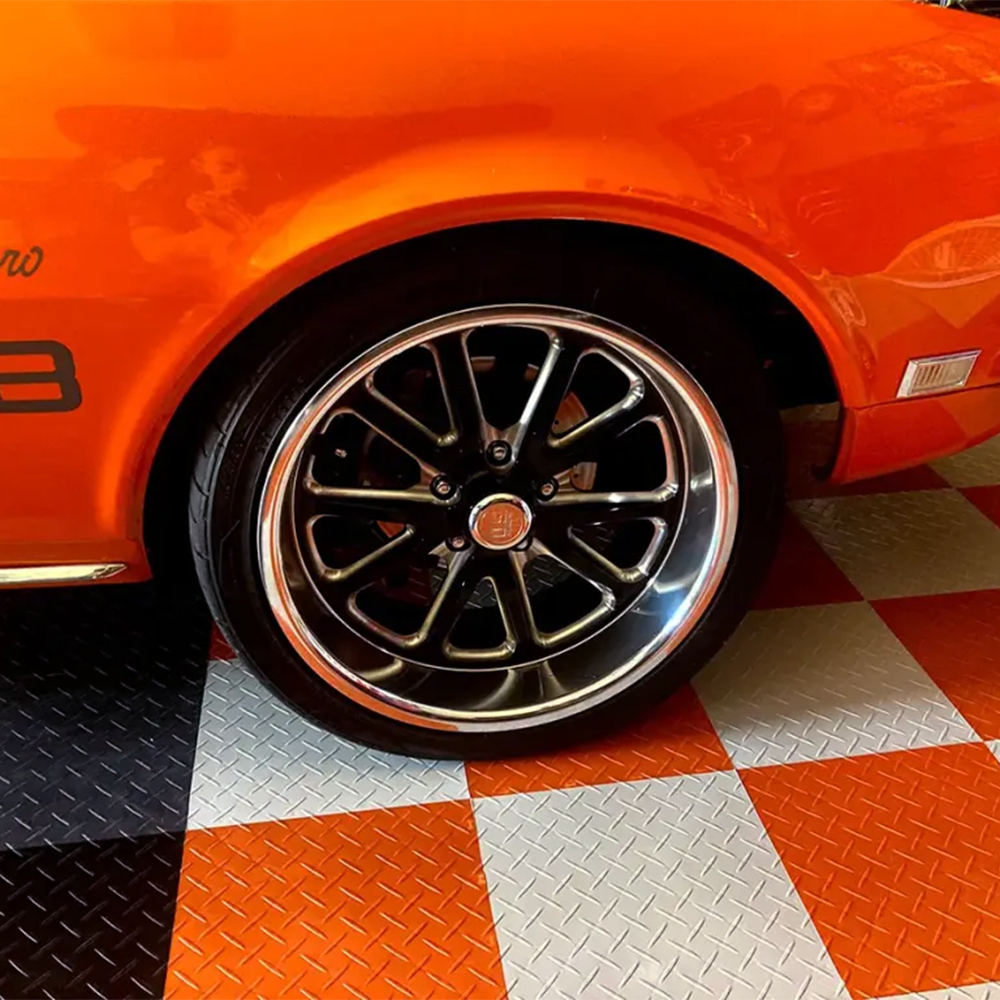

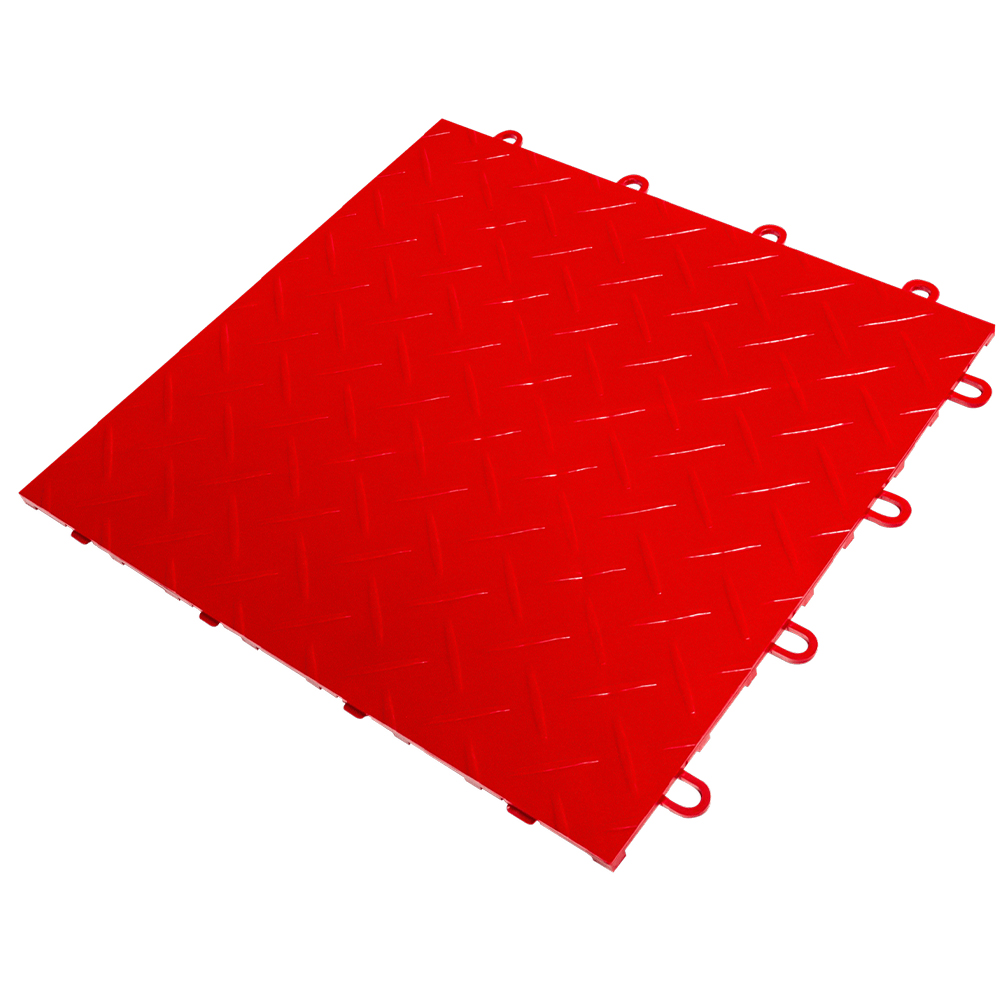

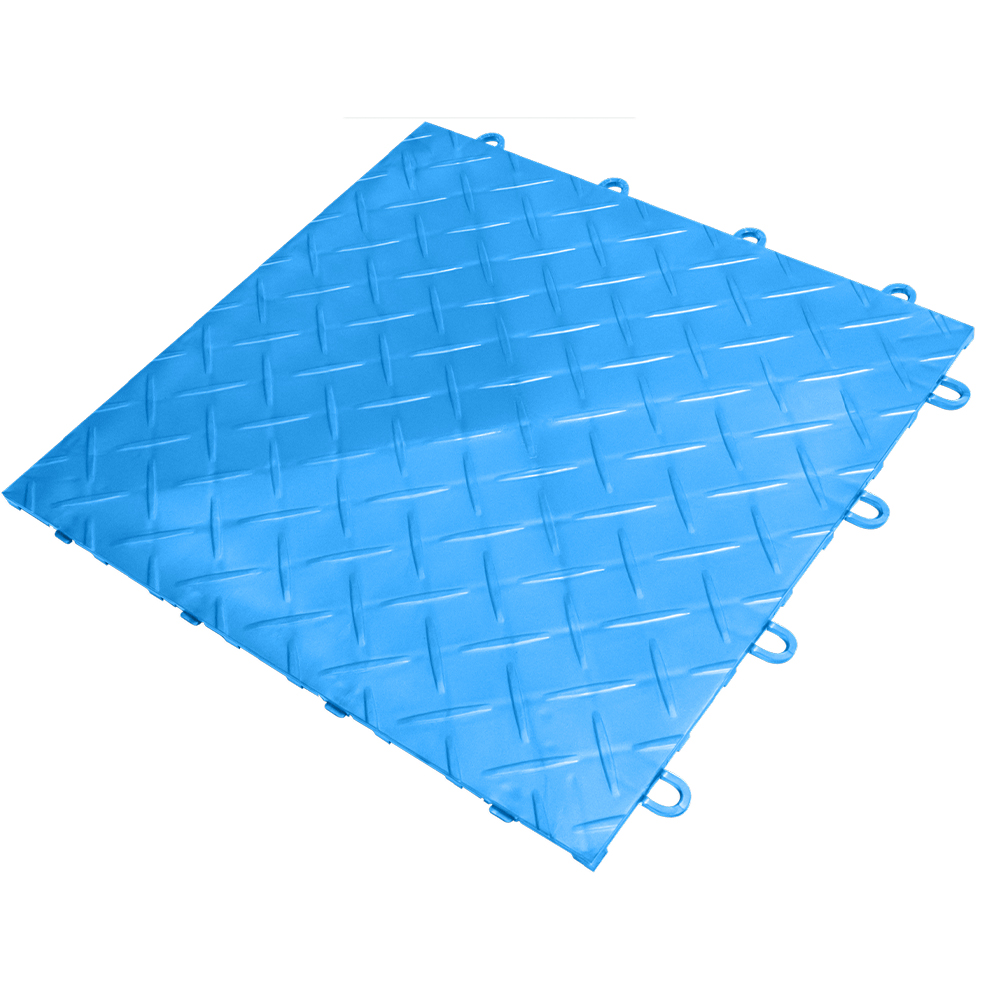

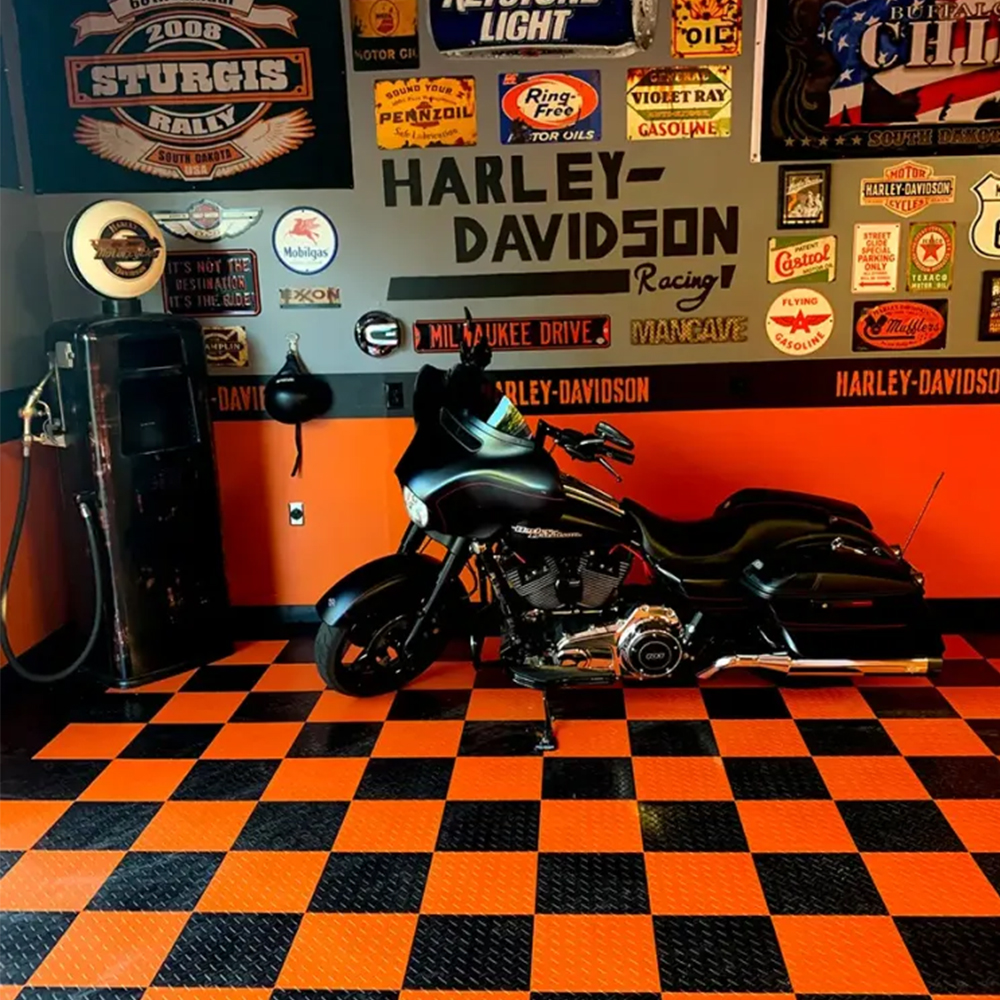

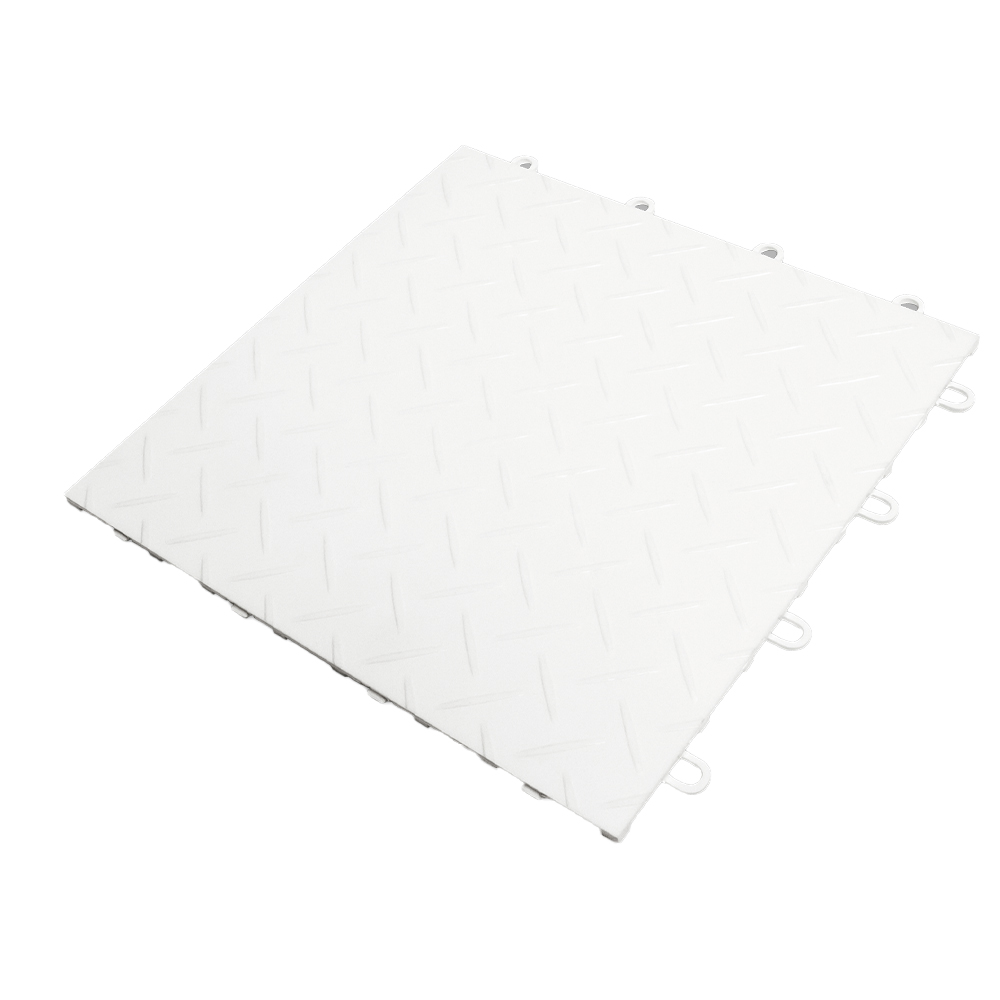

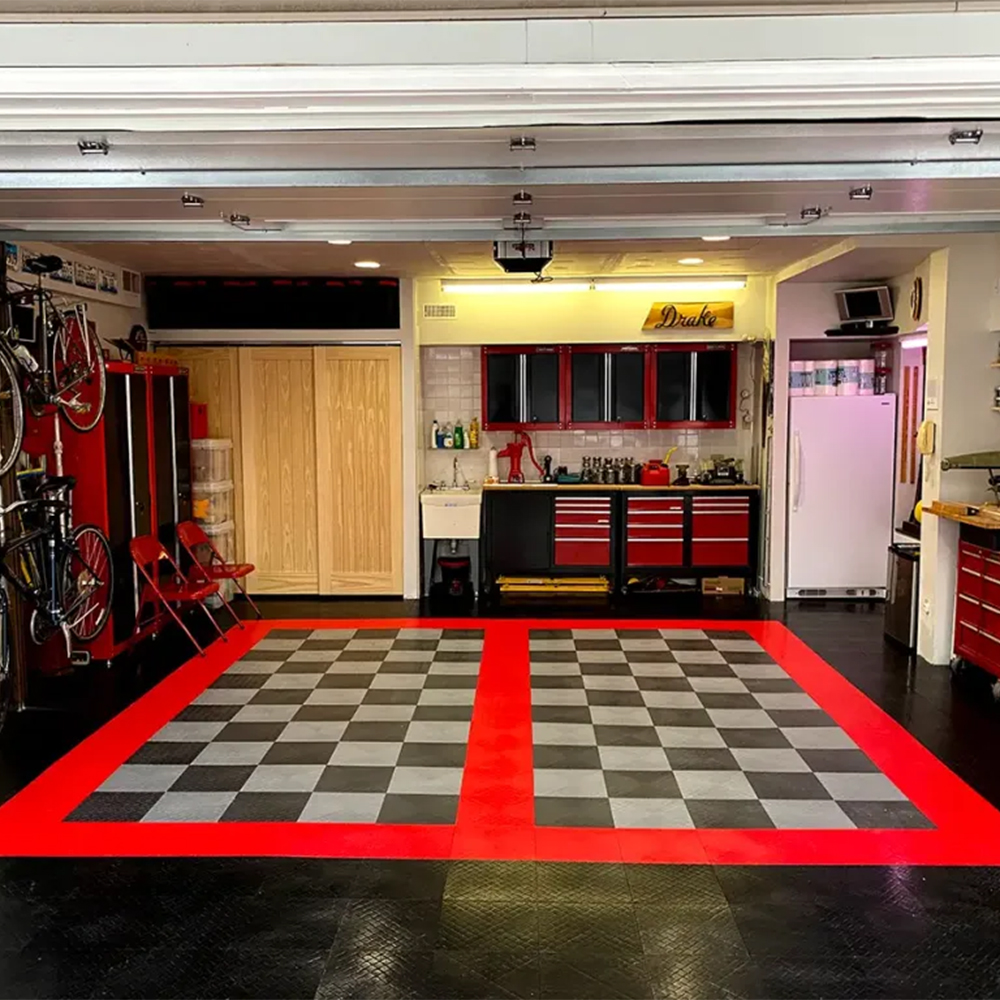

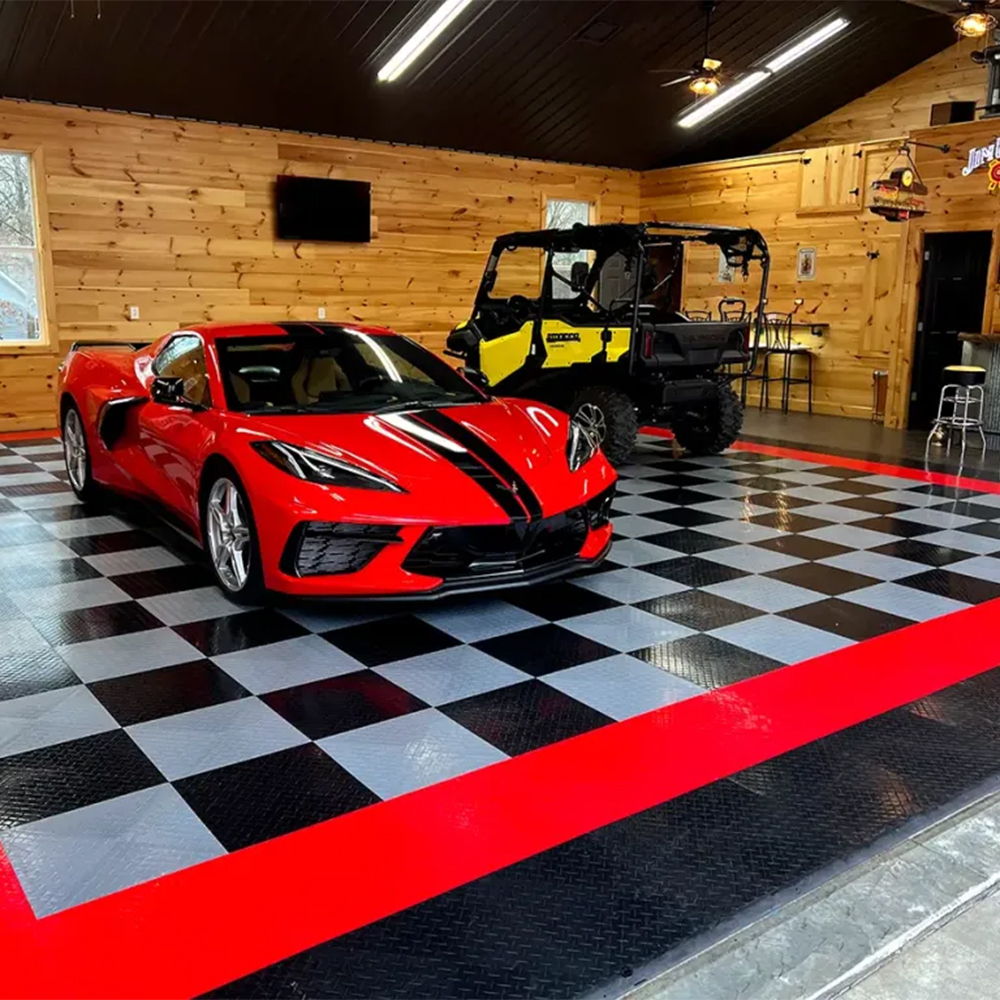

Your garage will look sharp with diamond-top garage floor tiles. You can create your space with a checkerboard pattern, a border around the perimeter of the garage, or a design you create. The one-by-one-foot tiles make it easy to create your own design, whatever that may be. Tiles are easy to install and clean.
These shop floor tiles are designed to support 80,000 pounds of rolling load weight. They also have a raised base, allowing air and moisture to move and dry without having to remove the tiles. Can be mixed and matched with RaceDeck CircleTrac Garage Tiles, RaceDeck Free-Flow Garage Tiles, and also RaceDeck Diamond TuffShield Garage Tiles.

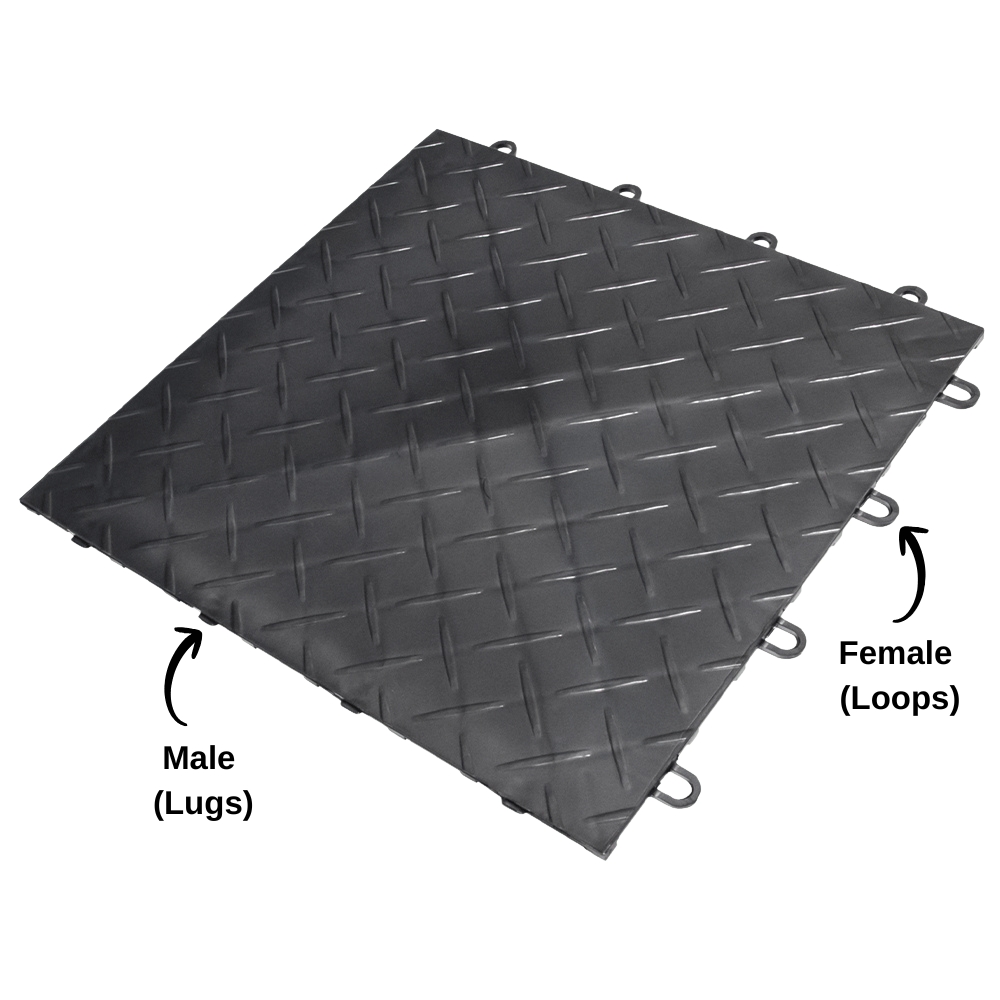

The snap-together locking system keeps them securely together but can be taken apart and moved if needed. It can be used at a car show or for a show floor display; it is a great option for automotive event displays.
Tiles will not stain from petroleum products if spilled on them. These modular garage tiles are made from a high-impact copolymer, with no added rubber, PVC, or foaming agents.
Tiles are easy to install and cut, if necessary, using a power saw with a fine-toothed saw blade. If individual tiles need to be replaced, they can be removed using a putty knife.
Test Data:
Friction: ASTM C1028: Dry: 0.74, Wet: 0.53
Compression vs. Crush: ASTM D3998: No break
Noise Reduction Coefficient: ASTM C423: 5-10%
Standard Deformation: DIN 18032-02: 0.9 mm
Load Bearing Capacity: DIN: 18032-02: >250 psi
R-Value: x < 1.0
Flatness: 0.0 mm
Lateral Movement: 0.00-0.020 Inch
Flame Spread Index: ASTM E84-04: 90
Fungus Resistance: ASTM G21: No growth, resistant to bacteria, mildew, Staphylococcus, Klebsiella pneumoniae, pink staining organism, and STV Reticulum
Ramped edges are sold separately.
RaceDeck Diamond and PowerLock are registered trademarks of SnapLock Industries.
Maintenance
Sweep or mop tiles with a mixture of non-foaming ammonia and warm water. Tiles can be hosed off or pressure washed, which is a great way to remove residue. Degreasers can remove tough spills. Be sure to rinse with clear water to prevent dirt-attracting films.
Shipping
Ships via freight delivery, shrink-wrapped on pallets.
Please review our shipping disclaimer.
| SKU# | RD- |
| In Stock | Yes |
| Product Type | Tile |
| Material Type | Polypropylene Plastic |
| Product Edging | Interlocking |
| Thickness | 1/2 inch |
| Width | 1.00 feet |
| Length | 1.00 feet |
| SF per Item | 1.00 |
| Weight | 0.94 lbs |
| Packaging | Cartons |
| Non Absorbent | Yes |
| Interlock Loss | 0.00 feet |
| Interlocking Connections | Yes |
| Made In | United States |
| Surface Finish | Diamond |
| Surface Design | Solid Color |
| Installation Method | Snap together |
| UV Treated | No |
| Reversible | No |
| Border Strips Included | No |
| Indoor or Outdoor | Indoor |
| Flammability | ASTM E84-04: 90 |
| Static Test | ASTM C1028: Dry: 0.74, Wet: 0.53 |
| Manufacturer Warranty | 20 Year Manufacturer Limited Warranty |
View Installation Instructions
