Wearwell ErgoDeck Diamond Plate GP Tile 7/8 Inch x 18x18 Inches Case of 10

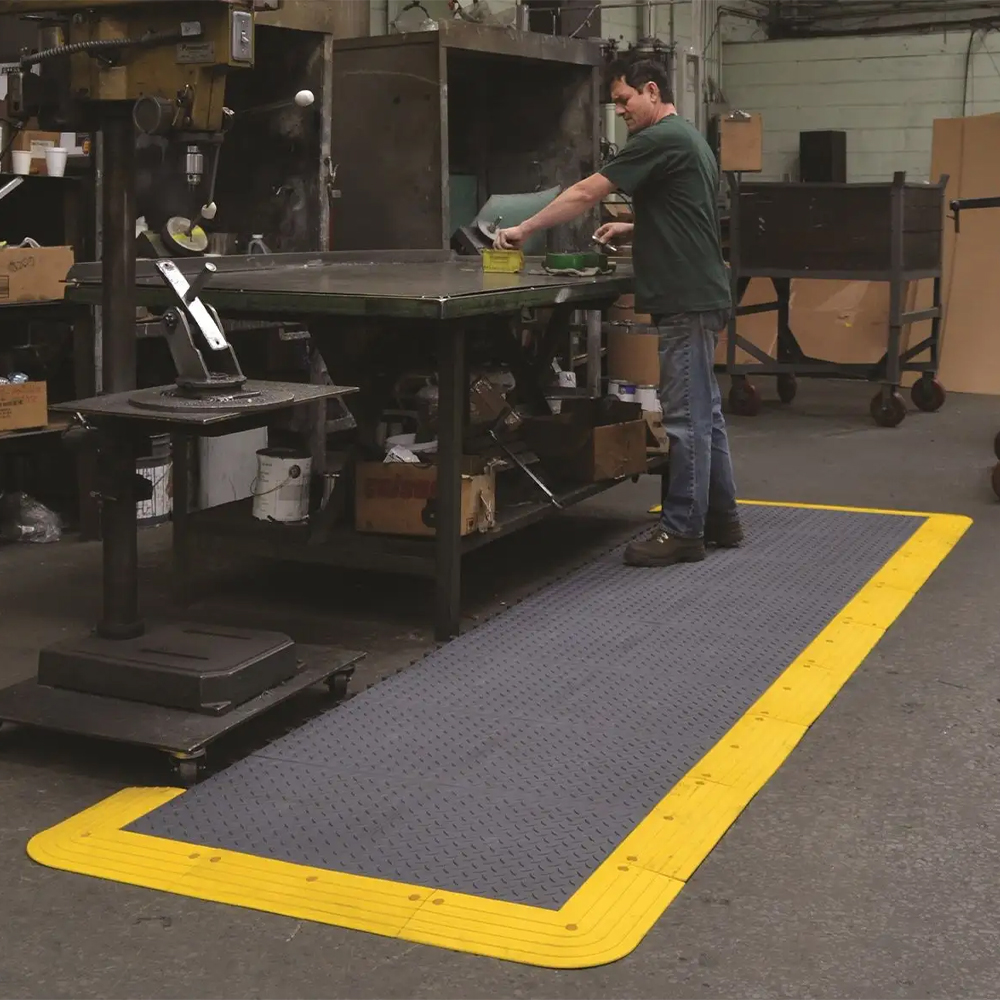

Wearwell ErgoDeck Diamond Plate General Purpose Tile 7/8 Inch x 18x18 Inches Case of 10 in Charcoal at assembly station
/images/wearwell/ergodeck/590-ergodeck-diamond-plate-general-purpose-tile-charcoal-assembly-station.jpg

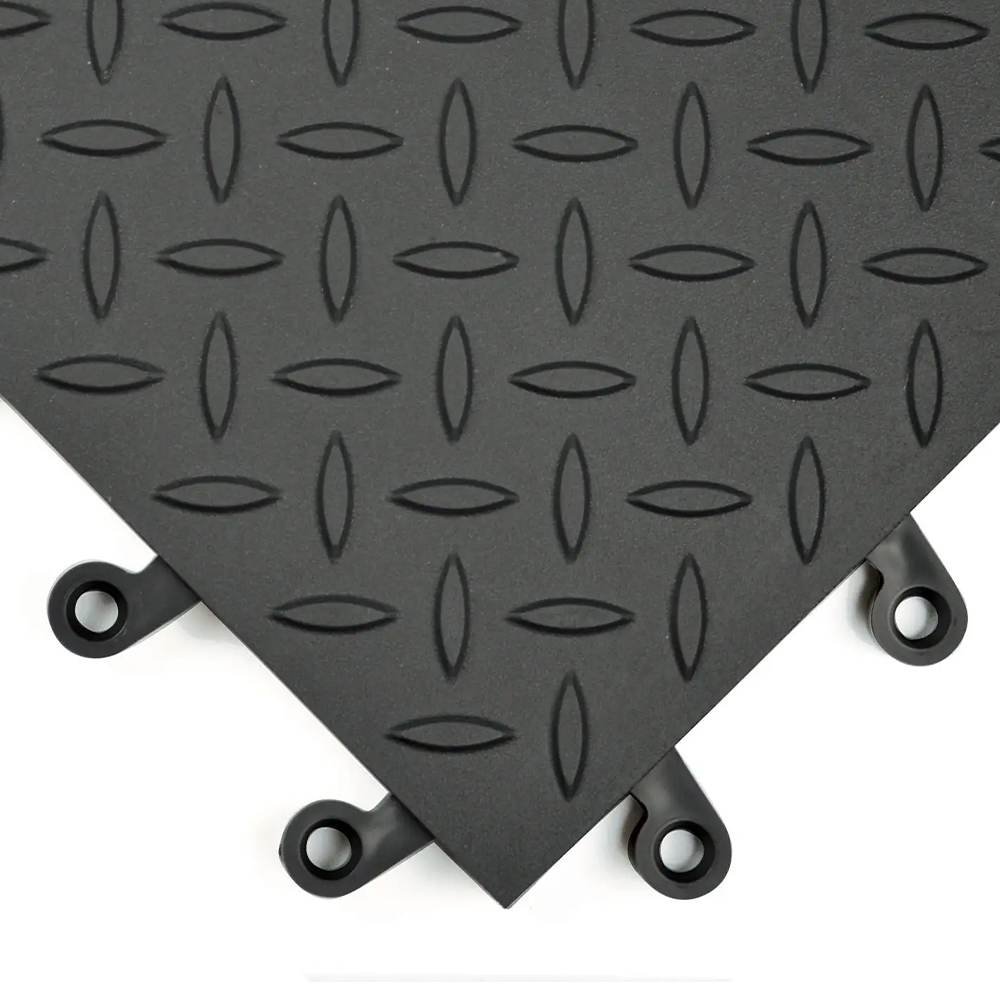

Wearwell ErgoDeck Diamond Plate General Purpose Tile 7/8 Inch x 18x18 Inches Case of 10 Black corner of tile
/images/wearwell/ergodeck/590-ergodeck-diamond-plate-general-purpose-tile-black-corner.jpg

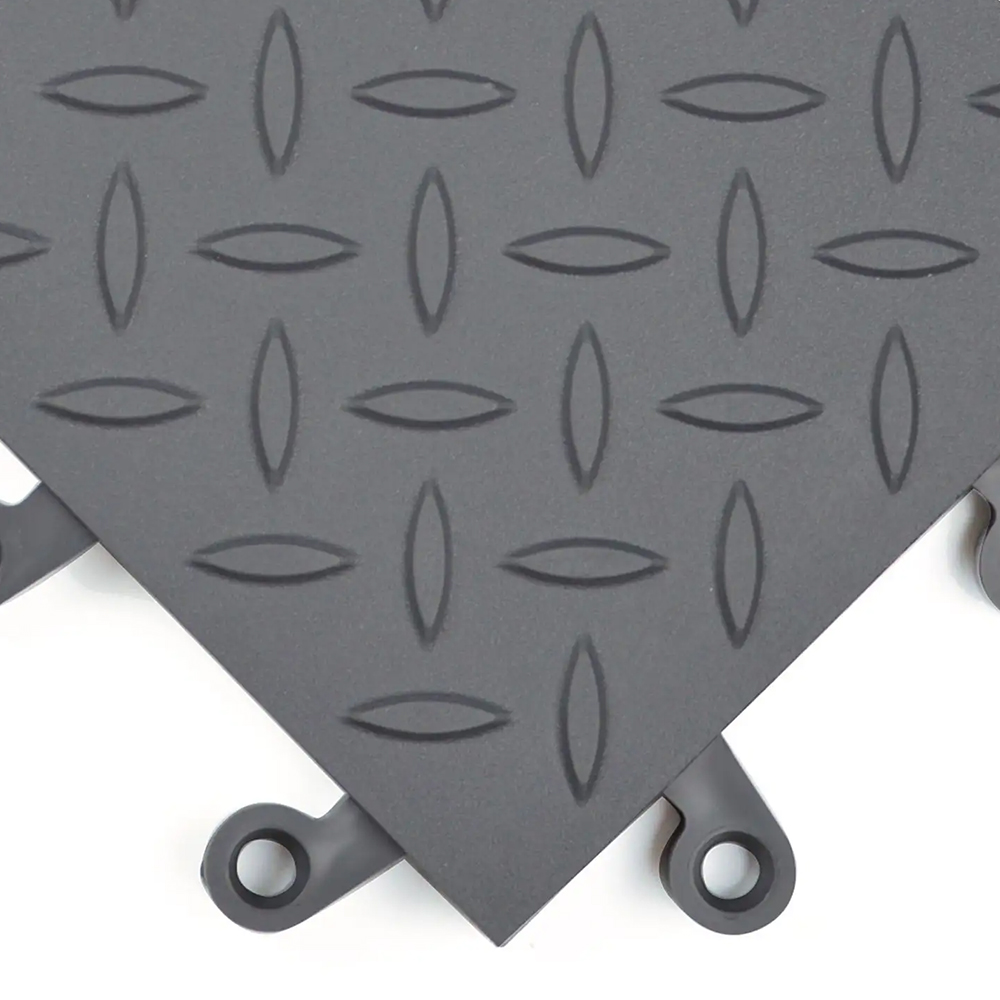

Charcoal Wearwell ErgoDeck Diamond Plate General Purpose Tile 7/8 Inch x 18x18 Inches Case of 10 corner of tile
/images/wearwell/ergodeck/590-ergodeck-diamond-plate-general-purpose-tile-charcoal-corner.jpg

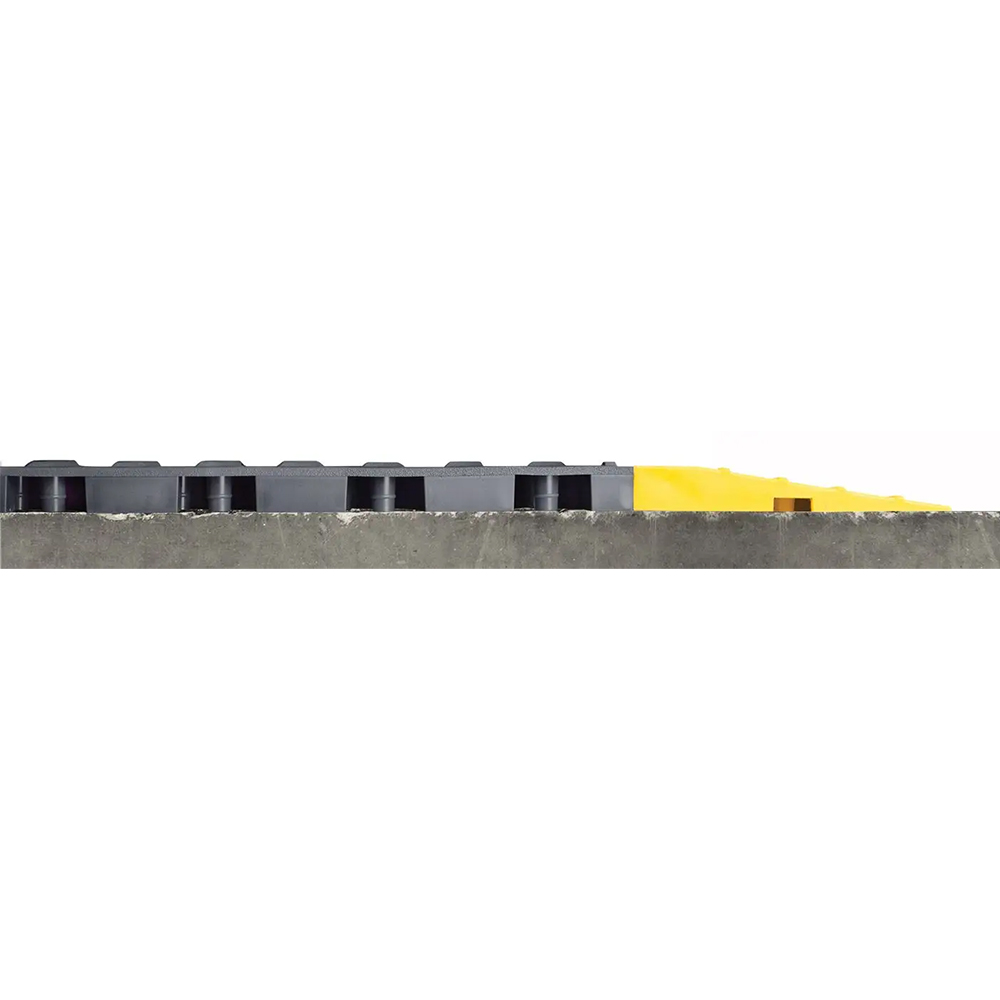

Wearwell ErgoDeck Diamond Plate General Purpose Tile 7/8 Inch x 18x18 Inches Case of 10 side view with yellow ramp
/images/wearwell/ergodeck/590-ergodeck-diamond-plate-general-purpose-tile-charcoal-side-border.jpg

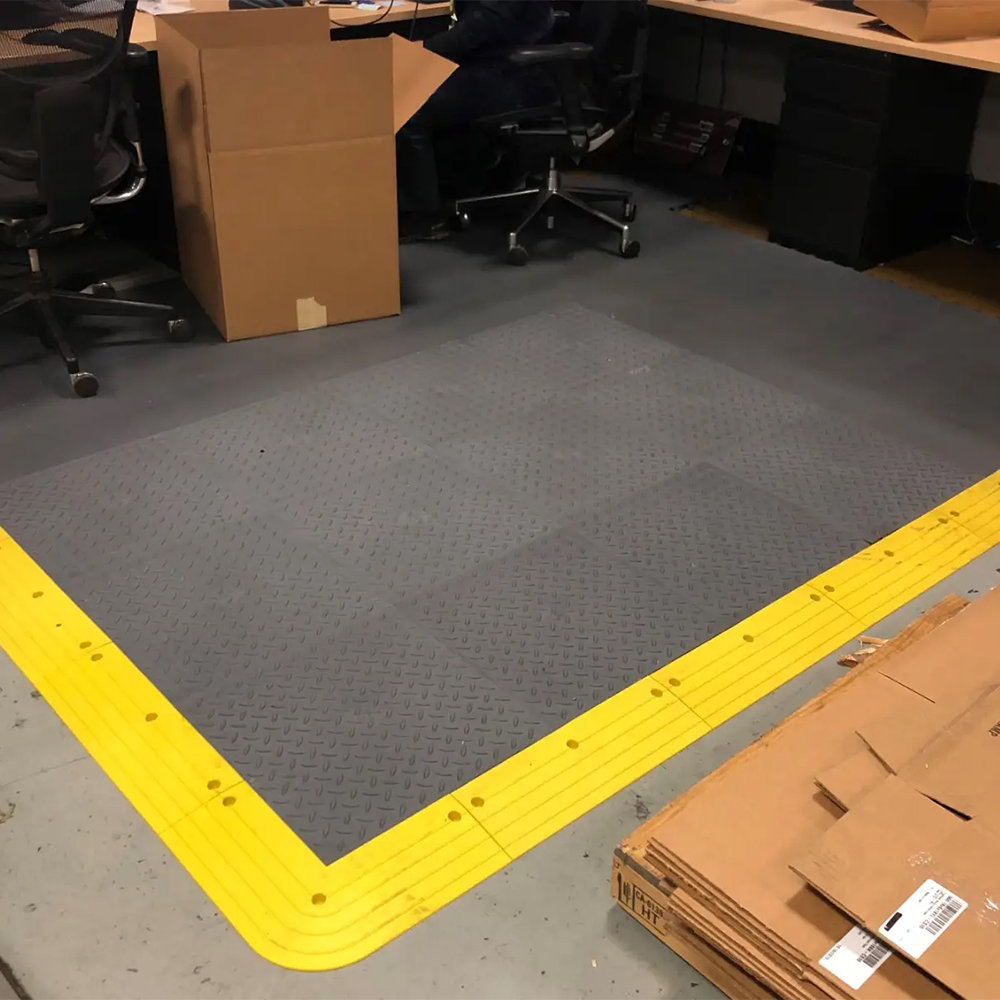

Work area with Wearwell ErgoDeck Diamond Plate General Purpose Tile 7/8 Inch x 18x18 Inches Case of 10 and Smooth Top tile
/images/wearwell/ergodeck/590-ergodeck-diamond-plate-general-purpose-tile-charcoal-office-chairs.jpg
Be the first to review this product
$337.30/carton
Save 37%
$149.91/sqft
Reg: $535.40/carton
Handling Time Estimate: 3-5 Working Days
  • Chemical resistant
  • Flexible PVC/Nitrile Sponge construction
  • NFSI Certified
  • See More Details

Colors:

  • Black
  • Charcoal

Please call 877-822-6622 to backorder this product.

Request Sales Quote
Please Call for Sample Options
  1. Chemical resistant
  2. Flexible PVC/Nitrile Sponge construction
  3. NFSI Certified
  4. Silicone Free
  5. 80% recycled materials
  6. Easy to install and remove
  7. Industrial anti-fatigue tile
  8. Made in the USA

  • Industrial Workstation
  • Assembly Line
  • Warehouse
  • Manufacturing
  • Factories

NOTE: This item is a custom order and is not returnable.

Interlocking Anti-Fatigue Floor Tiles


ErgoDeck Diamond-Plate modular flooring provides relief and anti-fatigue flooring that is durable. The Wearwell ErgoDeck Diamond Plate GP 7/8 Inch x 18x18 Inches is a general-purpose modular tiles feature LockSafe interlocking system that provides secure connections but can be easily taken apart and moved to a different work area or to replace a damaged tile.

This flexible general-purpose tile compound and box-spring structure is engineered to provide better impact absorption and anti-fatigue support. This warehouse anti-fatigue flooring has a diamond-plate texture that provides slip resistance and stability for any size area. 6-inch side safety ramps and corners are available for semi-permanent or permanent installations.

This tile features a raised texture design to maximize traction while enhancing workplace aesthetics. Plus, since the flooring tiles are made of 100% silicone-free PVC, they’re a durable choice suitable for industrial applications, such as in a mechanical room or manufacturing line.

Enhance Comfort and Fatigue Relief


These fatigue-relieving tiles are designed for greater anti-fatigue benefits, maximizing staff comfort while standing for long periods of time. They’re suitable for heavy foot traffic and light cart traffic, and the box spring foundation is made with a softer material for enhanced cushion.

The tiles provide just the right mixture of support for joints and legs while also providing a comfortable cushion, and they’re ideal for use over concrete flooring.

Test Data:
Flammability: MVSS 302 – A Rating
Taber Abrasion: ASTM D 2884 - .48% loss
Temperature Range: 0 to 120 F
Coefficient of Friction: ASTM F1677 – Dry: .90, Wet: .77
Compression Deflection: ASTM D575-91 – 15%, Distance: .14

Easily Install Tiles in Your Manufacturing Workplace


The Wearwell ErgoDeck Tile is very easy to install. The interlocking tiles have connections that hold them together securely. You can also disconnect and reconnect the tiles as needed.

Measuring 1.5 by 1.5 feet, these tiles can quickly cover larger spaces in your facility. They’re easy to cut to fit your space, too, and since each tile weighs just 5.3 pounds, the installation process is easy.

Made from 80% recycled material.

Disclaimer:


Computer monitors vary, so there may be a slight variance in color. Due to manufacturing processes and material dye lots, color can vary.

ErgoDeck is a registered trademark of Wearwell.

Maintenance

Sweep regularly or dry mop the surface. These mats can be wet mopped with mild soap or detergent, for best results, using a neutral pH detergent.


Shipping

Ships via ground delivery. Larger orders may ship via freight.

Please review our shipping disclaimer.

WARNING: This product can expose you to chemicals including Lead and/or Phthalates, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SKU# 590.78x18x18-CS10
In Stock Yes
Product Type Tile
Material Type PVC Plastic
Product Edging Interlocking
Thickness 7/8 inch
Width 1.50 feet
Length 1.50 feet
SF per Item 2.25
Weight 53.00 lbs
Packaging Cartons
Non Absorbent Yes
Special Adhesives No
Interlock Loss 0.00 feet
Interlocking Connections Yes
Made In USA
Surface Finish Diamond-Plate
Surface Design Solid Color
Installation Method Interlocking
UV Treated No
Reversible No
Border Strips Included No
Indoor or Outdoor Indoor
Flammability MVSS 302 / A Rating
Manufacturer Warranty Limited Lifetime Manufacturer Warranty
