NOTE: This item is a custom order and is not returnable.

The tiles provide just the right mixture of support for joints and legs while also providing a comfortable cushion, and they’re ideal for use over concrete flooring.

Easily Install Tiles in Your Manufacturing Workplace

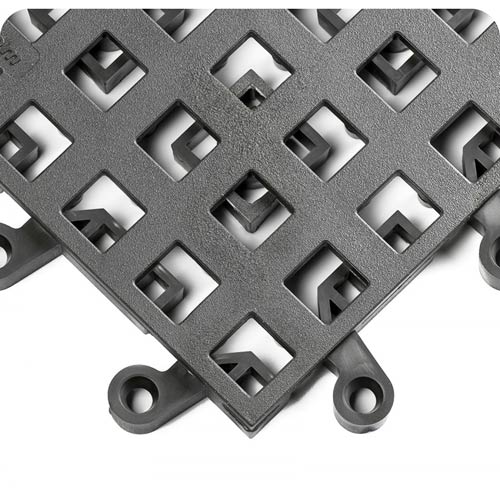

The Wearwell ErgoDeck Tile is very easy to install. The interlocking tiles have connections that hold them together securely. You can also disconnect and reconnect the tiles as needed.

Measuring 1.5 by 1.5 feet, these tiles can quickly cover larger spaces in your facility. They’re easy to cut to fit your space, too, and since each tile weighs just 5 pounds, the installation process is easy.

Chemical Resistance and Specifications

The resistance levels reflected below are based on moderate exposure, not long-term immersion in any of the listed fluids. For best results, please use this chart as a guide, and schedule regular cleaning for your mats.

• Performs well: boric acid, ethylene glycol, isopropyl alcohol, transmission fluid (type A)
• Slightly affected: bleach solution (10% dilute), brake fluid, brake fluid (silicone based), chlorine solution (3% dilute), diesel oil, hydraulic oil (petroleum), mineral oil, petroleum, salt water, vegetable oil
• Moderately affected: animal fats, citric acid, hydrochloric acide cole (37% dilute)
• Not Recommended: acetone, lacquer solvents, MEK, naptha, napthlene, tolulene, trichloroethane
• Not Tested: acetone, ethylene acetate, Lindol (hydraulic fluid)

Specifications of Wearwell ErgoDeck General Purpose Tiles

• Flammability: MVSS 302 / 'A' Rating
• Taber Abrasion: ASTM D 3884 / 1% loss
• Temperature Range: 0 to 140 degrees Fahrenheit
• Coefficient of Friction: ASTM F1677 / Dry: COF = .65 / Wet: COF = .42
• Compression Deflection: ASTM D575 - 61.1 psi @ 15% = .22'' distance compressed

Disclaimer

Since July 2023 this product is now sold by the case instead of individual tiles. Each case contains 10 tiles.

ErgoDeck is a registered trademark of Wearwell
Gritshield is a trademark of Wearwell

Maintenance

Sweep. Damp mop with a neutral pH cleaner. For deep cleaning, use a high-pressure hold (not to exceed 500 psi) and hot water (max 160 degrees F) to rid the mats of oils. Do not use steam, degreasers, caustic chemicals, or mechanical scrubbers.

Shipping

Ships in cartons via ground service to your door, for larger orders product may ship freight delivery
