Wearwell ErgoDeck HD Open Black 18 x 18 Inch Tile Case of 10

ErgoDeck HD Open Black 18 x 18 Inch Tile close
ErgoDeck HD Open Black 18 x 18 Inch Tile plant
ErgoDeck HD Open Black 18 x 18 Inch Tile corner
Wearwell ErgoDeck HD Standing Anti Fatigue Tiles

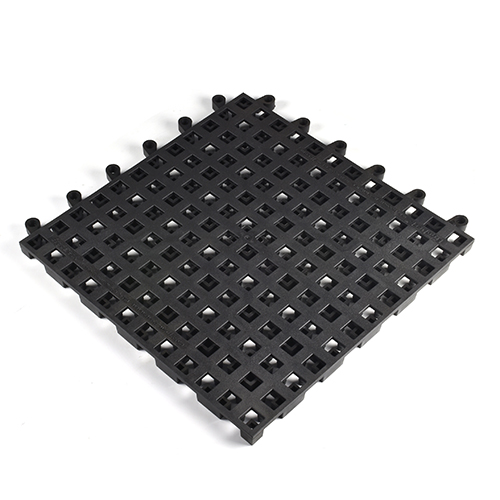

Wearwell ErgoDeck HD Full Tile
Wearwell ErgoDeck HD Full Tile Angle
Wearwell ErgoDeck HD Two Tiles Connected
Wearwell ErgoDeck HD Corner with logo

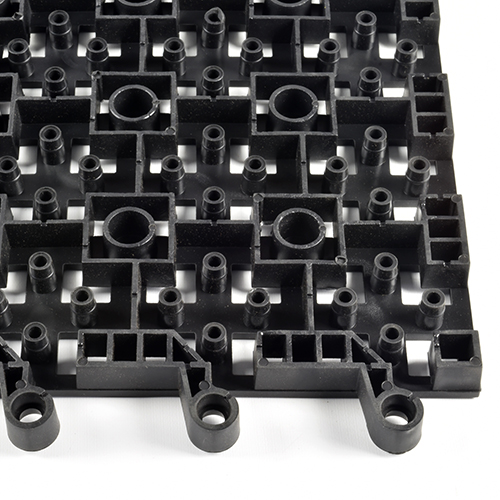

Wearwell ErgoDeck HD tile underside corner
Wearwell ErgoDeck HD interlocks from bottom
Wearwell ErgoDeck HD peg and loop connection
Wearwell ErgoDeck HD interlocks peg over loop

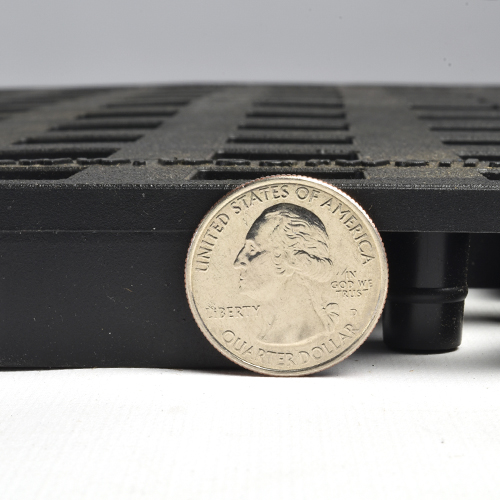

Wearwell ErgoDeck HD tile thickness
Be the first to review this product
Save 36%
Reg: $386.12/carton
Handling Time Estimate: 4-6 Working Days
  • Standing relief in wet or dry applications
  • Customize in 3'' (8 cm) increments to fit any area or configuration
  • Positive Interlocking System prevents separation
  • See More Details


  • Black

Request Sales Quote
Please Call for Sample Options
  1. Standing relief in wet or dry applications
  2. Customize in 3'' (8 cm) increments to fit any area or configuration
  3. Positive Interlocking System prevents separation
  4. Easily replace single pieces or sections as needed to reduce costs
  5. 100% Silicone Free PVC tiles provide maximum durability
  6. Available in Solid and Drainage version and with Gritshield for extra traction
  7. Overall thickness 7/8 inch (22 mm)
  8. Case of 10 tiles

Machining, General Manufacturing and Automotive Manufacturing

NOTE: This item is a custom order and is not returnable.

Wearwell ErgoDeck HD Open Black 18 x 18 Inch Tile - Case of 10

This Wearwell ErgoDeck HD Open Black 18 x 18 Inch Tile Case of 10 will withstand heavy use. The Interlocking System delivers secure connections. Tiles can be unlocked and repositioned as work centers change to fit customer needs. ErgoDeck Heavy Duty is the best choice in areas with heavy cart and foot traffic. The firmer compound lets carts roll over the tiles with ease. Meanwhile, the underside box-spring design provides structural support and impact absorption for health and productivity, even in multi-shift operations.

Black Wearwell ErgoDeck HD Anti Fatigue Mats With Drainage Holes, 3x3 Feet

Wearwell mats deliver a number of advantages for workers in commercial locations, including slip resistance, ergonomic benefits, and removal of standing liquids. Our Black Wearwell ErgoDeck HD Anti Fatigue Mats With Drainage Holes can fit almost any planned use case and any size of coverage area.

This type of floor creates excellent stress relief for the lower back and lower body joints of people when they are standing and working. Each mat includes a box-spring design on the underside of the tile that enhances the level of cushioning you will receive.

The PVC plastic material in these perforated mats has a nice mixture of cushioning to provide fatigue protection and stability for workers to stand with the proper posture and balance.

These are Made in the USA tiles, so customers can trust the quality of the ingredients and manufacturing process. You will not have to worry about having weak spots in the mats that could lead to a failure of the flooring when placed under heavy weight or stress.

Our anti-fatigue mats with drainage holes have just the right amount of give for people standing and working, but they also have enough firmness to allow rolling carts to move across the mats smoothly without sinking in and becoming difficult to push.

ErgoDeck Tiles for Wet Areas

When working in an industrial, commercial, or retail location where liquid spills are common, having a perforated floor is an ideal design. Rather than forcing workers to stand in pools of water, our anti-fatigue mats with drainage holes allow the liquid to flow through to the subfloor efficiently.

By removing liquids from the surface of the tiles, workers will see a reduction in the potential for slips too.

Business owners can deploy these tiles in dry areas too. Spills of small solids and powdery materials will fall through the perforations, keeping them away from the soles of the shoes of people standing and working.

This allows people to continue working, rather than having to stop and sweep. The janitorial staff can wait to clean these powders after the normal workday ends. They only need to pick up the tiles to clean the subfloor.

Safe Interlocking Tile System

Our 18-by-18-inch tiles can go together in any configuration to cover the desired space in the work area. Connect dozens of tiles to cover a large squarish area, or create a long runway of connected tiles that yield protection at an assembly line or at a long countertop.

Each tile contains a highly durable interlocking system. Two sides of the tile have tabs, while the other two sides have slots. Installers can assemble and disassemble these tiles repeatedly without causing any damage to the interlock tabs.

The interlock system greatly simplifies installation. Businesses can cover a large space with multiple tiles in very little time.

Because all of the tiles carry the same interlock system, installers can swap out a damaged tile for a new one at any time. It is rare for damage to occur to the silicone-free PVC plastic tiles. Each mat delivers a limited lifetime warranty.

Having a sturdy interlock system for these tiles is important to protect the workers using the floor. Because our anti-fatigue mats with drainage holes stay together when placed under stress, workers do not have to worry about the floor pulling apart, which would create a fall hazard.

As a final safety feature, installers can order an optional yellow safety border to attach to the mat layout. This border has a gradual ramp, reducing the possibility of a trip hazard on the 7/8-inch thick ErgoDeck mat. These border edges use the same interlocking system as the main mats, ensuring a tight fit.

Anti-Fatigue Drainage Mat Specifications

  • Width: 1.5 feet
  • Length: 1.5 feet
  • Thickness: 7/8 inch
  • Tiles per Case: 10
  • Coverage: 22.5 square feet per case
  • Weight: 5.5 pounds per tile
  • Color: Black
  • Texture: Square-shaped perforations
  • Edge: Interlocking

Maintenance and Care

Cleaning these anti-fatigue mats with drainage holes on a regular basis will lengthen their lifespan. These tiles work in either a dry or wet environment, so regular cleaning may be necessary to remove the different kinds of soils you could encounter.

To remove dry debris, sweep the mats on a daily basis. Much powdery dry debris should fall through the large perforation holes to the subfloor, which creates a safer, slip-free environment.

For wet spills, the perforated holes ensure that the liquids fall through to the subfloor. The slightly raised pattern on the underside of the tiles will encourage water and spilled liquids to flow toward a floor drain.

To clean a wet spill on these mats, the manufacturer recommends using a high-pressure hose that does not exceed 500 psi. Mix warm water with mild soap or a neutral pH cleaner to remove soil. Avoid using degreasers or caustic chemicals on the interlocking tiles.

Do not use a steam cleaner or a washing machine on these mats.

This product is made from 80% post-industrial recycled material.

Since July 2023 this product is now sold by the case instead of individual tiles.

ErgoDeck is a registered trademark of Wearwell
Gritshield is a trademark of Wearwell


Sweep, damp mop with mild detergent and warm water.


Ships in cartons via ground service to your door, for larger orders product may ship freight delivery

This Product Ships UPS Ground, FedEx Ground and/or Freight.
Please review our shipping disclaimer.

WARNING: This product can expose you to chemicals including Lead and/or Phthalates, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SKU# 560.78x18x18BK-CS10
In Stock Yes
Material Type PVC Plastic
Product Edging Interlocking
Thickness 7/8 inch
Width 1.50 feet
Length 1.50 feet
SF per Item 22.50
Weight 55.00 lbs
Packaging Cartons
Number of Pieces per Package Type 10
Non Absorbent Yes
Special Adhesives No
Universal Interlock No
Interlock Loss 0.00 feet
Interlocking Connections Yes
Made In USA
Surface Finish Raised open pattern
Surface Design Solid color
Installation Method Interlocking, dry lay
UV Treated No
Reversible No
Border Strips Included No
Manufacturer Warranty Limited lifetime warranty

Currently, there are no questions for this product.
