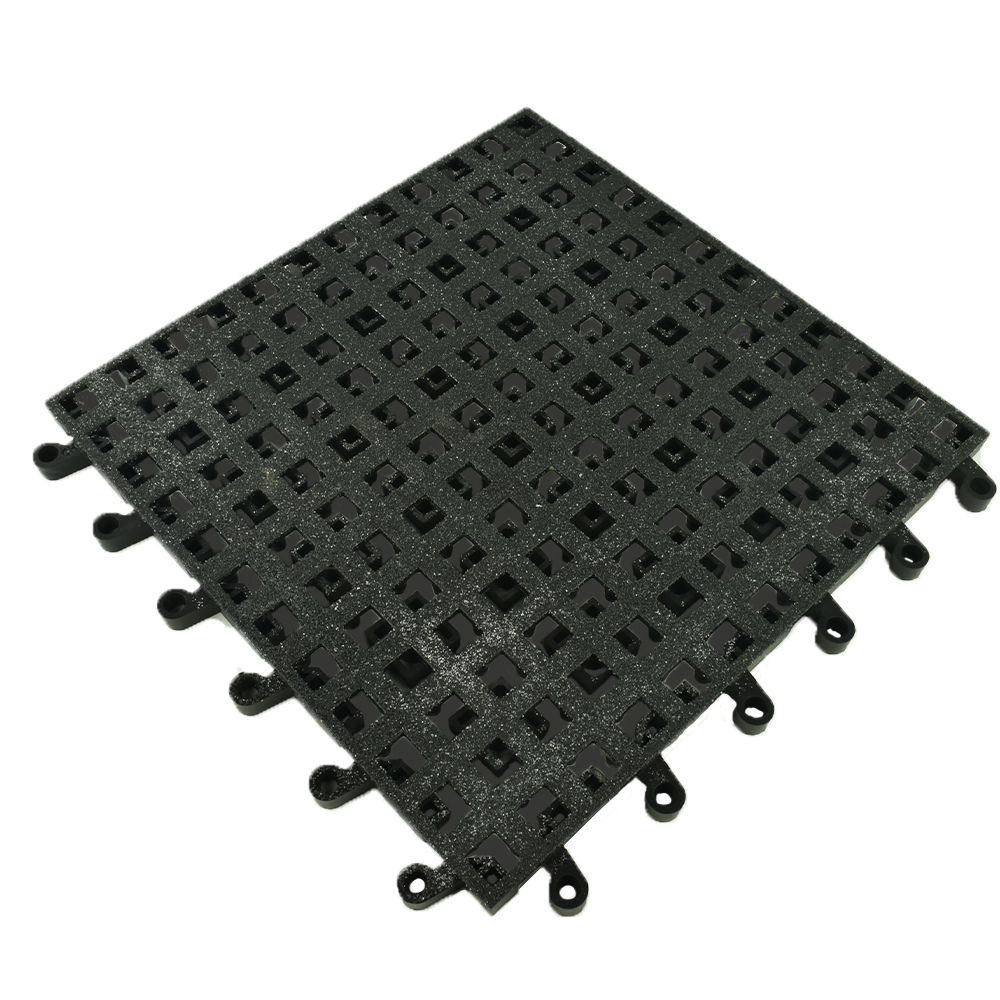

Wearwell ErgoDeck General Purpose Open with Gritshield 18x18 Inch Tile Case of 10

  • Softer compound for greater standing relief in dry applications
  • Positive Interlocking System prevents separation
  • Easily replace single pieces or sections as needed to reduce costs
  • See More Details
Save 36%
Reg: $607.85/carton
Be the First to Write a Review
Handling Time Estimate: 4-6 Working Days
  • Wearwell ErgoDeck General Purpose Open with Gritshield 18x18 Inch Tile Case of 10 Black Swatch Wearwell ErgoDeck General Purpose Open with Gritshield 18x18 Inch Tile Case of 10 Black Swatch

Request Sales Quote
Please Call for Sample Options


How to Install Wearwell ErgoDeck Tiles

Wearwell ErgoDeck Flooring Promotional Video

How to Connect ErgoDeck Tiles without Tools

How to Cut PVC Floor Tiles

  1. Softer compound for greater standing relief in dry applications
  2. Positive Interlocking System prevents separation
  3. Easily replace single pieces or sections as needed to reduce costs
  4. 100% Silicone Free PVC tiles provide maximum durability
  5. Offers fatigue relief
  6. Overall thickness 7/8 inch
  7. With Gritshield for extra traction
  8. Case of 10 tiles

Machining, General Manufacturing and Automotive Manufacturing

NOTE: This item is a custom order and is not returnable.

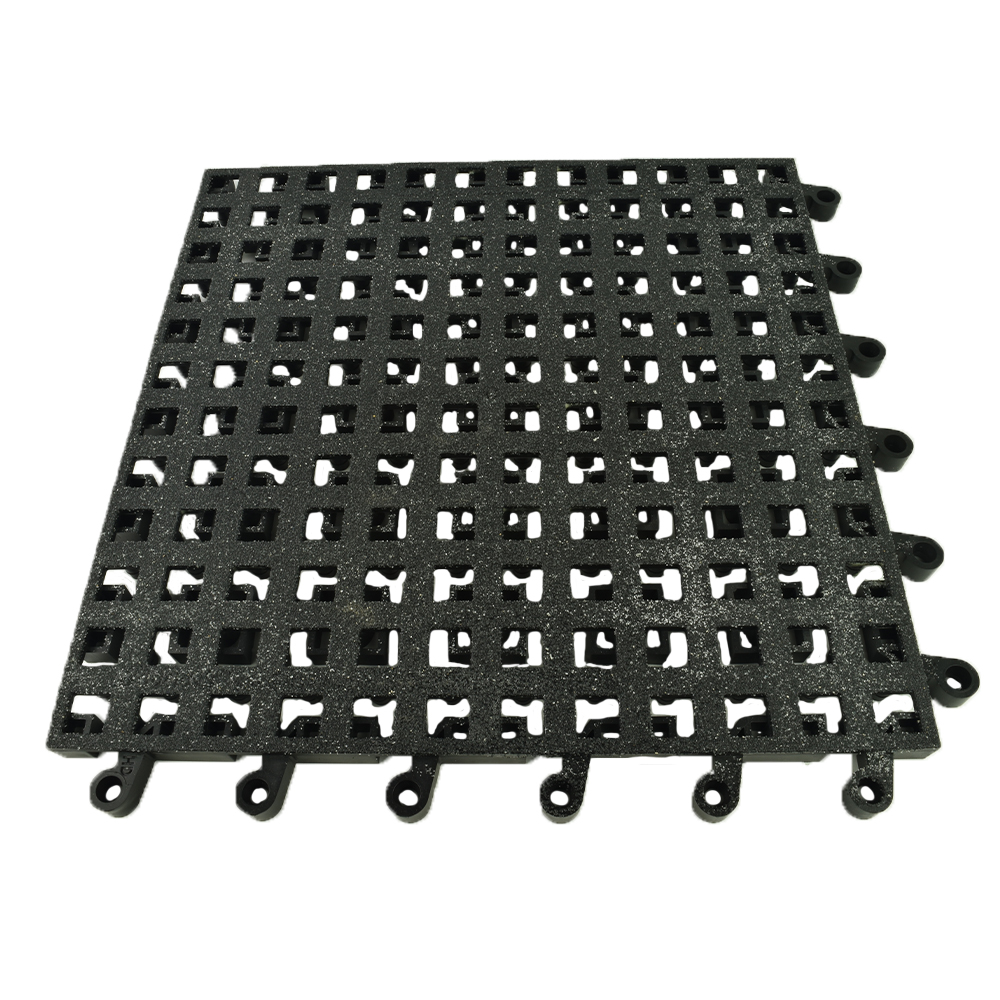

Wearwell ErgoDeck General Purpose Open with Gritshield 18x18 Inch Tile - Case of 10

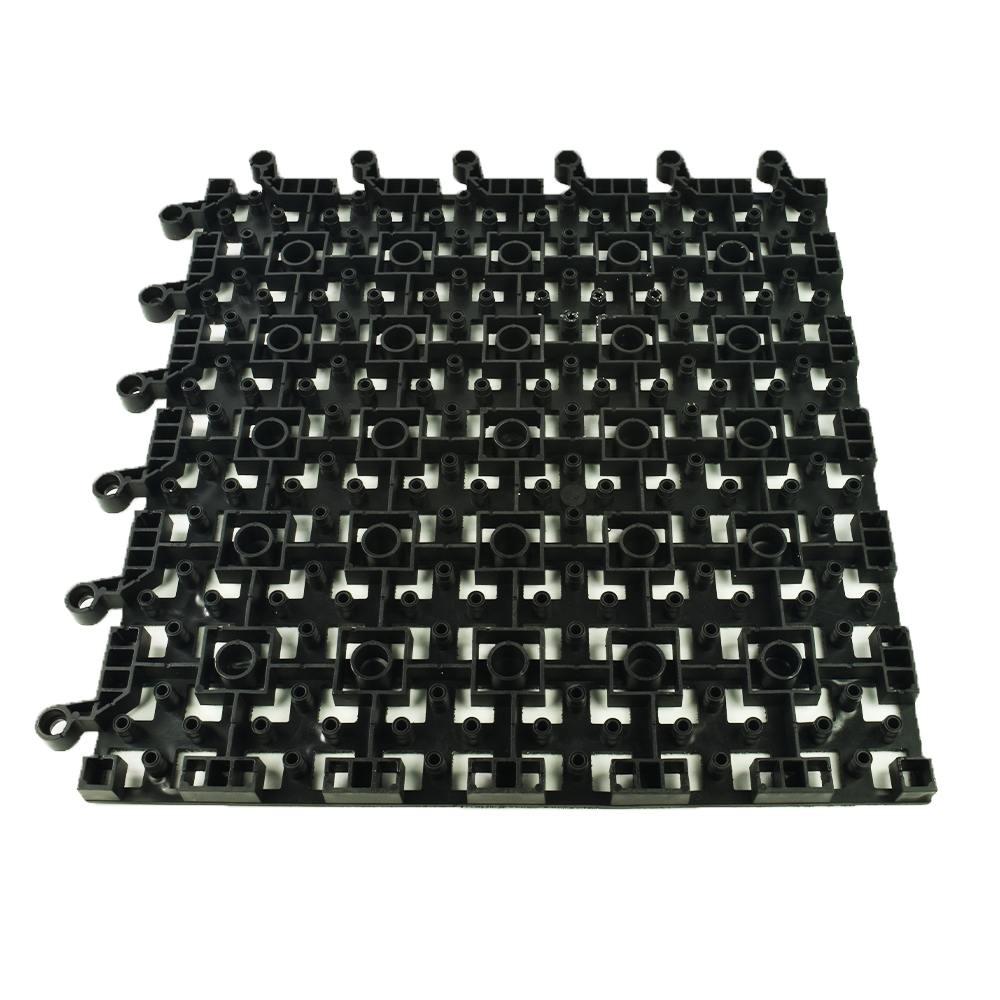

Wearwell ErgoDeck General Purpose Open with Gritshield 18x18 Inch Tile Case of 10 surface tile with Gritshield provides a stable, solid, and resilient foundation underfoot. It features a raised textured design that provides sure footing while enhancing workplace aesthetics. ErgoDeck General Purpose has a box-spring foundation that is made with a soft compound for greater anti-fatigue benefit. Ideal for heavy foot and light cart traffic.

Wearwell ErgoDeck Interlocking Grit Flooring Tile, 18x18 Inches Case of 10

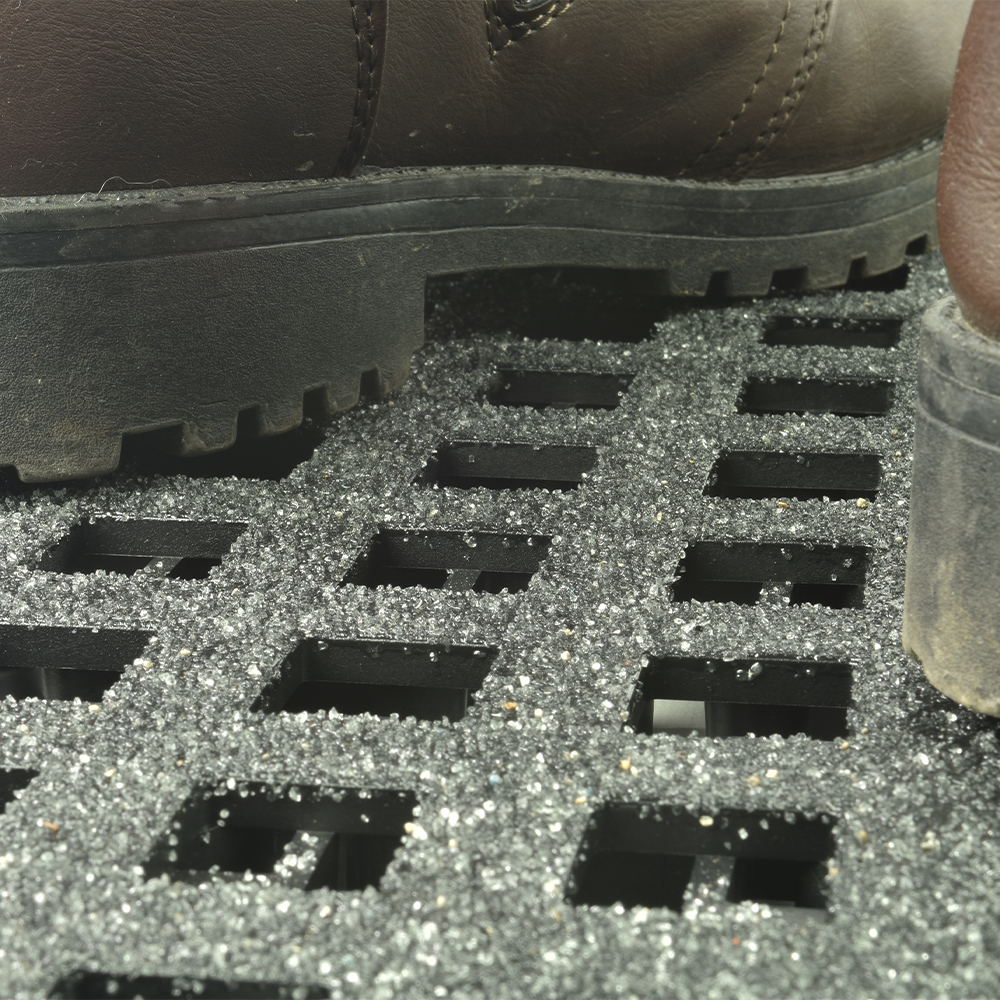

In an industrial setting, having a grippy textured floor is important to allow employees to maintain their balance and avoid slips that could lead to serious injuries. The Wearwell ErgoDeck Interlocking Grit Flooring Tile delivers a gritty surface that protects employees.

These interlocking mats create a stable and resilient flooring layout. Having a high level of traction means employees can focus on the work at hand, rather than worrying about potential slips.

Grit flooring with Gritshield is highly durable as well. This is a Made in the USA tile that contains only the highest quality of materials and that uses a trustworthy manufacturing process. The tiles will provide excellent performance, even in a tough working environment.

Interlocking Anti Fatigue Mats

When you need variability in the size of the floor covered with our grit flooring tiles, the interlocking design on the edges of these tiles works nicely.

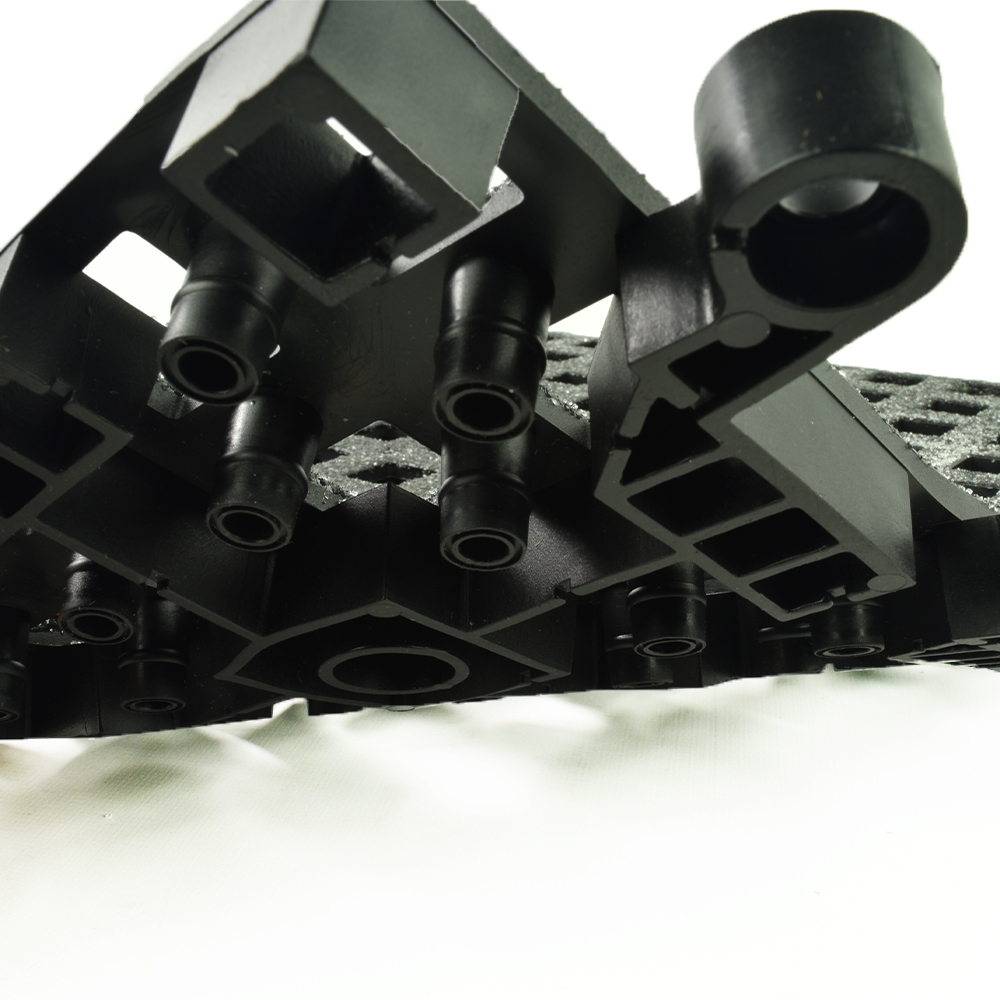

The interlocking design uses pegs on two sides of each mat and connectors on the other two sides to deliver a trustworthy interlock. Once you connect the tiles together, they will not pull apart when placed under normal levels of stress.

Connecting the tiles does not take very long. Should users need to reduce the size of the covered flooring, they can pop these tiles apart just as quickly, easily resizing the floor.

The interlocking system ensures that adjacent tiles will be tightly connected with no gaps between the tiles. This is an important part of the design of our grit flooring, as it allows the square-shaped perforations to collect any liquid spills and move them efficiently through to the subfloor.

Should installers need to cut these tiles to fit a wall-to-wall installation, they can use a utility knife and a straight edge. To maintain the integrity of the floor and to ensure the interlocking pegs continue to work properly, installers can only cut these tiles every 3 inches along the length and width.

These PVC tiles deliver a high level of comfort and cushioning for those who must stand and work for a large portion of the day. In an industrial facility, this is a common occurrence.

By providing cushioning for the employees, they will have less fatigue in the legs toward the end of the workday. They also should experience less pain in the lower back, knees, ankles, and hips from day to day.

Perforated Tiles for Wet Environment Safety

Perforations that extend through the entire 7/8 inch thickness of the mat will quickly remove any spilled liquids from the surface of the mat. Employees will not have to stand in puddles while working, which helps to deliver a safer environment in which people can work.

These mats also work well in dry working environments, where employees are working with powders or other fine solids. Those materials will move through the perforations to the subfloor, as these square perforations are large enough to handle many solids.

Once the workday ends, facility managers can pick up these interlocking tiles and use a power washer on the subfloor to remove any solids that fell through the perforated holes.

Should businesses want to reduce the possibility of tripping on the 7/8-inch lip for those walking near the mats, customers can order optional interlocking side safety ramps that reduce the height of the lip and deliver a bright yellow color for visibility.

Gritty Floor Safety Mat Specifications

  • Width: 1.5 feet
  • Length: 1.5 feet

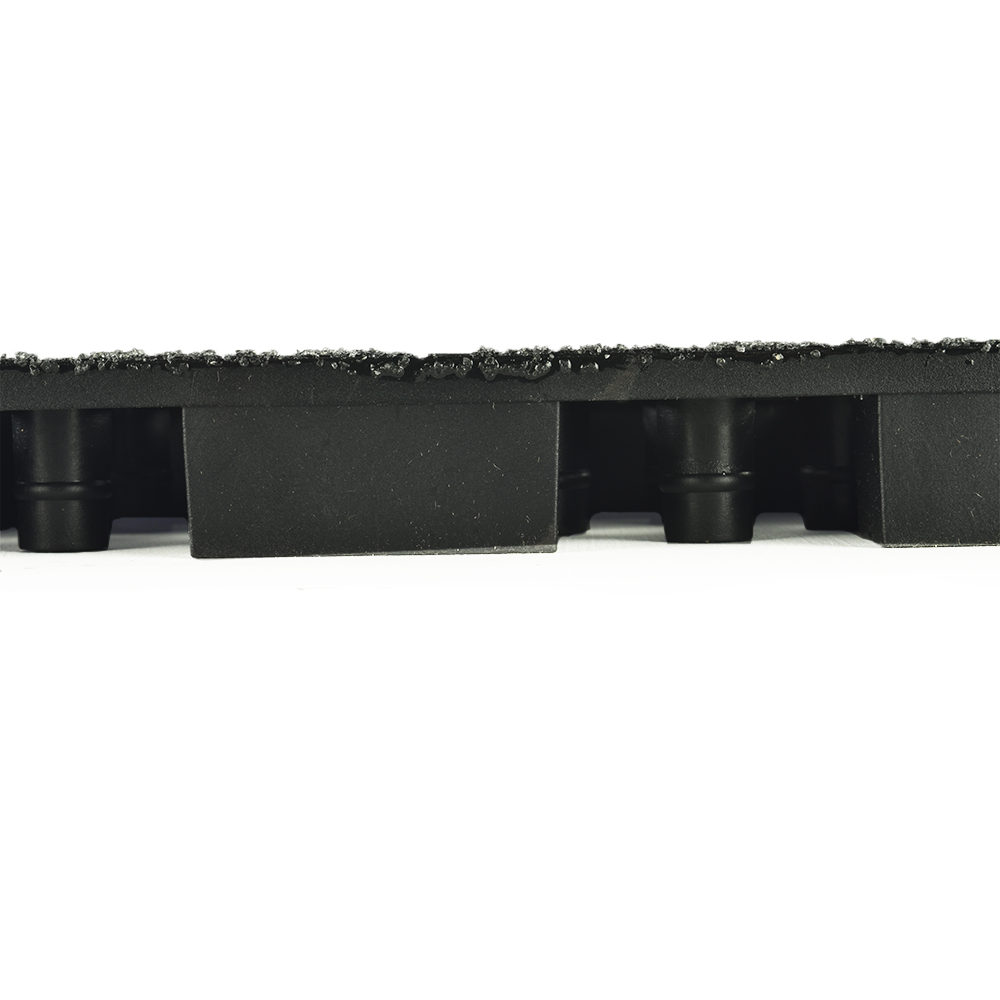

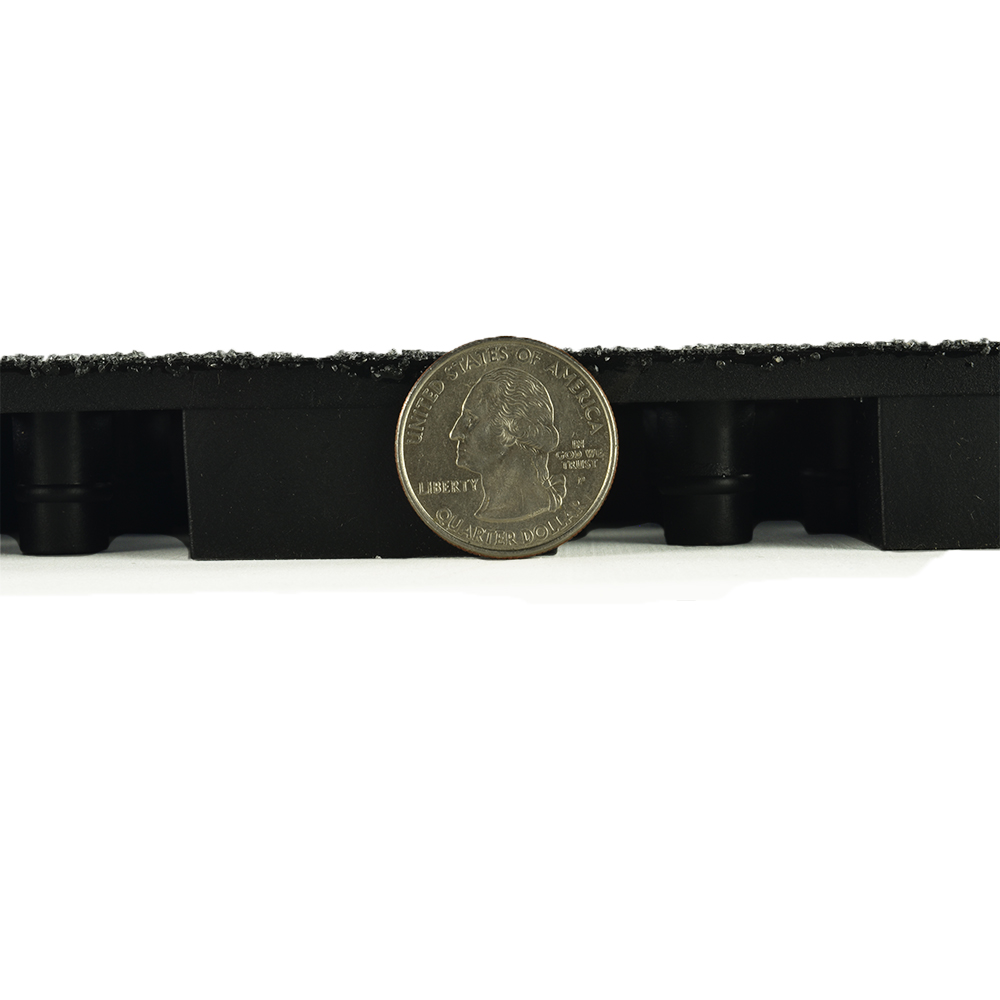

  • Thickness: 7/8 inch
  • Tiles per case: 10
  • Coverage: 22.5 square feet per case
  • Weight: 5.4 pounds per tile
  • Color: Charcoal

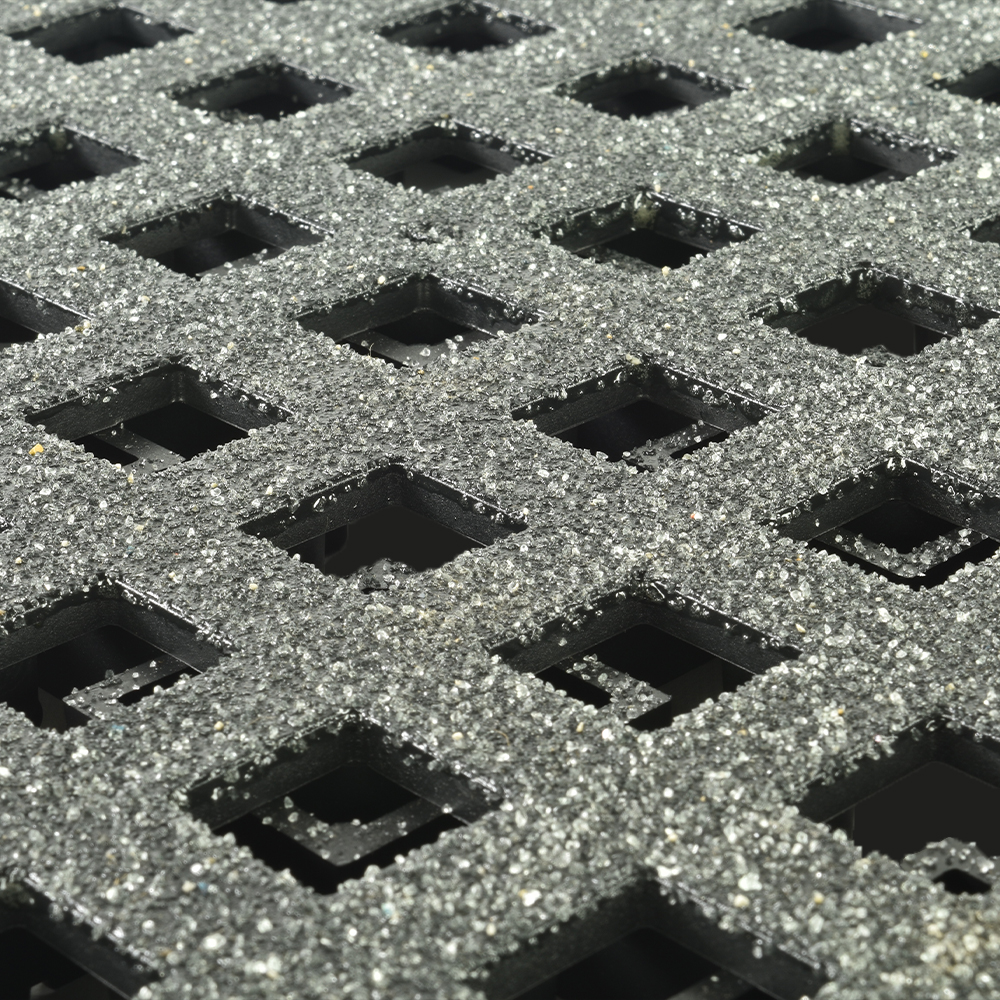

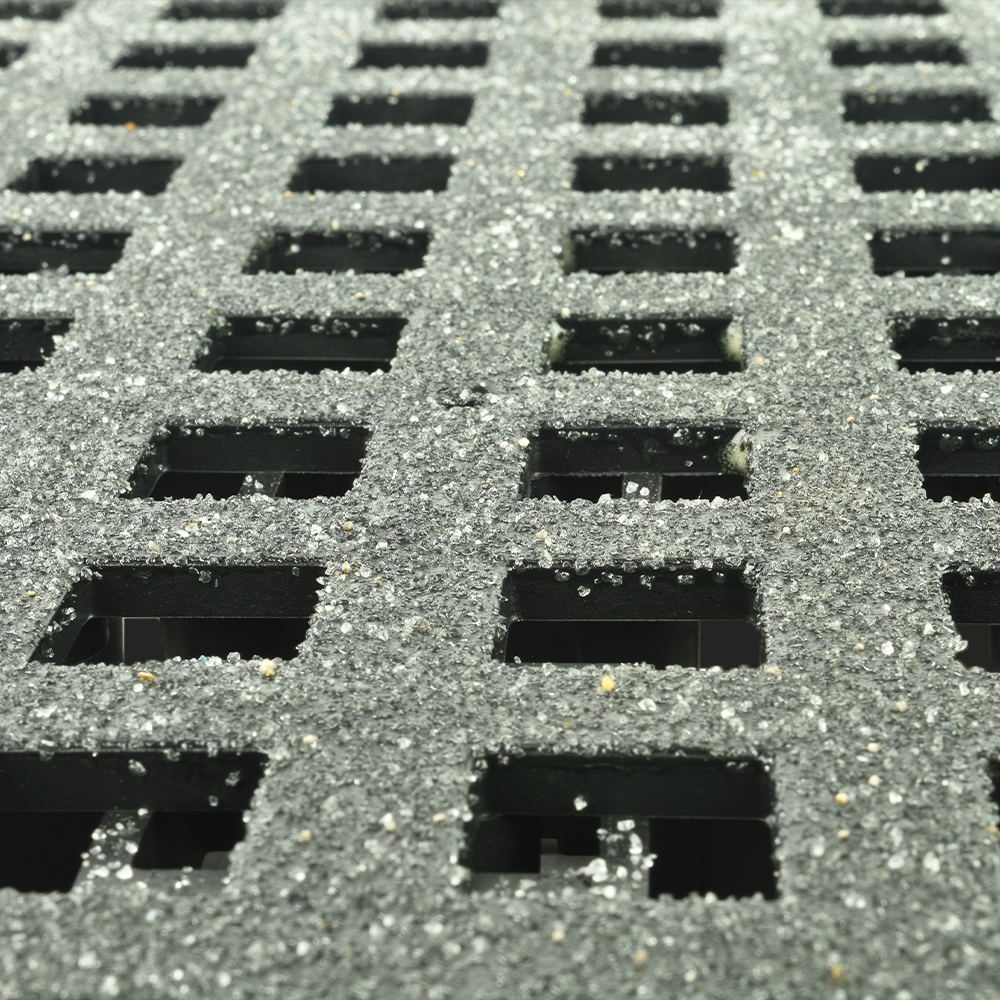

  • Texture: Perforations with a gritted surface

Maintenance and Care

To keep the grit flooring mat in top condition and to provide the sure footing that customers want from these floor mats for manufacturing, regular cleaning is necessary. The grit tiles do not require excessive time spent on cleaning and maintenance, however, which makes them highly beneficial.

Sweeping the mats daily or every few days is the starting point for cleaning the mats. However, because of the gritty surface of these 18x18 mats, sweeping them with a dry mop or a broom is a challenging process, as these tools probably will not fully remove dust and fine particles from the Gritshield layer on the mats. A vacuum may work better.

Another option involves using a high-pressure hose and hot water to rinse the mats. Do not exceed 500 psi with the pressure hose and keep the water temperature at or below 160 degrees Fahrenheit. Do not machine wash or use a steam cleaner on these mats.

When cleaning these perforated floor mats, be sure to clean both sides of the mat. If spilled soil on the surface of the mat goes through the holes, it could cling to the back side of the mat.

After washing both sides of the mat, allow the material to dry naturally in the air. If you have a stand available, you can store the mats vertically, so air can reach both sides adequately.

This product is made from 80% post-industrial recycled material.

Since July 2023 this product is now sold by the case instead of individual tiles.

ErgoDeck is a registered trademark of Wearwell
Gritshield is a trademark of Wearwell


Sweep, damp mop with mild detergent and warm water.


Ships in cartons via ground service to your door, for larger orders product may ship freight delivery

This Product Ships UPS Ground, FedEx Ground and/or Freight.
Please review our shipping disclaimer.

WARNING: This product can expose you to chemicals including Lead and/or Phthalates, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SKU# 565.78x18x18CH-CS10
In Stock Yes
Material Type PVC Plastic
Product Edging Interlocking
Thickness 7/8 inch
Width 1.50 feet
Length 1.50 feet
SF per Item 22.50
Weight 54.00 lbs
Packaging Cartons
Number of Pieces per Package Type 10
Non Absorbent Yes
Special Adhesives No
Universal Interlock No
Interlock Loss 0.00 feet
Interlocking Connections Yes
Made In USA
Surface Finish Raised pattern
Surface Design Solid color
Installation Method Interlocking, dry lay
UV Treated No
Reversible No
Border Strips Included No
LEED Points Yes
Manufacturer Warranty 1 year limited
