LonCoin II Featherweight Vinyl Flooring, sound absorption

LonCoin® II Featherwieght for use in military and specialty vehicle application LonCoin II Featherweight Vinyl Rolls 6 x 60 Ft.

For current installation documents from Lonseal, please visit the Lonseal website here click here.

For General Lonseal Installation Information click here.

Coin Mat Sheet Vinyl Roll

Beyond being lightweight and conserving weight vinyl flooring has a number of specialty features that make it ideal for use in many locations.

FAA Flooring Requirements
When using our vinyl flooring, customers can have confidence in the flooring durability.

It specifically meets FAR 25.853(a), which creates flammability standards for the flooring. This standard ensures the proper level of fire protection in the passenger or crew areas in specialty vehicles.

It meets multiple other flammability specifications, including FMVSS 302, which measures the flammability of interior materials in occupant compartments of vehicles.

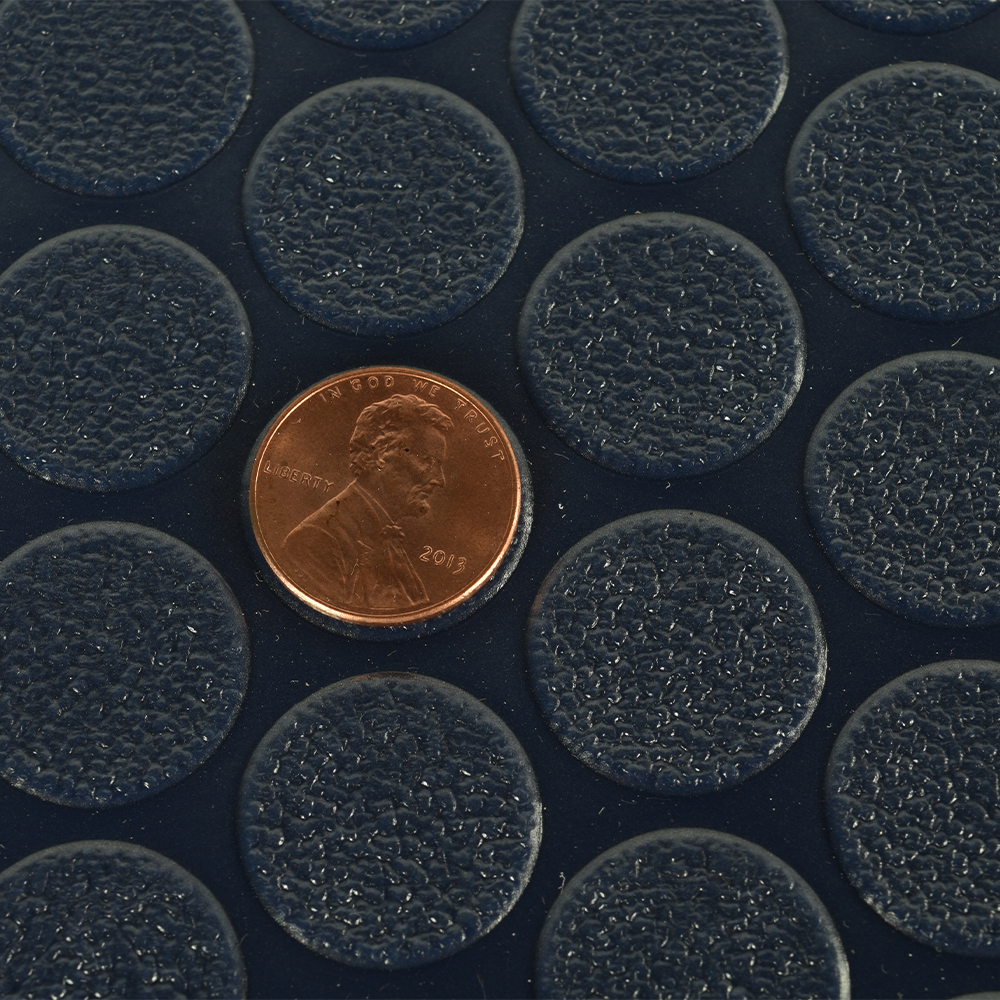

It also meets FAR 25.793, which determines the slip resistance of flooring that could become wet through normal use. The coin mat embossed surface of this flooring delivers a texture that people need, allowing them to maintain their footing.

Noise Resistance
Each roll of our vinyl flooring consists of three different layers, which helps with creating noise resistance and sound absorption.

The flooring has a 0.8 mm wear layer that contains both a clear protective layer across the top and a color layer underneath. The transparent layer allows the color layer to maintain its like-new look, even in an area with high foot traffic, over many years.

The backing layer serves to deliver dimensional stability, measuring between 1.0 mm and 1.5 mm in thickness. The backing layer is thicker in areas where the coin top embossed pattern exists.

Chemical Resistance
The flooring is able to stand up to multiple kinds of spills. Our roll of flooring will have resistance to a number of substances, including:

• Ammonia (5% concentration)

• Bleach (5.25% concentration)

• Citric acid (10% concentration)

• Coffee

• Hand sanitizer

• Hydraulic fluid

• Ketchup

• Mustard

• Red wine

  Eco-Friendly Materials
  Our roll of coin top vinyl contains some recycled content, which helps to keep old vinyl away from landfills.

  This vinyl configuration meets GreenAir requirements for low VOCs, which enhances the indoor air quality in an enclosed spaces.

  Additionally, this flooring will meet GreenMedic specifications, which measures the microbial resistance of the flooring.

  This roll of flooring meets REACH standards set forth by the European Union, which enhances the ability to use it in a small, enclosed area.



  Lightweight Vinyl Flooring Roll Specifications



  • Width: 6 feet

  • Length: 60 feet

  • Thickness: 2.3 mm (about 0.092 inches)

  • Wear layer: 0.8 mm (about 0.032 inches)

  • Coverage: 360 square feet

  • Weight per roll: 230 pounds

  • Weight per linear foot: 3.83 pounds

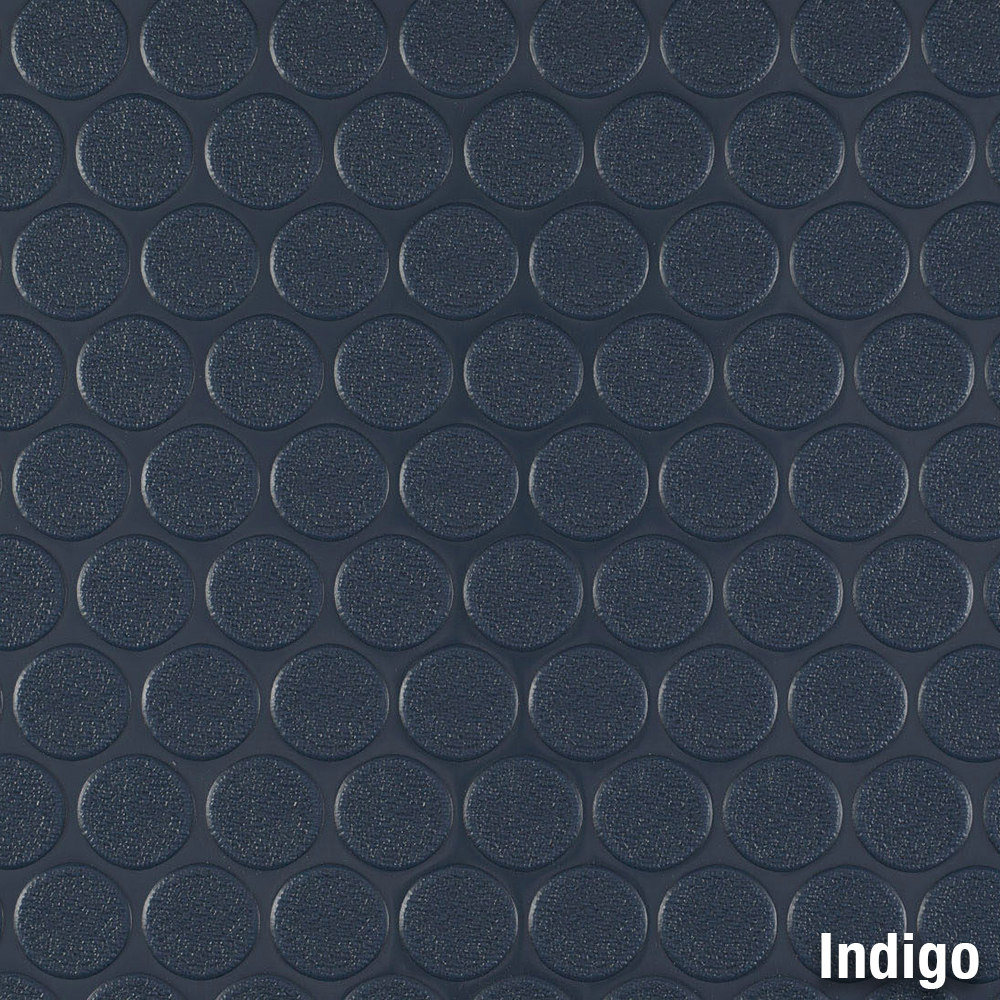

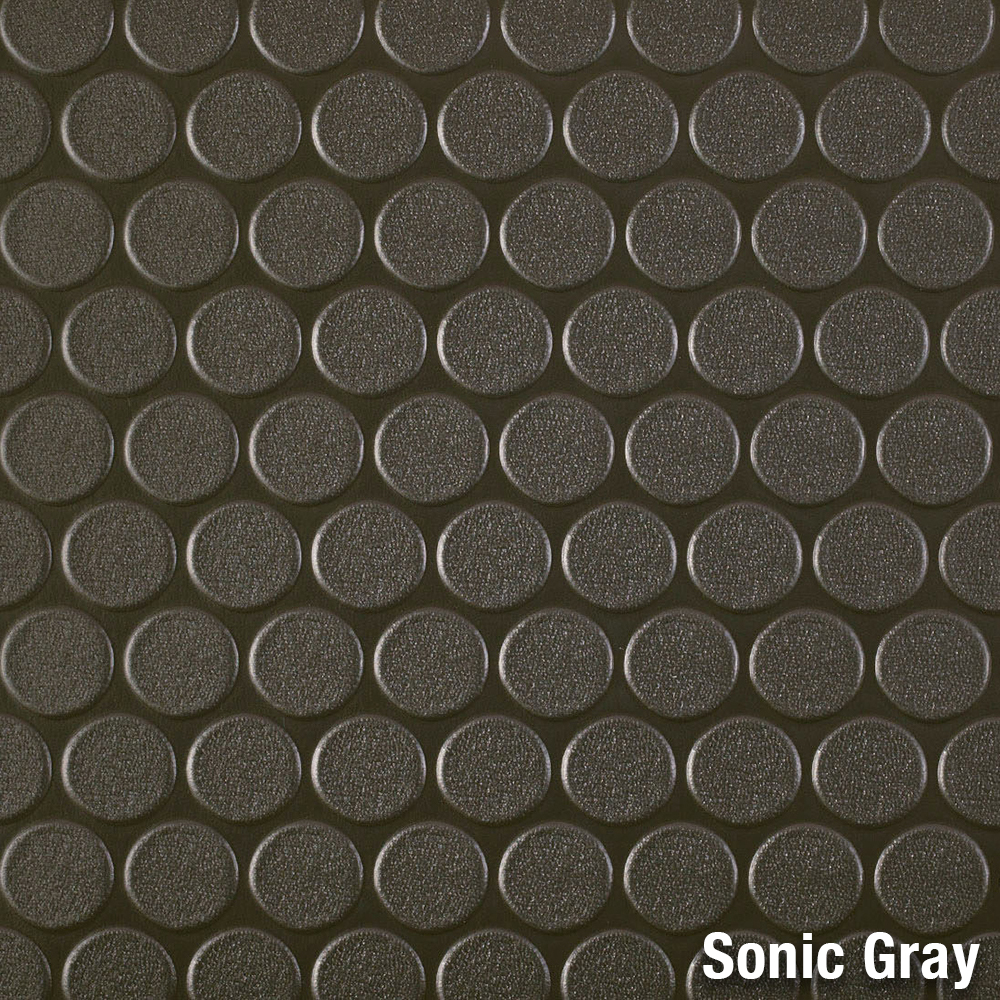

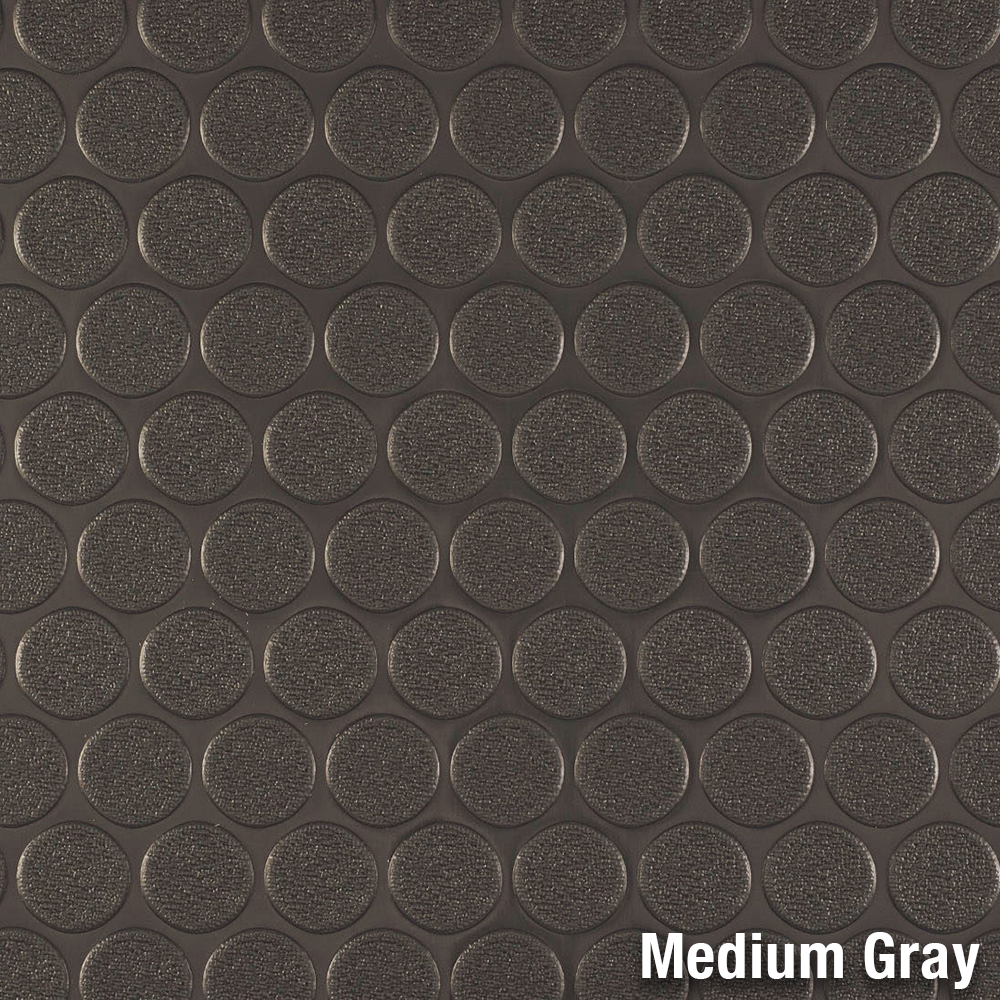

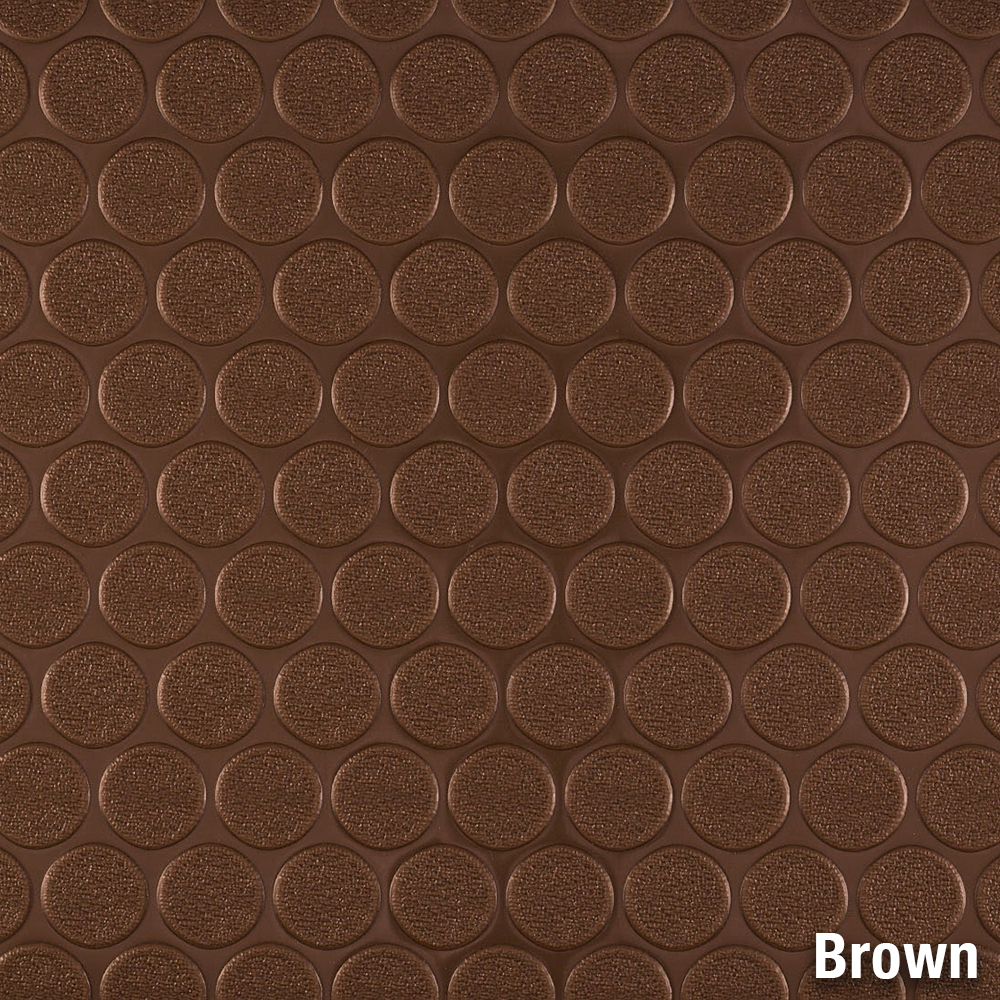

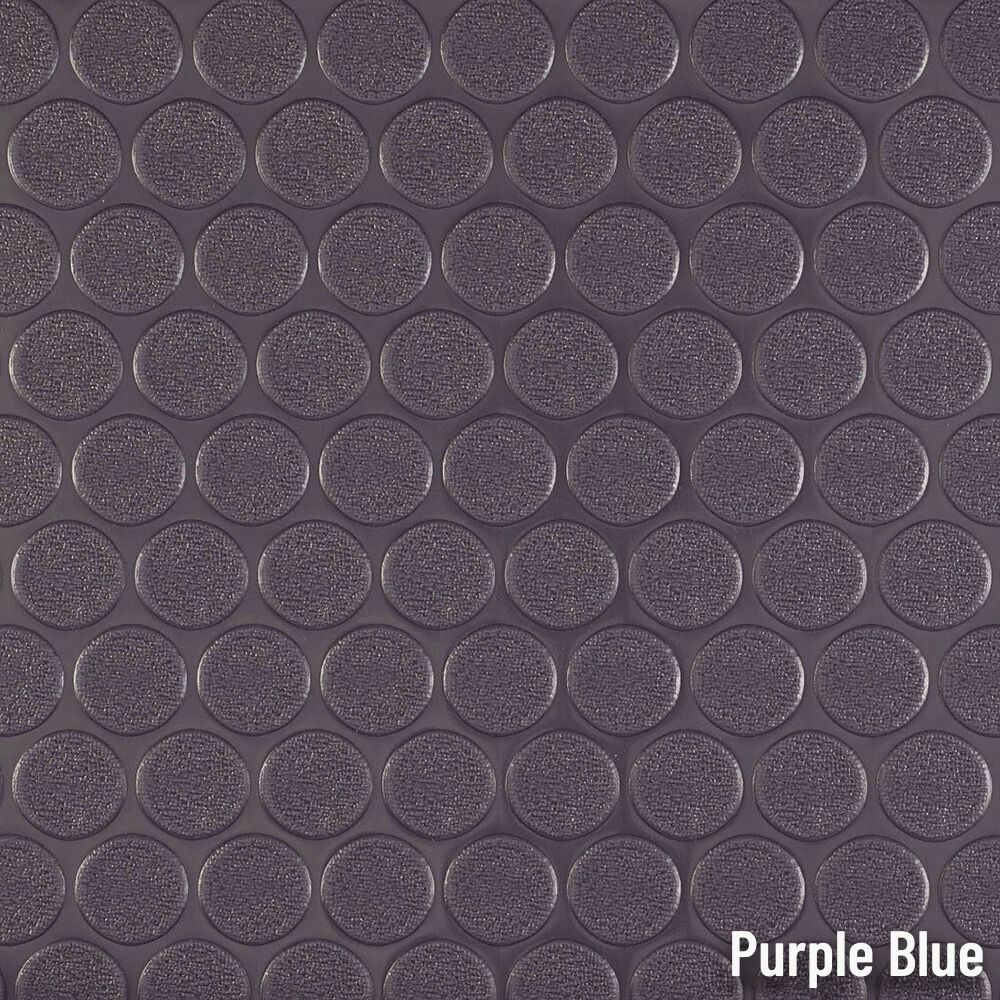

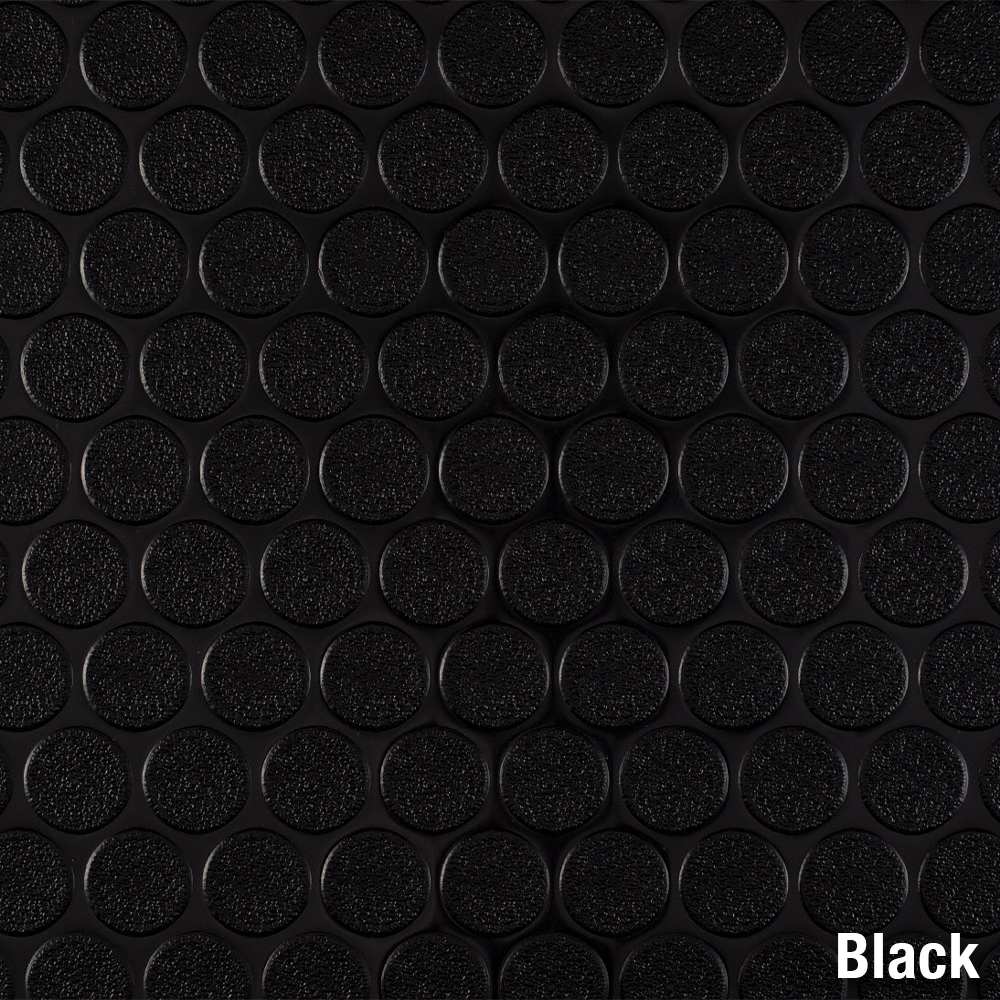

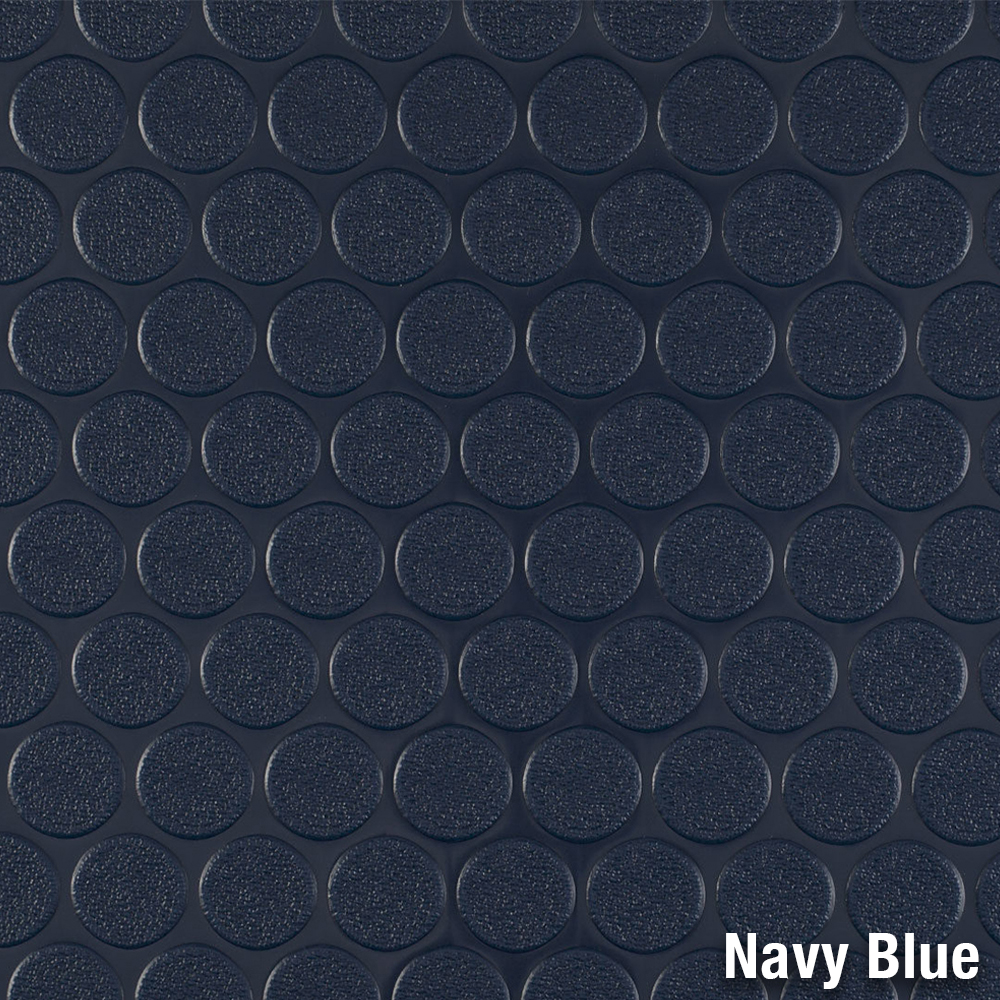

  • Colors: Brown, Black, Sonic Gray, Medium Gray, Cerulean Blue, Dark Blue, Navy Blue, Purple Blue, or Indigo

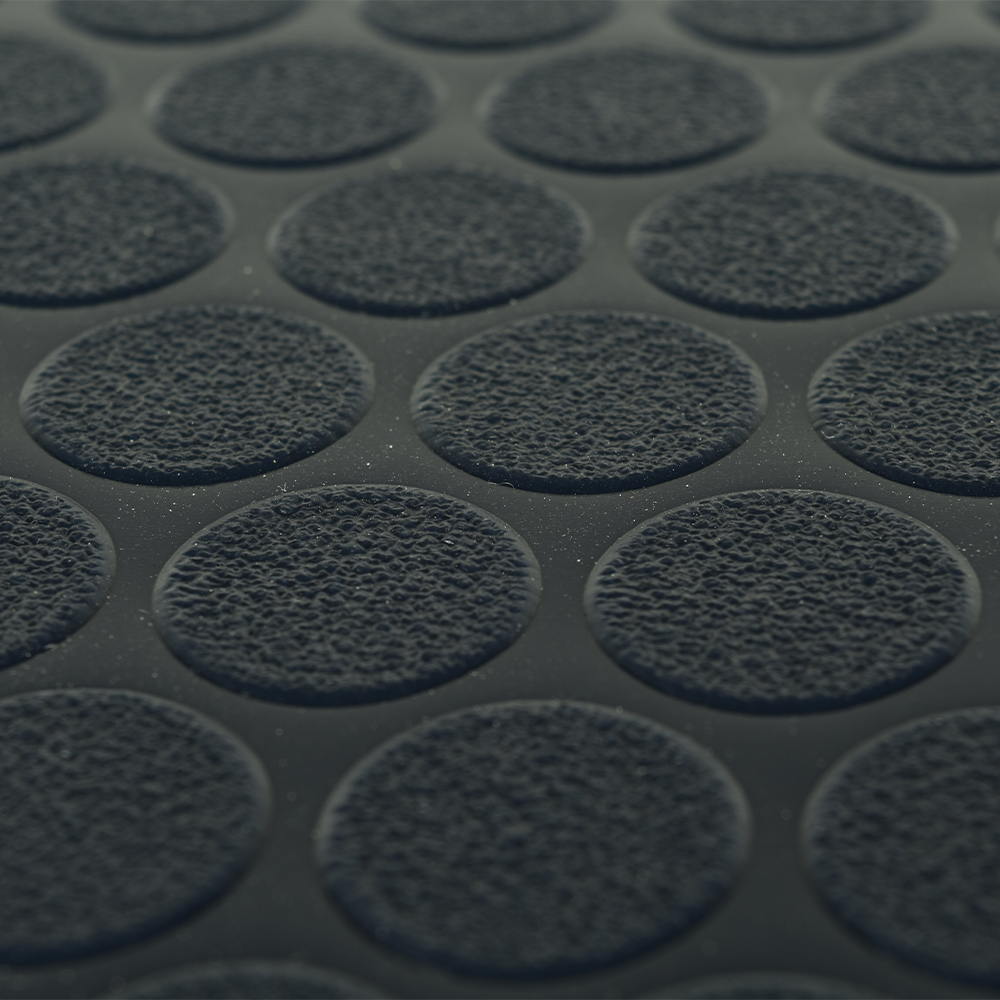

  • Texture: Embossed coin top surface



  Maintenance and Care


  When used in specialty vehicle, our vinyl flooring is an excellent choice because it only requires occasional cleaning. Depending on the type of use case, people may need to clean this flooring daily, weekly, or somewhere in between.

  The majority of customers will want to sweep or vacuum this floor on a daily basis. Removing dry solids and dust from the floor will reduce the possibility of staining over time, meaning customers do not have to perform more thorough cleanings as often.

  When you need to remove stains, customers may use a mop or an auto-scrubbing machine. Mix warm water with a neutral pH cleaner at a dilution ratio that the cleaner manufacturer recommends. If using an auto-scrubber, keep the machine’s setting at a low speed of 300 rpm or less.

  After washing the floor, allow it to air dry over a few hours or remove excess liquid with a wet/dry vacuum.

  If you encounter sticky substances on the Lonseal flooring, you have the option of removing them with a putty knife. Do not use too much force with the putty knife, or you could scratch or damage the vinyl.

  *Sonic Gray and Cerulean Blue have a pearlescent tone, shifting hues as the angle of view changes. Please request a sample swatch for color accuracy.



  Shipping

  Ship via freight delivery

  This Product Ships Freight Only.
  Please review our shipping disclaimer.

  WARNING: This product can expose you to chemicals including Lead and/or Phthalates, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SKU#	LS-LoncoinII-FW
In Stock	Yes
Product Type	Roll
Material Type	Vinyl
Product Edging	Straight
Thickness	2.3 mm
Width	6.00 feet
Length	60.00 feet
SF per Item	360.00
Weight	230.00 lbs
Packaging	Shrink Wrapped on Pallets
Number of Pieces per Package Type	9
Non Absorbent	No
Special Adhesives	Yes
Interlock Loss	0.00 feet
Interlocking Connections	No
Made In	Japan
Surface Finish	Coin
Surface Design	Solid color
Installation Method	Glue down, weld seams
UV Treated	No
Reversible	No
Border Strips Included	No
LEED Points	Yes
Floor Score	No
Green Label	No
Manufacturer Warranty	Limited manufacturer warranty
