LonMat XL Vinyl Rolls 8 x 40 Ft

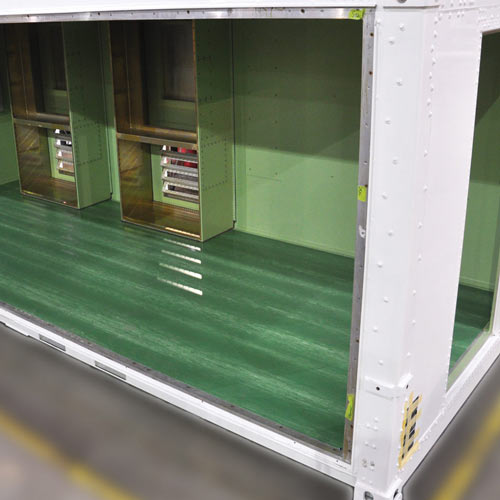

LonMat XL Install 2
LonMat XL Install 1
LonMat XL Green Marble full
Be the first to review this product
Save 15%
Reg: $2,376.97/roll
Handling Time Estimate: 4-6 Working Days
  • Electrocution protection
  • Used by the Military
  • Meet MIL-DTL-15562G, Type II specifications
  • See More Details
  • Green Marble

Please select a swatch from above

How Much Flooring Do I Need?
Request Sales Quote
Please Call for Sample Options
  1. Electrocution protection
  2. Used by the Military
  3. Meet MIL-DTL-15562G, Type II specifications
  4. Fire retardant
  5. Green marbleized surface
  6. 8 ft width
  7. Long lasting
  8. Easy to maintain


NOTE: This item is a custom order and is not returnable.

Lonmat® XL, electrically insulated surface

LonMat® XL is used by the military to protect from electrocution is tested to MIL-DTL-15562G, TYPE II military switchboard matting.

Lonmat® XL, Electrically Insulated Surface

The LonMat XL fire retardant flooring is a product used by the military to protect from electrocution. It’s a TYPE II military switchboard matting option.

This fire retardant lonseal flooring offers safety and protection in settings needing electrocution protection. The switchboard safety mats/sheet vinyl matting system is long lasting, easy to maintain, and suitable for numerous military settings. It’s an electrical-grade floor covering rated for MIL-DTL-15562G, Type II specifications. This green marbleized surface can be used in any indoor space where fire resistant mats are required. It’s a product that adequately safeguards workers from electrocution by interrupting the path of electricity to the ground. Type II switchboard matting is used on ship decking and electrified equipment where maintenance and operations personnel are hard at work.

The LonMat® XL strong, marbleized, electrical-insulated surface has been used on countless naval vessels' and high-voltage areas for years. It is an electrical-grade fire retardant flooring product that protects workers from being electrocuted by disrupting the path of electricity to the ground.

Lonmat® XL, Fire Retardant Flooring Specs

LonMat® XL is available exclusively in green marble. These 8 feet wide by 40 feet long fire retardant flooring rolls have an overall thickness of 3.2 millimeters with a wear layer thickness of 0.064 inches. They have a weight of 1 pound per square foot, for a total weight of 335 pounds. Each roll delivers 320 square feet of coverage.

The LonMat XL rolls have a smooth surface finish and a marble surface design. They are installed using a glue down, welded seam method. The surface is not non-absorbent, and it has not been UV treated. It is not reversible, and there are no border strips included. It’s a product that carries a limited lifetime warranty.

This product is one that is an electrical-grade floor covering rated for MIL-DTL-15562G, Type II specifications.The MIL-DTL-15562G specification for insulating switchboard matting and sheet floor covering is designed for use around electrical apparatus and circuits. This specification is approved for use by the Department of the Navy and is available for use by all departments and agencies of the Department of Defense. Dimex™ MIL-DTL-15562G Switchboard Matting and sheet floor covering meets the additional property specifications for performance of Oxygen Bomb Aging, Sulfuric Acid, and Ultraviolet Light Exposure.

The LonMat XL product is also fire retardant, which means it can be used to slow down or stop the spread of fire or reduce its intensity by reducing the flammability of fuels and delaying their combustion.

Lonmat® XL, Fire Retardant - Manufacturing Details

LonMat XL is a Lonseal product. Lonseal specializes in resilient sheet vinyl flooring, known for durability, practicality, and value. The flooring is made of vinyl, which is an extremely versatile component that creates flexible yet durable flooring.

Vinyl is environmentally friendly. Its primary raw material is obtained from the nearly inexhaustible supply of sodium chloride (salt). When it is made, it has a smaller impact than other plastics, produces virtually no dioxins, and relies on fewer oil by-products than rubber. Vinyl is naturally fire retardant, highly recyclable, and products can be easily manufactured to meet strict indoor air quality (IAQ) requirements.

This flooring offers consistency in performance. It offers improved slip resistance and wear resistance. It provides superb comfort underfoot, which is beneficial to those who spend a lot of time standing or walking. It will also withstand heavy loads and high traffic, recovering over time and demonstrating its resilience.

Lonmat® XL, Fire Retardant Flooring Installation

For current installation documents from Lonseal, please visit the Lonseal website, click here.
For General Lonseal Installation Information click here.

Lonmat® XL, The Best Fire Retardant Flooring

This top notch, commercial grade military flooring solution is a high performing, attractive solution that is suitable for so many applications. For more information, reach out to the customer service team at Greatmats. They can answer your questions and offer assistance placing your order.

Glazing of the welding thread is required.


Ships via freight delivery

This Product Ships Freight Only.
Please review our shipping disclaimer.

WARNING: This product can expose you to chemicals including Lead and/or Phthalates, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SKU# LS-lonmatxl
In Stock Yes
Product Type Roll
Material Type Vinyl
Product Edging Straight
Thickness 3.2 mm
Width 8.00 feet
Length 40.00 feet
SF per Item 320.00
Weight 335.00 lbs
Packaging Shrink Wrapped on Pallets
Number of Pieces per Package Type 9
Non Absorbent No
Special Adhesives No
Interlock Loss 0.00 feet
Interlocking Connections No
Made In Japan
Surface Finish Smooth
Surface Design Marble
Installation Method Glue down, weld seams
UV Treated No
Reversible No
Border Strips Included No
Floor Score No
Green Label No
Manufacturer Warranty Limited manufacturer warranty
Welding Thread 500 LF - LonMat XL
Welding Thread 500 LF - LonMat XL $158.95 /each $187.00
