Conductive Diamond Foot 4x75 feet

Conductive Diamond Foot 4x75 feet Black
/images/apache/conductive-diamond-foot/conductive-diamond-foot-black.jpg

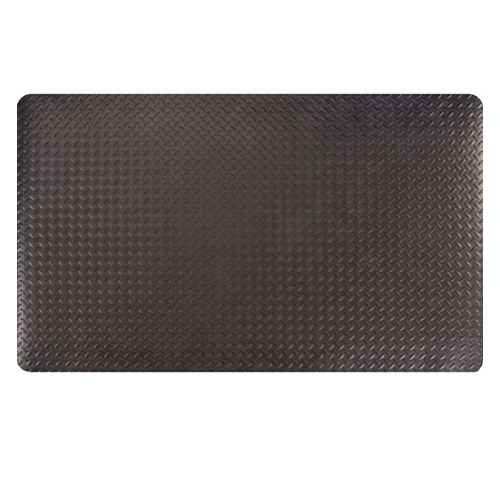

Conductive Diamond Foot Industrial Mat full
/images/apache/conductive-diamond-foot/conductive-diamond-foot-small-mat-full.jpg

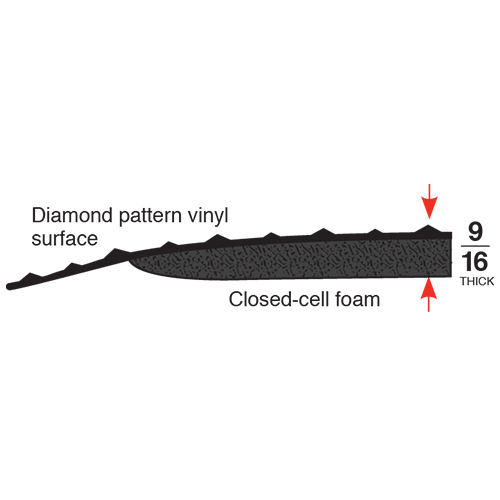

Conductive Diamond Foot Industrial Mat diagram
/images/apache/conductive-diamond-foot/conductive-diamond-foot-diagram.jpg
Be the first to review this product
$4,043.69/mat
Save 19%
$13.48/sqft
Reg: $5,054.61/mat
Handling Time Estimate: 11-14 Working Days
  • Conductive diamond vinyl surface
  • Prevents damage to sensitive electronic equipment
  • Grounding snap installed on all standard mats if requested
  • See More Details

Colors:

  • Black

Please call 877-822-6622 to backorder this product.

Pickup
Delivery
Request Sales Quote
Please Call for Sample Options
  1. Conductive diamond vinyl surface
  2. Prevents damage to sensitive electronic equipment
  3. Grounding snap installed on all standard mats if requested
  4. RTT - 10,000 - 100,000 ohms RTG - 10,000 - 100,000 ohms
  5. Closed-cell foam provides comfort and relief
  6. Diamond pattern vinyl surface is durable and long lasting
  7. Electrically conductive matting
  8. Made in the USA

Packing and Shipping, Automotive, Maintenance, Industrial Fatigue Mats

NOTE: This item is a custom order and is not returnable.

This 9/16 inch thick Conductive Diamond Foot 4x75 feet durable and long-lasting conductive anti-fatigue matting provides comfort and relief for aching feet and legs. This mat is used for industrial workstations that are receptive to static electricity.

This fatigue mat features a vinyl surface with a closed-cell foam bottom layer. It features beveled edges to reduce tripping hazards.

The industry-favorite diamond pattern provides an abrasion and slip-resistant surface. Snap installed if requested.

ESD Ratings


ESD Matting has three classifications: electrically conductive, static dissipative, and anti-static. The Conductive Diamond Foot Mat is rated as electrically conductive which accepts static electricity the quickest.

RTT - 104 - 105 ohms
RTG - 104 - 105 ohms

Chemical Resistance Testing


Results may vary depending on the concentration of chemicals.
No effect: butyl alcohol, animal fats
Little effect: sodium hydroxide, vegetable oil
Moderate effect: acetic acid, acetone, chlorine, water-based cutting fluid, soluble oil cutting fluid, diesel, gasoline, mineral oil, diluted nitric acid, transmission fluid, toluene, trichloroethane
Not recommended: brake fluid, MEK, sulfuric acid, xylene

Custom cut lengths available. Contact Customer Service for more information.

Shipping

This Product Ships UPS Ground, FedEx Ground and/or Freight.
Please review our shipping disclaimer.

SKU# A600-39-465-4x75
In Stock Yes
Product Type Mat
Material Type Vinyl bonded Foam
Product Edging Straight
Thickness 9/16 inch
Width 4.00 feet
Length 75.00 feet
SF per Item 300.00
Weight 348.00 lbs
Packaging Cartons
Non Absorbent Yes
Special Adhesives No
Interlock Loss 0.00 feet
Interlocking Connections No
Made In USA
Surface Finish Vinyl
Surface Design Solid Color
Installation Method Lay flat
UV Treated No
Reversible No
Border Strips Included No
