Outdoor Field Wall Padding for Chain Link Fences 3 ft x 4 ft

Outdoor Field Wall Padding for Chain Link Fences 3 ft x 4 ft Vikings.
/images/wall-pads/outdoor-field-wall-padding-vikings.jpg
Outdoor Field Wall Padding for Chain Link Fences 3 ft x 4 ft Dolphins.
/images/wall-pads/outdoor-field-wall-padding-dolphins.jpg
Outdoor Field Wall Padding for Chain Link Fences 3 ft x 4 ft Cowboys.
/images/wall-pads/outdoor-field-wall-padding-cowboys.jpg
Outdoor Field Wall Padding for Chain Link Fences 3 ft x 4 ft green pad.
/images/wall-pads/outdoor-field-wall-padding-green.jpg
Outdoor Field Wall Padding for Chain Link Fences 3 ft x 4 ft mounting plate.
/images/wall-pads/outdoor-field-wall-padding-mount-chainlink.jpg
Outdoor Field Wall Padding for Chain Link Fences 3 ft x 4 ft chain link fences
/images/wall-pads/sportsfield-wall-padding-chain-link-diagram.jpg
Outdoor Field Wall Padding for Chain Link Fences 3 ft x 4 ft backer plate diagram
/images/wall-pads/sportsfield-wall-padding-backer-plate-diagram.jpg
Be the first to review this product
$296.40/each
Save 5%
$24.70/sqft
Reg: $312.00/each
Handling Time Estimate: 4-6 Weeks
  • 19 oz. outdoor premium vinyl covering
  • 3-inch polyurethane foam interior
  • 3/4 inch moisture resistant composite backing board
  • See More Details

Colors:

  • Black
  • Burgundy
  • Emerald
  • Grey
  • Red
  • Royal Blue
  • Yellow
  • Purple
  • Blue
  • Dark Blue
  • Forest Green
  • Green
  • Navy Blue
  • Orange

Please call 877-822-6622 to backorder this product.

Request Sales Quote
Please Call for Sample Options
  1. 19 oz. outdoor premium vinyl covering
  2. 3-inch polyurethane foam interior
  3. 3/4 inch moisture resistant composite backing board
  4. Large selection of color choices
  5. Bolt and plate attachment method
  6. High UV resistant vinyl cover
  7. Made in the USA
  8. Graphics available for additional cost

Sports Field Padding, Baseball and Softball Fields, Football Fields, Outdoor Playground Walls, Chain Link Fence Padding

NOTE: This item is a custom order and is not returnable.

Bolt on Outdoor Field Wall Padding for Chain Link Fences 3 ft high x 4 ft wide provides safety and quality for athletes playing outdoor sports like baseball, football, and softball. This field wall padding option is a top choice for high school and little leagues.

Our 3x4 foot chain link fence padding is made with a 19 oz. UV-resistant extruded vinyl covering. This fence padding features 3-inch-thick high-impact polyurethane foam padding and a 3/4-inch-thick moisture-resistant composite board for internal structural support. It is a time-tested, proven product that provides facilities with an affordable safety solution.

The vinyl cover is folded around the backside of the plywood backing and stapled every 3 inches. The staples are made of stainless steel to help prevent corrosion. Each pad has 3 weep holes to evacuate moisture to increase the longevity of the outdoor wall mat.
The filler foam is glued to the plywood backing to ensure the foam stays in place. The adhesive used in this padding is a resin rubber base adhesive with a high flexibility factor. The glue is water resistant as well as heat and cold resistant and also has a high bonding factor.

The chain link fence padding comes in a wide range of sizes and colors, letting them perfectly match a school's home team colors. In addition, we offer custom digital-printed graphics and lettering with our 3x4 chain link fence padding products, allowing teams to proudly display their logos and team names. Additional charges apply for logos and graphics, please call for a quote.

Product Components


Backing:
  • Material: 3/4 inch Square Edge AdvanTech Water Resistant Sheathing Panel
  • All sides stained and sealed with exterior grade finish
  • Exposed plywood surface is painted to match the vinyl color


Vinyl covering:
  • Total Weight: 19 oz/sq yd (ASTM D3776)
  • Construction: 18x18, 1300 x 1300 Denier
  • Grab Tensile: Warp 750 lb/2'', Fill 655 lb/'' (ASTM D5034)
  • Tongue Tear: Warp 154 lb/in, Fill 135 lb/in (ASTM D2261)
  • Adhesion: 38 lb/2'' (ASTM D571)
  • High UV resistance
  • Cold crack: -30 degrees Fahrenheit (ASTM D2136)
  • Rot, mildew, and fungus resistant


Foam interior:
  • 3-inch high impact 1580 polyurethane foam
  • Density: 1.45 - 1.55 pct (ASTM D3574)
  • Resilience (% Rebound): 40 - 48 (ASTM D3574)
  • Tear Resistance: 1.5 - 2.5 lbs/in (ASTM D3574)
  • Flammability: Passes with Class 1 Fabric


Installation Method

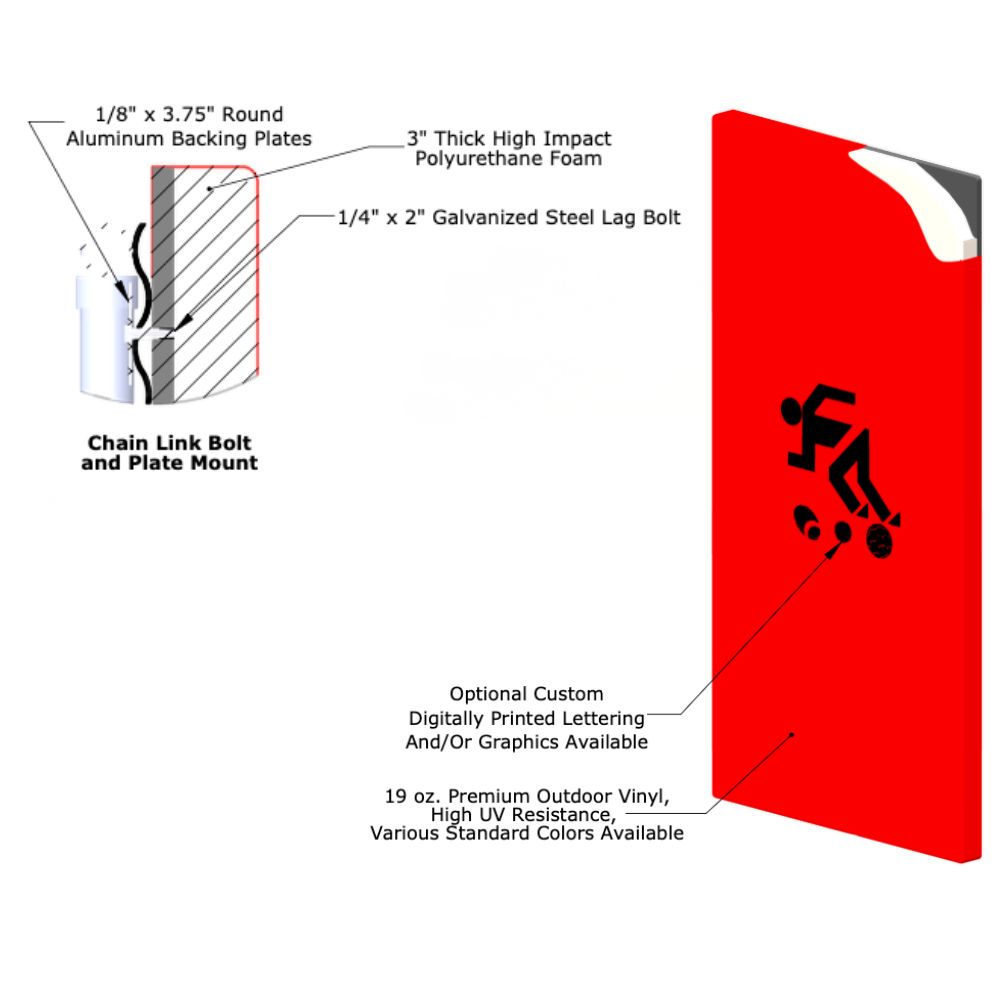

Outdoor Field Wall Padding for Chain Link Fences is installed on chain link fences with bolt and plate attachment brackets. This product is attached by 1/4'' x 2'' galvanized steel lag bolts and 1/8'' x 3.75'' aluminum backer plates. The bolts are made with high-quality stainless steel to prevent corrosion from the elements.

If wall padding needs to be installed on concrete or wood walls, we offer Outdoor Field Wall Padding Z-Clip products that are designed to be installed on solid walls or pads with grommets.

Wall pads are available in custom sizes. Please call to order.

Maintenance

Wipe down as needed.


Shipping

Ships via freight delivery shrink-wrapped on pallets.

Please review our shipping disclaimer.

SKU# FWPCLHI43
In Stock Yes
Product Type Mat
Material Type Vinyl covered Foam
Product Edging Straight
Thickness 3-3/4 inch
Width 4.00 feet
Length 3.00 feet
SF per Item 12.00
Weight 30.75 lbs
Packaging Shrink Wrapped on Pallets
Non Absorbent Yes
Interlock Loss 0.00 feet
Interlocking Connections No
Made In USA
Surface Finish Smooth flat
Surface Design Solid color
Installation Method Bolt and plate
UV Treated Yes
Reversible No
Border Strips Included No
Manufacturer Warranty 1 year limited

Currently, there are no questions for this product.
