Safety Wall Pad 1x5 Ft x 2 Inch WB LipTB ASTM

- Certified OSB
- Impact rated polyethylene foam
- Class A fire rated PVC Vinyl
- See More Details
-
Brown -
Royal Blue -
Navy Blue -
Pool Blue -
Black -
Purple -
Forest Green -
Pink -
Gray -
Yellow -
Orange -
Red -
Maroon -
Camel -
White -
Dark Gray -
Carolina Blue
VIDEOS
TOP FEATURES
- Certified OSB
- Impact rated polyethylene foam
- Class A fire rated PVC Vinyl
- 2 inch thick foam
- 18 oz vinyl covering
- Meets ASTM2440 Standards
- LEED certification
- Contains at least 60% recycled pre-consumer raw material
Use Types

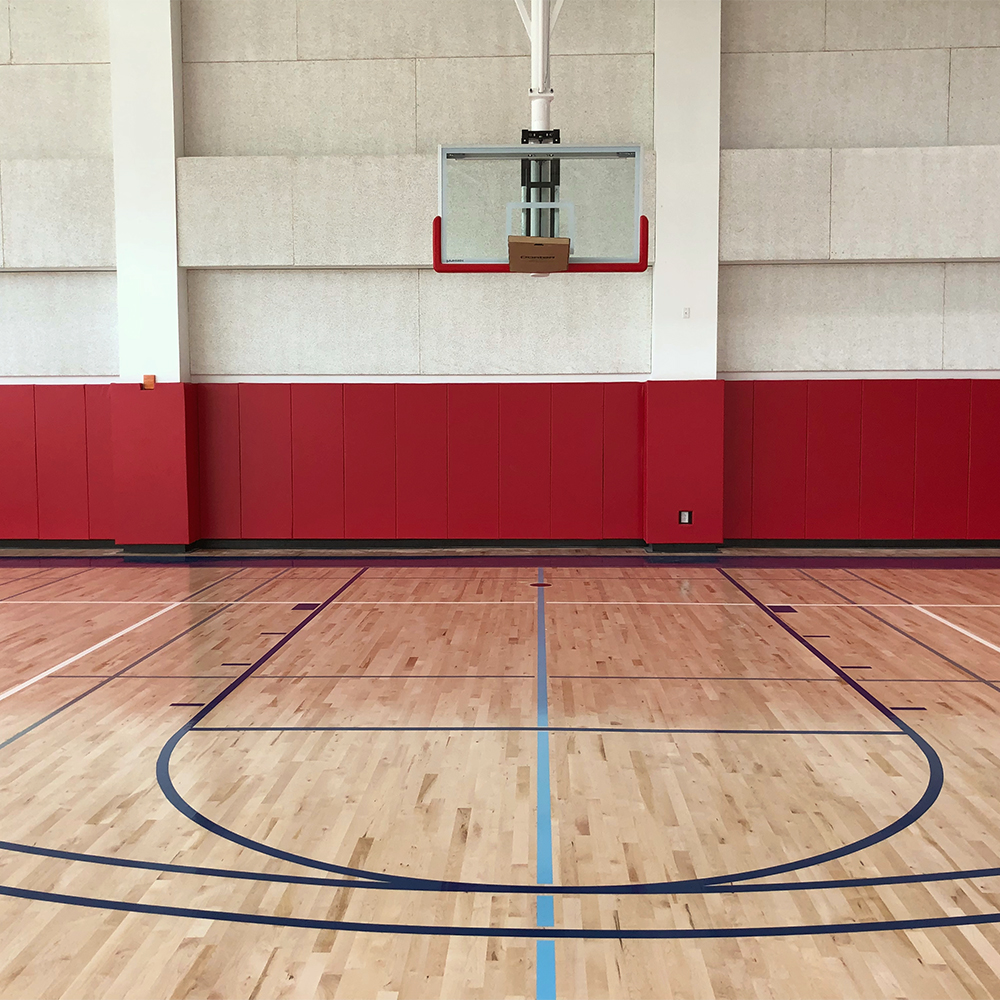

Gym Wall Pads, Basketball Court Walls, School Wall Pads, Wrestling Rooms, Martial Arts, Combat Training, Safe Rooms, Door Pad, Window Pad
Safety Wall Pad 1x5 Ft x 2 Inch WB LipTB ASTM - Class A PVC vinyl 18 oz
Impact safety wall pads are an indoor stationary Safety Wall Pad 1x5 Ft x 2 Inch WB LipTB ASTM, intended for direct wall connection.
Safety Wall Pad 1x5 Ft x 2 Inch WB LipTB ASTM is an indoor stationary wall padded panel, intended for direct wall connection. The panel is a wood backed pad with a 2 inch Impact rated polyethylene foam bonded together using a two-part adhesion process. The panel is then covered front and sides with a Class A PVC vinyl, then firmly stapled onto the wooden backing of the panel.
Components
1. Backer Board: Not less than 7/16-inch- (11-mm-) SFI® Certified Responsible Urea Formaldehyde Free recycled composite wood backer board. This portion of the product contributes toward satisfying Credit IEQ 4.4 under LEED.
2. Foam Layer - 2 inch polyethylene foam meets standards for ASTM 2440. The test method quantifies impact in terms of g-max and Head Injury Criterion (HIC) scores. Promotes
closed-loop recycling of post-industrial scrap. Contains at least 60% and up to 100% recycled pre-consumer raw material. The use of pre-consumer recycled material can contribute to LEED® certification points.
3. Covering - 18 oz. laminated leather grain embossed vinyl BACshield: Anti-Mildew, Anti-Fungus, Antimicrobial, Antibacterial treated, UV treated. Passes ASTM E84 (Class A), NFPA-701 & Cal 117 FR tests C.P.S.I.A. Certified.
• USGBC LEED credits
• California 01350 Special Environmenta lRequirements (CDPH)
• California Department of General Service (DGS) Indoor Air Quality Specifications for Open Panel Office Furniture
• Compliant to BIFMA e3 standard credit 7.6.2 and 7.6.3
STANDARD MANUFACTURING
Typical panel to be manufactured at 12 inch width by specified height.
All columns and corners to be pre-fabricated to fit field condition
INSTALLATION
1. 1 inch Nail Margin top and bottom along width edge attached directly to wall using
appropriate hardware for wall type. Refer to ASTM standards for height above finished
floor. 4 inch AFF to bottom of foam current.
Shipping
Ships via freight delivery shrink wrapped on pallets.
This Product Ships Freight Only.
Please review our shipping disclaimer.
WARNING: This product can expose you to chemicals including Lead and/or Phthalates, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
ANSWERS
SPECIFICATIONS
SKU# | SPD1WPI12X60NM |
In Stock | Yes |
Product Type | Mat |
Material Type | Vinyl covered Foam |
Product Edging | Straight |
Thickness | 2 inch |
Width | 1.00 feet |
Length | 5.00 feet |
SF per Item | 5.00 |
Weight | 10.50 lbs |
Packaging | Shrink Wrapped on Pallets |
Number of Pieces per Package Type | 1 |
Non Absorbent | No |
Special Adhesives | Yes |
Interlock Loss | 0.00 feet |
Interlocking Connections | No |
Made In | USA |
Surface Finish | Smooth, Flat |
Surface Design | Solid color |
Installation Method | Direct screw |
UV Treated | Yes |
Reversible | No |
Border Strips Included | No |
