Safety Wall-Door Pad 3x7ft x 2 Inch Z Clip ASTM
Be the first to review this product
$220.31/each
Save 4%
$10.49/sqft
Reg: $231.90/each
Handling Time Estimate: 3-4 Weeks on Average
- Certified OSB
- Impact rated polyethylene foam
- Class A fire rated PVC Vinyl
- See More Details
- Certified OSB
- Impact rated polyethylene foam
- Class A fire rated PVC Vinyl
- 2 inch thick foam
- 18 oz vinyl covering
- Meets ASTM2440 Standards
- LEED certification
- Contains at least 60% recycled pre-consumer raw material
Gym Wall Pads, Basketball Court Walls, School Wall Pads, Wrestling Rooms, Martial Arts, Combat Training, Safe Rooms, Door Pad, Window Pad, Calm Room
NOTE: This item is a custom order and is not returnable.
Safety Wall-Door Pad 3x7ft x 2 Inch Z Clip ASTM - Class A PVC vinyl 18 oz
Impact wall-door pads are an indoor stationary Safety Wall-Door Pad 3x7ft x 2 Inch Z Clip ASTM, intended for direct wall connection.
The right materials to make your project the very safest, the Safety Wall-Door Pad 3x7ft x 2 Inch Z Clip ASTM comes on certified OSB, Impact rated polyethylene foam, and Class “A” fire rated PVC vinyl. Pads are easy to install, the 7/16 inch oriented strand board is covered in 2 inch thick Impact rated polyethylene foam and Class A fire rated 18-ounce vinyl, with a 1 inch nailing margin top and bottom.
Indoor stationary wall-door pad panels, are intended for direct wall connection. The panel is on a wooden back that is then attached to a 2 inch Impact rated polyethylene foam using a two-part adhesion process. The panel is then covered front and sides with a Class A PVC vinyl, then firmly stapled onto the wooden part of the panel.
Components
1. Backer Board: Not less than 7/16-inch- (11-mm-) SFI® Certified Responsible Urea Formaldehyde Free recycled composite wood backer board. This portion of the product contributes toward satisfying Credit IEQ 4.4 under LEED.
2. Foam Layer - 2 inch polyethylene foam meets standards for ASTM 2440. The test method quantifies impact in terms of g-max and Head Injury Criterion (HIC) scores. Promotes
closed-loop recycling of post-industrial scrap. Contains at least 60% and up to 100% recycled pre-consumer raw material. The use of pre-consumer recycled material can contribute to LEED® certification points.
3. Covering - 18 oz. laminated leather grain embossed vinyl BACshield: Anti-Mildew, Anti-Fungus, Antimicrobial, Antibacterial treated, UV treated. Passes ASTM E84 (Class A), NFPA-701 & Cal 117 FR tests C.P.S.I.A. Certified.
Certified Clean Air GOLD
Indoor stationary wall-door pad panels, are intended for direct wall connection. The panel is on a wooden back that is then attached to a 2 inch Impact rated polyethylene foam using a two-part adhesion process. The panel is then covered front and sides with a Class A PVC vinyl, then firmly stapled onto the wooden part of the panel.
Components
1. Backer Board: Not less than 7/16-inch- (11-mm-) SFI® Certified Responsible Urea Formaldehyde Free recycled composite wood backer board. This portion of the product contributes toward satisfying Credit IEQ 4.4 under LEED.
2. Foam Layer - 2 inch polyethylene foam meets standards for ASTM 2440. The test method quantifies impact in terms of g-max and Head Injury Criterion (HIC) scores. Promotes
closed-loop recycling of post-industrial scrap. Contains at least 60% and up to 100% recycled pre-consumer raw material. The use of pre-consumer recycled material can contribute to LEED® certification points.
3. Covering - 18 oz. laminated leather grain embossed vinyl BACshield: Anti-Mildew, Anti-Fungus, Antimicrobial, Antibacterial treated, UV treated. Passes ASTM E84 (Class A), NFPA-701 & Cal 117 FR tests C.P.S.I.A. Certified.
• USGBC LEED credits
• California 01350 Special Environmenta lRequirements (CDPH)
• California Department of General Service (DGS) Indoor Air Quality Specifications for Open Panel Office Furniture
• Compliant to BIFMA e3 standard credit 7.6.2 and 7.6.3
Installation of WB Z-Clip Wall Pads

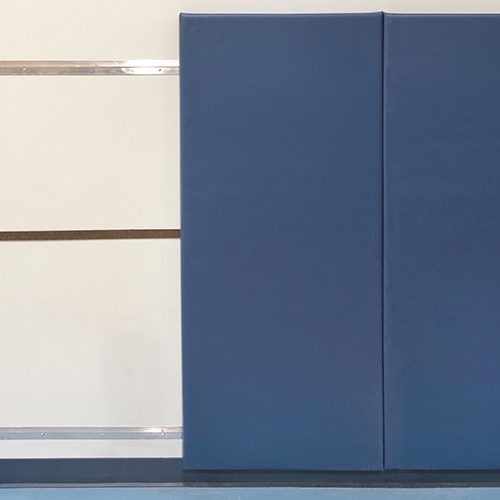

No Nail Margin. Aluminum Z-Clip mounted to wall top and bottom (as aligned with panel size and mounting height) using appropriate hardware for wall type. Opposing Z-Clip mounted to panel. Once hardware is securely fastened to wall and panel, panels can be nested into wall side Z-Clip. 4” AFF to bottom of panel.
STANDARD MANUFACTURING
Typical panel to be manufactured at 24 inch width by specified height.
All columns and corners to be pre-fabricated to fit field condition
Wall pads are available in custom sizes. Please call to order.
Shipping
Ships via freight delivery shrink wrapped on pallets.
This Product Ships Freight Only.
Please review our shipping disclaimer.
WARNING: This product can expose you to chemicals including Lead and/or Phthalates, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
| SKU# | SPD1WPI24-36X72-84ZZ |
| In Stock | Yes |
| Product Type | Mat |
| Material Type | Vinyl covered Foam |
| Product Edging | Straight |
| Thickness | 2 inch |
| Width | 3.00 feet |
| Length | 7.00 feet |
| SF per Item | 21.00 |
| Weight | 44.10 lbs |
| Packaging | Shrink Wrapped on Pallets |
| Number of Pieces per Package Type | 1 |
| Non Absorbent | No |
| Special Adhesives | Yes |
| Interlock Loss | 0.00 feet |
| Interlocking Connections | No |
| Made In | USA |
| Surface Finish | Smooth, Flat |
| Surface Design | Solid color |
| Installation Method | Z-Clip |
| UV Treated | Yes |
| Reversible | No |
| Border Strips Included | No |
| LEED Points | Yes |
