SKU# GFTBestDiamond

Garage Floor Tile Diamond

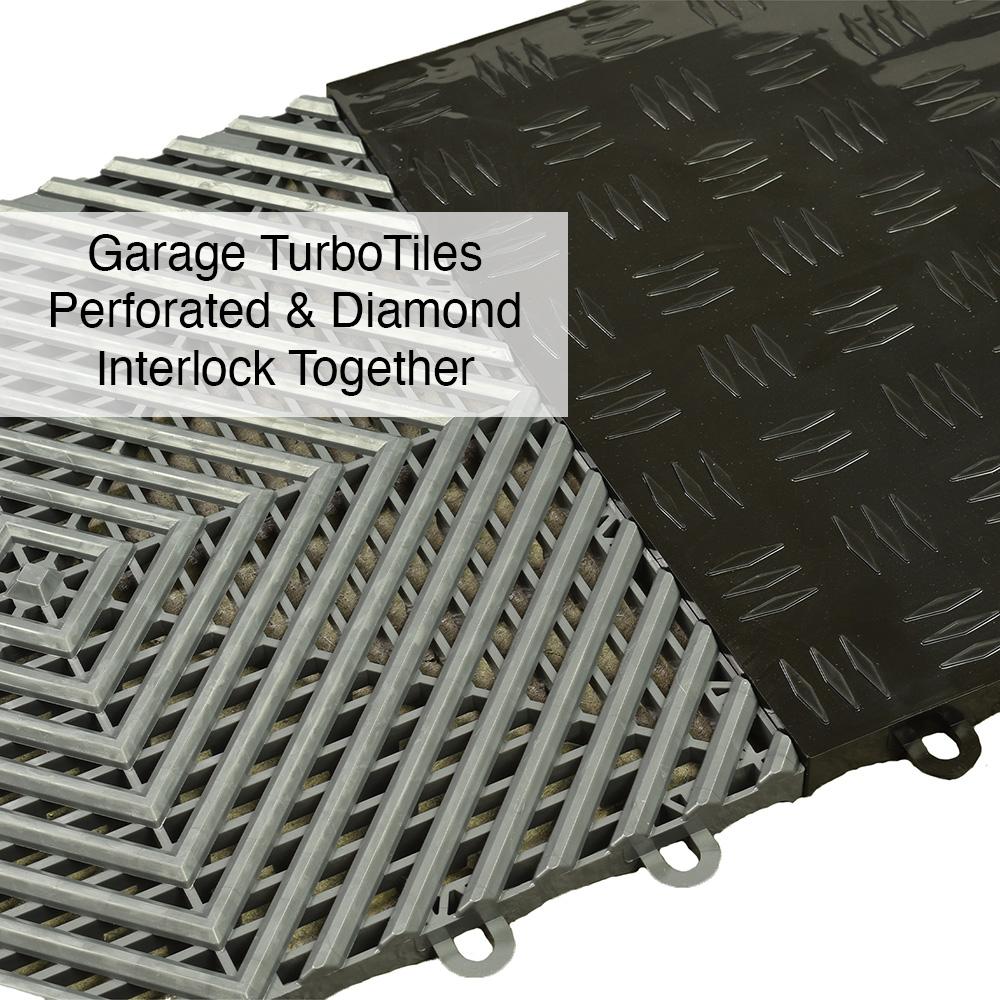

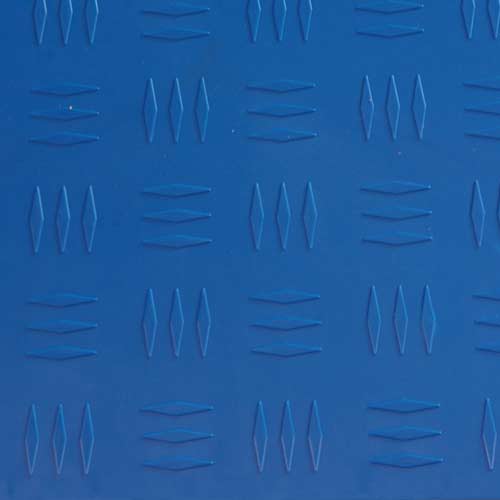

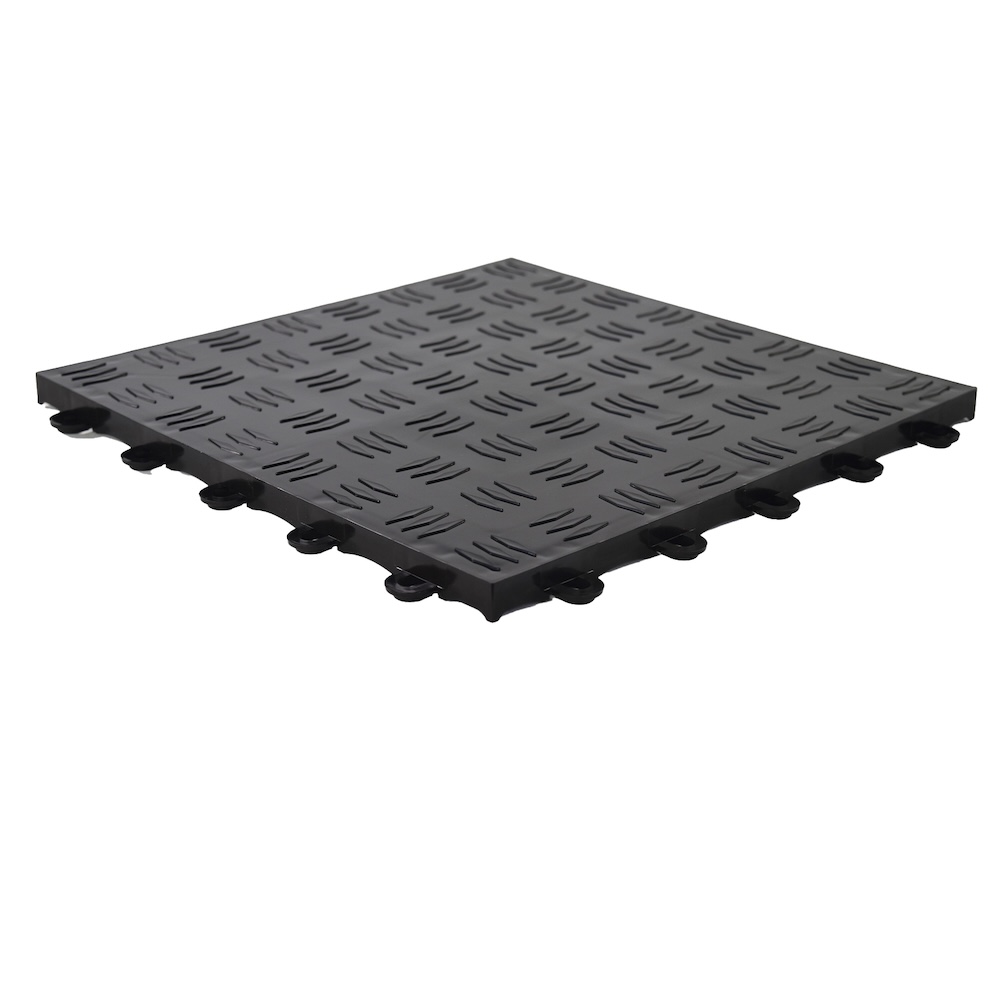

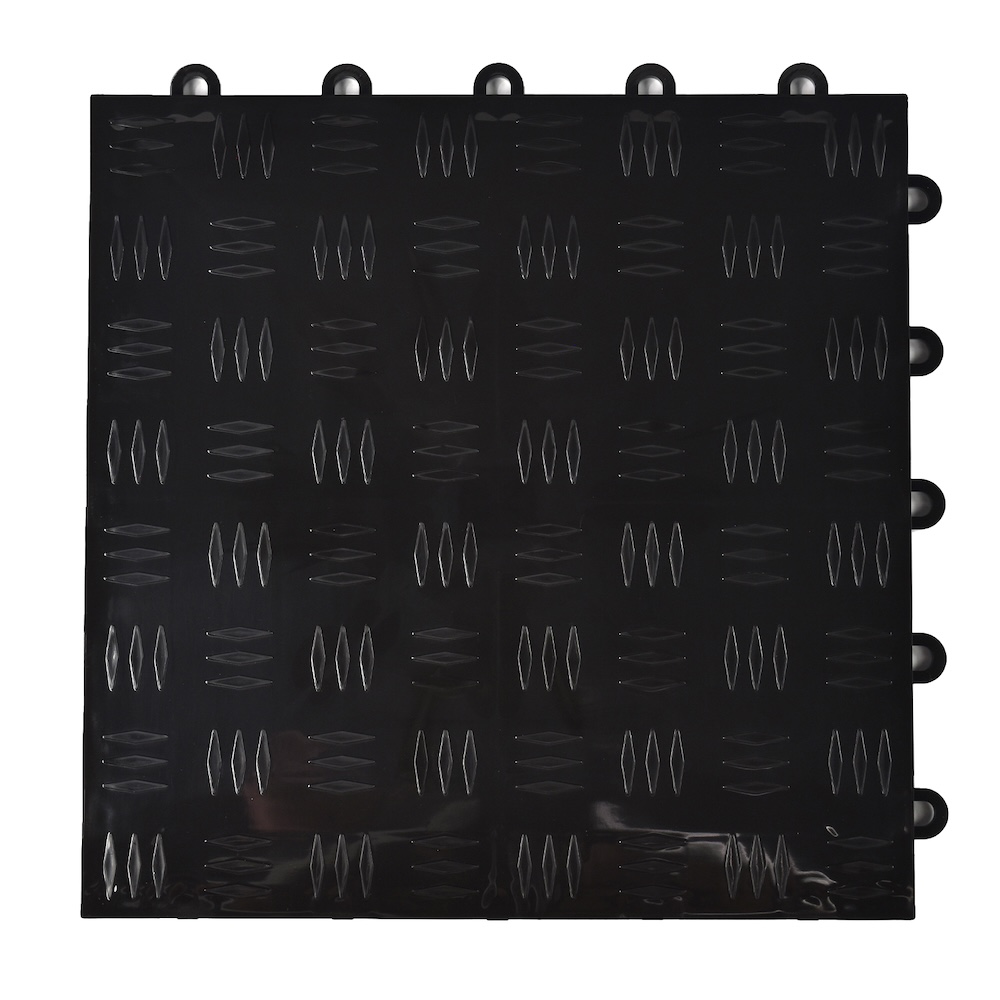

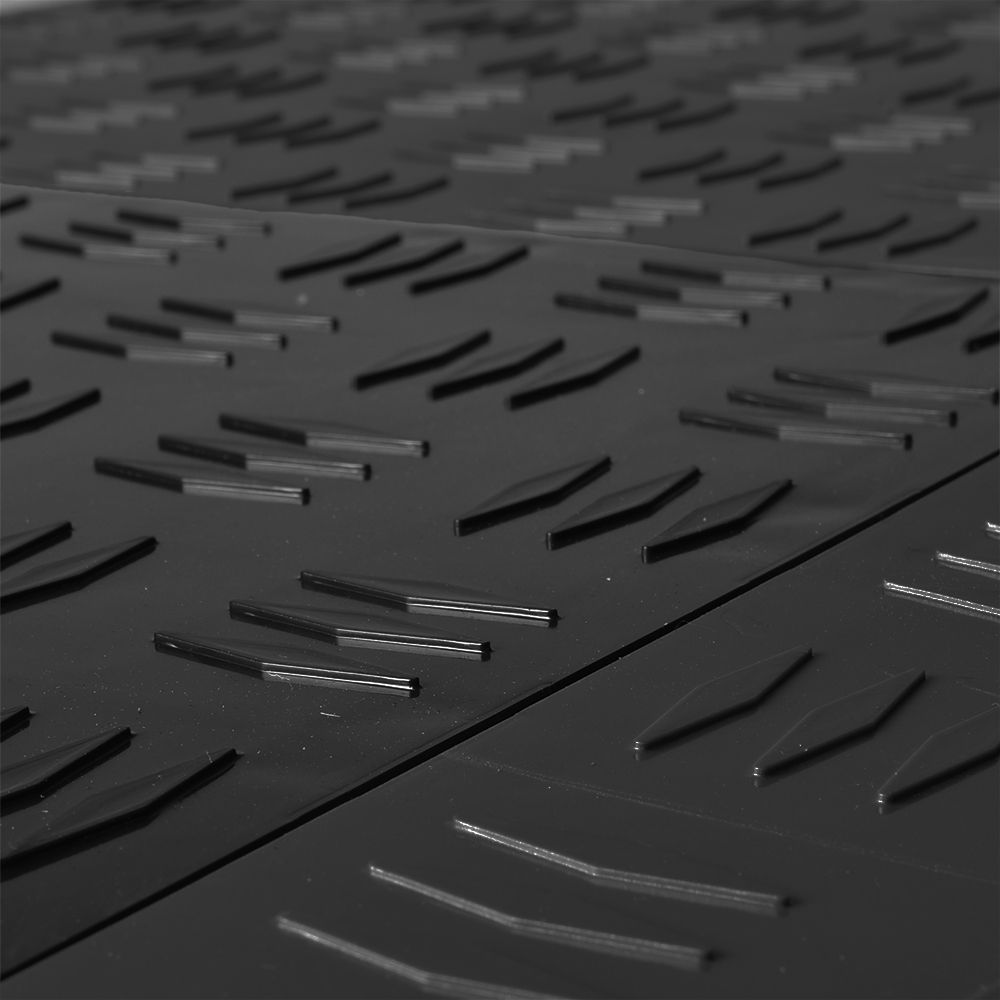

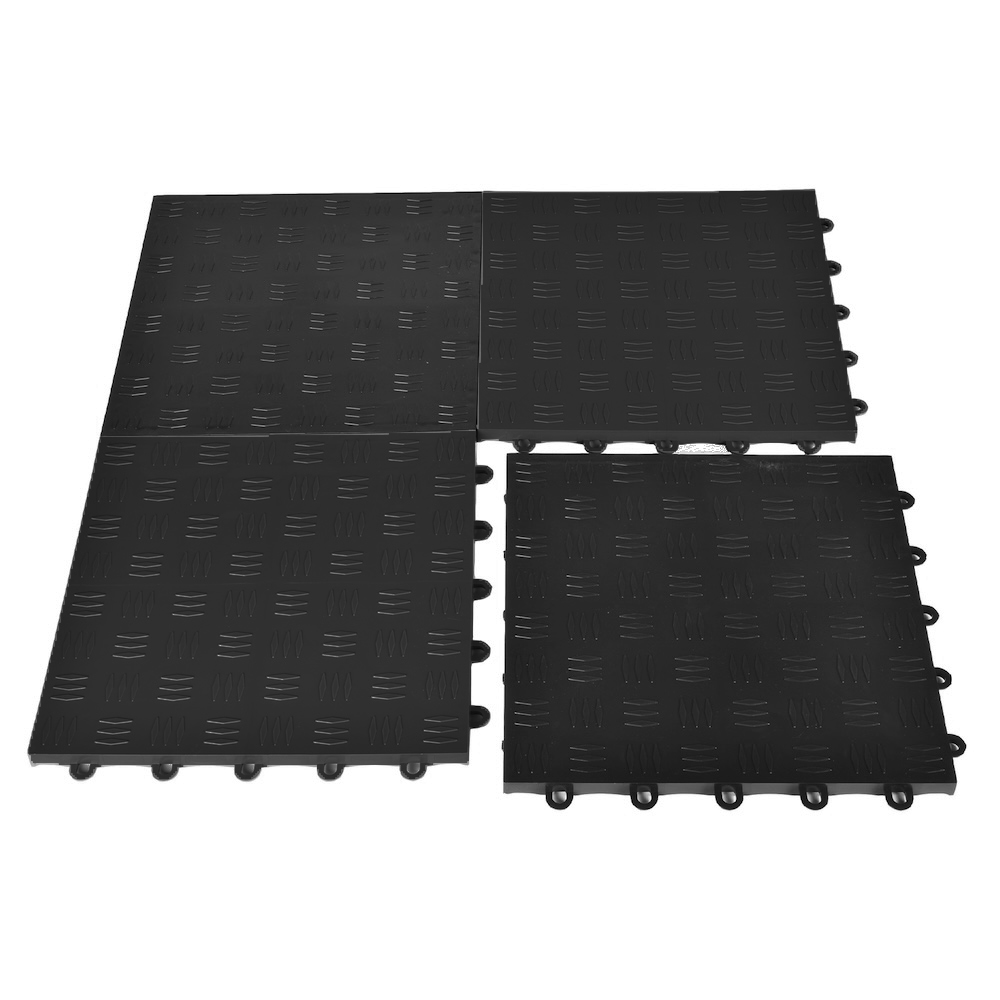

Garage Floor Tile Diamond Colors Stack. Garage Floor Tile Diamond black tile. Garage Floor Tile Diamond Gray Black Stack. Garage Floor Tile Diamond blue texture. Garage Floor Tile Diamond black and gray seam. Garage Floor Tile Diamond gray and black diamond. Garage Floor Tile Diamond showing corner. Garage Floor Tile Diamond full tile bottom. Garage Floor Tile Diamond Corner Stack. Garage Floor Tile Diamond orange tile black border. Garage Floor Tile Diamond black and gray tile together. Garage Floor Tile Diamond customer installation. Garage Floor Tile Diamond customer install. Garage Floor Tile Diamond customer trade show.

Star Rating Image (4 Reviews ) Write a Review
$2.79 per Tile - $2.74 per SF On Sale - Reg: $3.80 per Tile - In Stock
Free Shipping - lower 48
Ships out 4-6 Days
Ship times are typical, inquire for immediate availability.
  • Garage Floor Tile Diamond black swatchGarage Floor Tile Diamond black swatch
  • Garage Floor Tile Diamond light gray swatch.Garage Floor Tile Diamond light gray swatch.
    Light Gray
  • Garage Floor Tile Diamond dark gray swatch.Garage Floor Tile Diamond dark gray swatch.
    Dark Gray
  • Garage Floor Tile Diamond yellow swatch.Garage Floor Tile Diamond yellow swatch.
  • Garage Floor Tile Diamond red swatch.Garage Floor Tile Diamond red swatch.
  • Garage Floor Tile Diamond blue swatch.Garage Floor Tile Diamond blue swatch.
  • Garage Floor Tile Diamond orange swatch.Garage Floor Tile Diamond orange swatch.
  • Garage Floor Tile Diamond metallic swatch.Garage Floor Tile Diamond metallic swatch.
50 Tile Minimum

Calculate Tile Count
Try the Pro Floor Designer

Create complex room layouts to scale.

Request a Sales Person Contact
Please request a quote over 300 SF
DESCRIPTION⌃ Back to top
  • Benefits
  • Easy snap together modular floor tiles
  • Durable 20000 lbs load rated
  • Unique tab and loop connector system
  • Easy to disassemble and re-assemble as needed
  • Portable flooring for home and industry
  • Colors are vibrant with diamond surface pattern
  • Coin, diamond and flat top surface pattern options
  • Border and corner ramped edging availlable
Use Types

Garage Flooring, Event Floor, Trade Show Floors, Portable Flooring

The best looking interlocking on the market at the best pricing. This snap together modular flooring tile is available in diamond top surface pattern design. Choose for a variety of race car colors from biker orange to metallic and yellow or red. Mix and match to make a unique design in your garage floor.

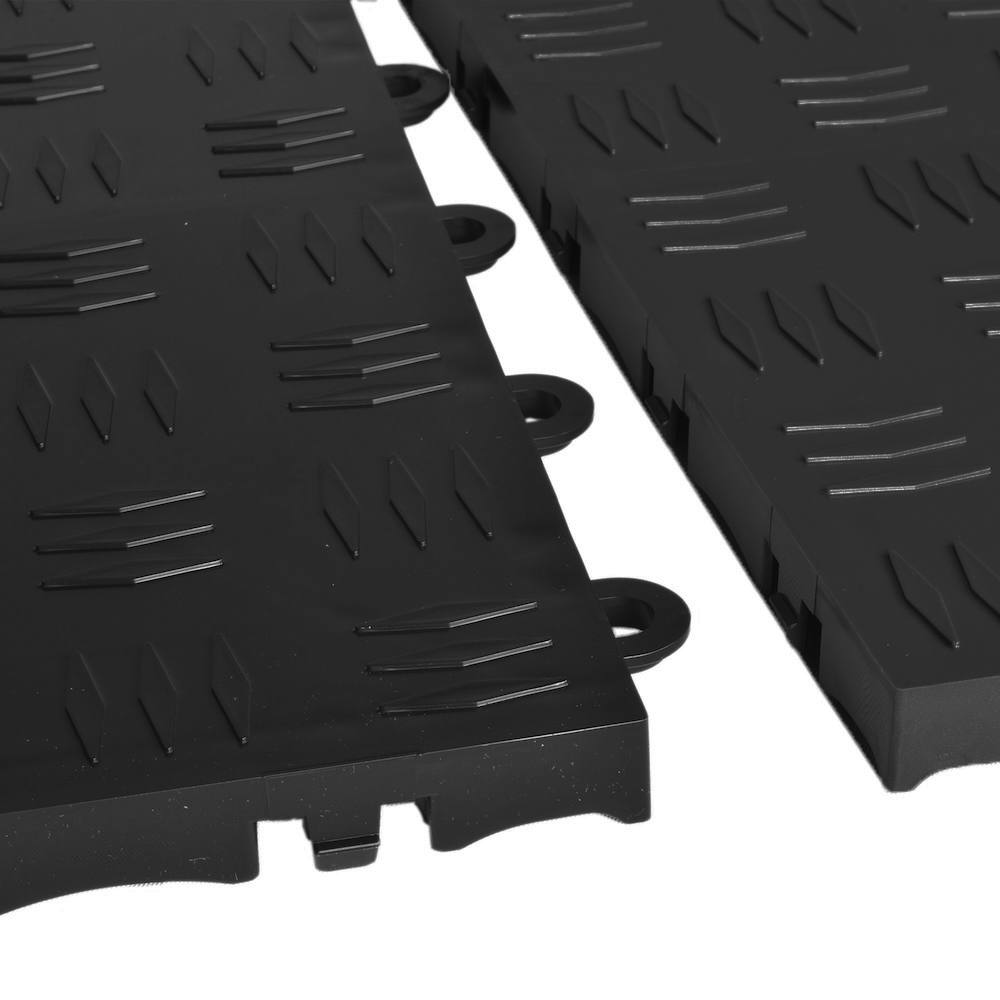

To snap connect the tiles together, always work out away from the loop edges of the tiles. Simply lay the tab side of one tile on top of the loop side of the adjacent tile and gently step with a tapping motion on the top tile to set the tile down into place. The need to step on the tile vs. simply using your hands, speaks to the durable nature of the tab and loop connector system and tight fitting nature of this floor tile. The initial installation of this floor tile will require more pressure, subsequent installations will require less pressure.

The unique computer designed tab and loop connector system of this tile is the best on the market. The connector design holds each tile together very securely and with no play between the tiles. The unique design of the tab connector system makes the tiles easy to disassemble for repeated installations. When installed the floor the tiles will stay together firmly over time and will not shift or separate. To separate the tiles simply lift up one row of tiles that have the loops over the tabs, and with a slight downward motion the entire row of tiles will separate. This makes this modular floor tile extremely fast to disassemble and and excellent choice for portable and temporary installations for events and trade shows floors.

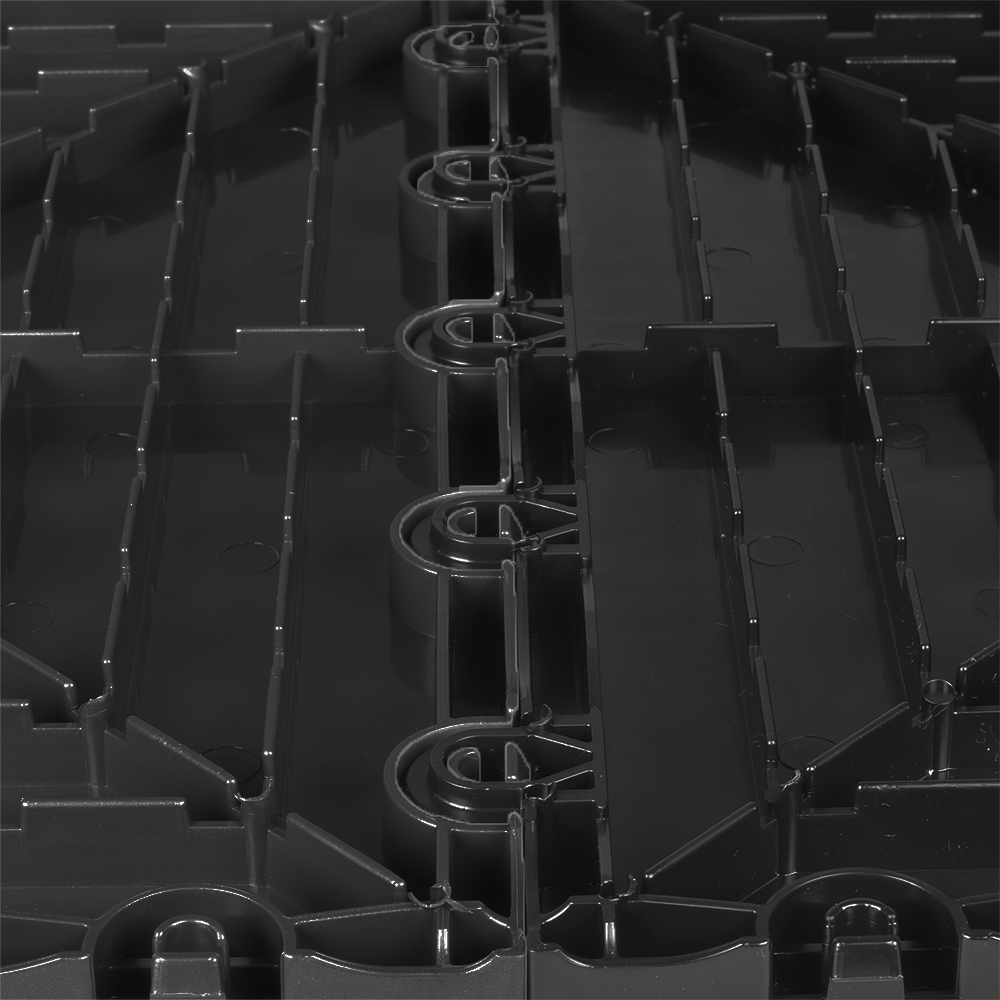

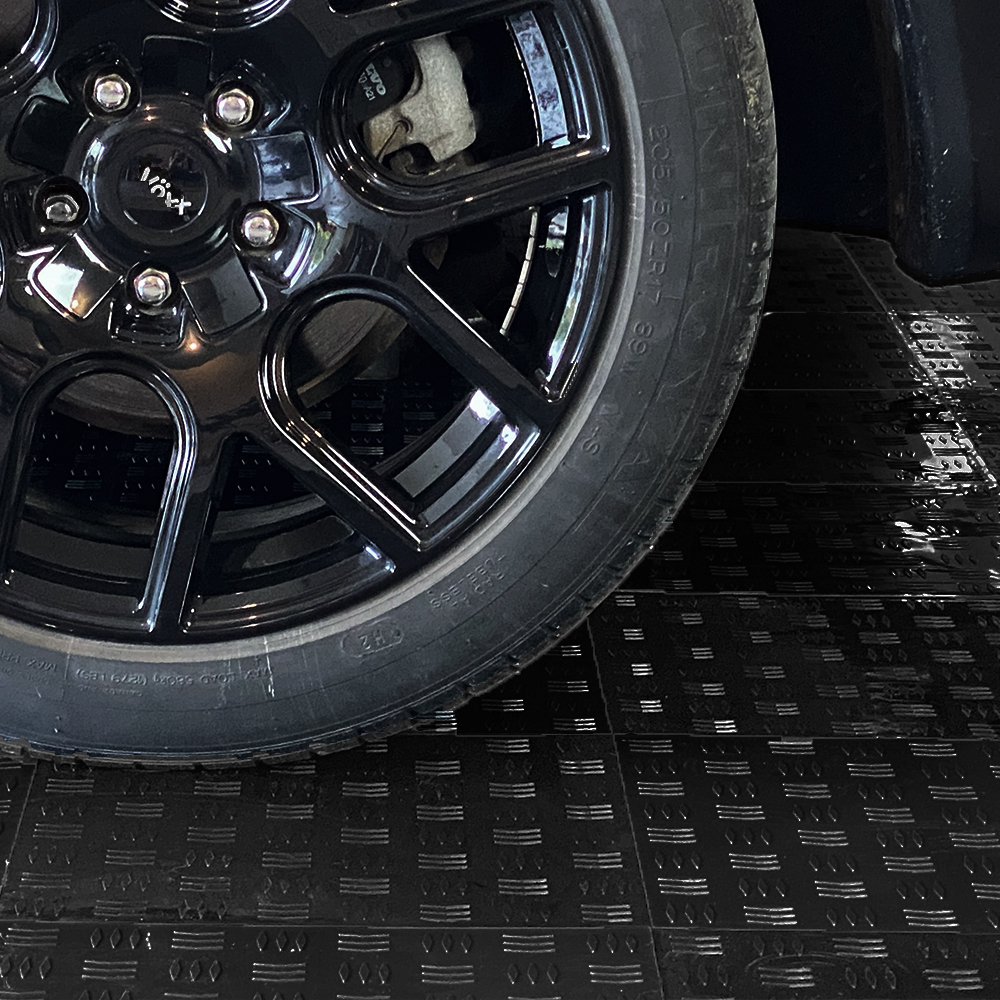

This product has been computer tested to handle well over 20,000 lbs. per SF of static weight load. The underside structure of this floor tile has been uniquely designed to carry heavy loads without deflection or tile deformation over time. This means you can drive and park your heavy trucks on this floor tile in home garages and industrial locations.

This snap together floor tile is manufactured in the USA with high quality no break polypropylene material, and colored with deep rich colors that are throughout the entire modular floor tile.

To cut the tiles for wall to wall and special fit installations use a sharp utility knife. Score the tile several times then bend the tile to its breaking point, or use a table saw or a circular saw to cut the tiles. Always use safety glasses when using power tools.

Ramped border strips and corner pieces are available for this floor tile that snap onto the main tiles. Make a finished edge on this flooring system with our border and corner pieces. See related products for the border ramps.


Clean with damp mop, hot water and common household floor cleaner.


Ships in cartons via ground service to your door, for larger orders product may ship freight delivery.

This Product Ships UPS Ground, FedEx Ground and/or Freight.
Please review our shipping disclaimer.

In Stock Yes
Product Type Tile
Material Type Polypropylene Plastic
Product Edging Interlocking
Thickness 5/8 inch
Width 1.00 feet
Length 1.00 feet
SF per Item 1.02
Weight 0.94 lbs
Packaging Cartons
Number of Pieces per Package Type 26
Non Absorbent Yes
Special Adhesives No
Universal Interlock No
Interlock Loss 0.00 feet
Material Density Shore A 100
Interlocking Connections Yes
Made In USA
Order Minimum 50
Surface Finish Diamond Top
Surface Design Solid Color
Installation Method Snap Together Dry Lay
UV Treated No
Reversible No
Border Strips Included No
Manufacturer Warranty 5 Years Limited
PDF DOCUMENTS⌃ Back to top

down arrow3 View Warranty

down arrow4 View Specifications Data Sheet

You will need Adobe® Acrobat® Reader to view PDF documents. Download a free copy from the Adobe Web site.

VIDEOS⌃ Back to top

Q & A⌃ Back to top
Ask a question about this product

Product Questions:

Hello. I am interested in purchasing these tiles to lay over an old, vinyl tiled basement floor. Can these garage tiles be used on a basement floor, and do they require any type of underlayment? Thank you! - Jessica Vera
Yes the tiles can be installed in a basement floor, or any hard flat surface. To make the floor softer and more quiet, you can use a 2 or 3 mm rubber underlayment under the tiles. The underlayment is a great idea for basement floors.
How does the polypropylene tile stand up to chemicles vs the pic tiles? Especially for garage applications where they may be exposed to petroleum products like gas and oil?
Both are very good, the polypropylene will perhaps stain less with car tires. The PVC tiles may need to be sealed.
Can the tiles be put on top of a badly cracked garage floor without any other preparation?
Yes these modular tiles can be installed over cracked concrete floors. Of course any uneven surfaces, may translate upward. Filling in major variations in surface height would be best.
How easily is it cut? I know it can be cut with a jigsaw. any recc on blade or tips and how fast does it go through the material?
Great question, we have good experience with a basic blade type or a table saw can work well or better also.
Is it designed to allow water to flow under it?
Yes any water underneath the tile will flow. Water could get down in between the tiles where they connect to each other, one tile to the next.
do they withstand Canadian winters and are they sold in Canada
Yes these garage floor tiles will be fine in all climates, we can ship to Canada, we stock the tiles here in our warehouse in Wisconsin.

Greatmats Photo Contest
REVIEWS⌃ Back to top

Customer Rating: 5 Stars -

Our new work station at Airbrush Nation Studio in Los Angeles, CA. Your product- It's the best that could happen to our art studio.

Lynwood, CA

Click To View Full Size Photo

Customer Rating: 5 Stars -

I love the floor

MIlton, FL

Click To View Full Size Photo

Customer Rating: 5 Stars -

I was not at the show myself but the report from my compatriots was that the tile worked fantastic. I was told we will never use carpet again and the tile you provided will be used in the Seppi North America Booth's for the foreseeable future.


Click To View Full Size Photo

Customer Rating: 5 Stars -

The Great Mats floor looks great! It was easy to install, even for a guy who is not real handy! It cleans up real nice! Installing this floor had some other positive effects. It looked so good it forced me to do some other things like paint and organize my junk!

Monroevile, PA

Click To View Full Size Photo
