SKU# GymWallPadsAll

Gym Wall Pads All Sizes

Wall Mats, Gym Wall Mats, Custom Wall Mat for Gyms Walls
(1 Reviews ) Write a Review
$65.25 Starting At - In Stock
Ships out 11-14 Working Days
Ship times are typical, inquire for immediate availability.

  • Black 11
  • >
    Forest Green 05
  • >
    Gray 09
  • >
    Kelly Green 13
  • >
    Maroon - Burgundy 16
  • >
    Navy Blue 03
  • >
    Orange 12
  • >
    Royal Blue - Medium Blue 08
  • >
    Sky Blue - Pool Blue 07
  • >
    Tan 06
  • >
    White 15
  • >
    Yellow 04
  • >
    Champion Blue - Bright Blue 01
  • >
    Purple 14
  • >
    Flair Red - Bright Red 02
  • >
    Rich Red - Dark Red 10

Please call Customer Service to Order this Item.
Contact customer service for a quote. Free design assistance.


DESCRIPTION⌃ Back to top Benefits
  • 16 oz. phthalate free vinyl covers
  • 2 inch polyurethane foam core
  • ASTM impact rated foam padding options
  • Class A fire options
  • Digital logo creation
  • Vinyl coated polyester is puncture and tear-resistant
  • Anti-fungal and anti-bacterial treated vinyl covers
Use Types

Gym Wall Pads, Basketball Court Wall Pads, Fitness Facilities Pads, School Wall Pads

High-quality and pads are available with digital image capabilities. This gym wall pad option for school gymnasiums features both direct screw-on or Z-Clip installation methods. Custom designs are standard procedure for our professional staff.

ASTM impact-rated foam padding and Class A fire-rated foam are available combined or separate. Class A fire rated vinyl covering is standard on all these wall mats for gym wall padding. All vinyl is 16 oz. and 6P compliant phthalate free material.

Made in the USA of the highest quality material and craftsmanship, this wall mat pad is available at the most competitive pricing. Free design assistance is included at no extra cost. This wall mat features polyethylene foam with 60% or more recycled content. Choose Class A fire-rated wall pads to receive Class A foam with your pads to meet Class A fire requirements.

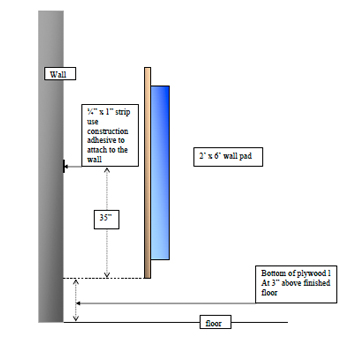

Installation methods are available in two options: Lip-top and bottom or Z-Clip. Lip top and bottom pads feature a one-inch lip at the top and bottom of each wall pad that allows for a direct screw-on connection to a wall or to a 1x2 inch furring strip that is first attached to the wall. Z-Clip installation features a channel type connection method where one channel is connected to the pad and a receiving channel is connected to the wall. This method allows for easy removal the wall pads as needed.

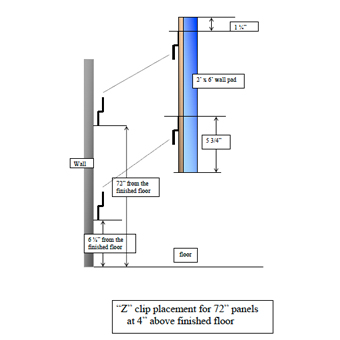

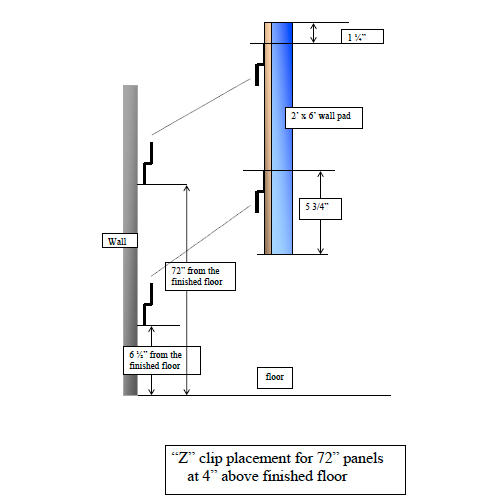

Z-Clip installation note:
Z-Clips are to be attached to the back of the wall pad panels during installation. The wall pads are not shipped with the Z-Clips attached. Z-Clips are provided with screws for attachment. Z-Clips are pre-cut to length and the panels are pre-drilled to receive the screws.

Custom sizes and shapes available please contact customer service.

Vinyl Characteristics:
16 oz. vinyl cover weight
Flame retardant vinyl covering
All vinyl meets NFPA 701 CSFM fire testing, achieves a class A fire rating
Vinyl is 6P compliant, phthalate free and meets CA clean water act
Treated with anti-fungal and anti-bacterial
Vinyl has UV resistant pigments

Additional Features:

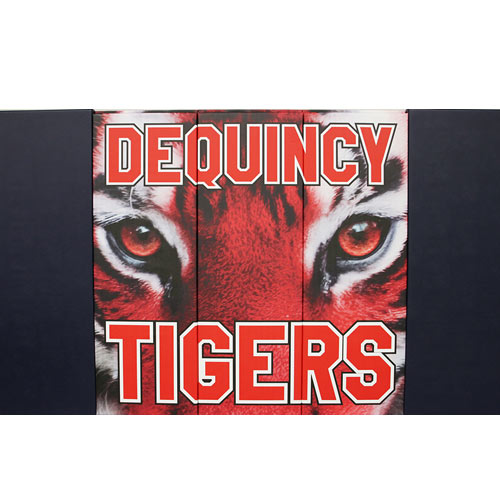

4 Color Custom Digital Logo Creation
2 -inch Thick PE Foam: 1.8 lbs. density x 60 lbs. IFD
Over 60% Recycled Material in Foam Material
Wood Backing: 7/16 inch OSB
110-4 Model is ASTM F2440 Compliant
110-8 Model is Class Fire Rated, Test Method ASTM E-84


Clean with hot water using a sponge. Do not soak in water.


Ships via freight delivery shrink wrapped on pallets.

This Product Ships Freight Only.
Please review our shipping disclaimer.

NOTE: This item is a custom order and is not returnable.

In Stock Yes
Product Type Mat
Material Type Vinyl covered Foam
Product Edging Straight
Thickness 2-3/8 inch
Width 2.00 feet
Length 6.00 feet
SF per Item 12.00
Weight 20.00 lbs
Packaging Shrink Wrapped on Pallets
Number of Pieces per Package Type 20
Non Absorbent Yes
Special Adhesives No
Interlock Loss 0.00 feet
Interlocking Connections No
Made In USA
Order Minimum 5
Surface Finish Smooth flat
Surface Design Solid color
Installation Method Direct screw on or Z-Clip
UV Treated Yes
Reversible No
Border Strips Included No
Manufacturer Warranty 1 year limited
PDF DOCUMENTS⌃ Back to top

 View Installation Instructions

 View Specifications Data Sheet

 View Z-Clip Installation Instructions

PRICING⌃ Back to top

Pricing for Gym Wall Pads

Basic Soft Pads 2x6 Ft x 2 Inch Lip TB $65.25
Basic Soft Pads 2x6 Ft x 2 Inch Z-Clip $76.50
ASTM Impact 2x6 Ft x 2 Inch Lip TB $65.25
ASTM Impact 2x6 Ft x 2 Inch Z-Clip $76.50
Class A Fire 2x6 Ft x 2 Inch Lip TB $130.50
Class A Fire 2x6 Ft x 2 Inch Z-Clip $142.00
ASTM & Class A Fire 2x6 Ft x 2 Inch Lip TB $156.50
ASTM & Class A Fire 2x6 Ft x 2 Inch Z-Clip $168.00
Wall Pad Cutouts $65.00

Custom 4 Color Logos per panel $113.00

Q & A⌃ Back to top
Ask a question about this product

Product Questions:

Is it possible to only purchase the vinyl covering for a one wall pad. The foam is intact , but the vinyl is ripped.
We have repair kits, we do not sell the vinyl solo. Please contact us.
Can this item be custom cut to accommodate a pipe or wall outlet?
Yes can implement cutouts during production please work with our customer service team.

REVIEWS⌃ Back to top

Customer Rating:

Here's how it turned out! Went pretty well only one measurement error on my side and one missed hole on yours so I think pretty good!

Spokane, WA
