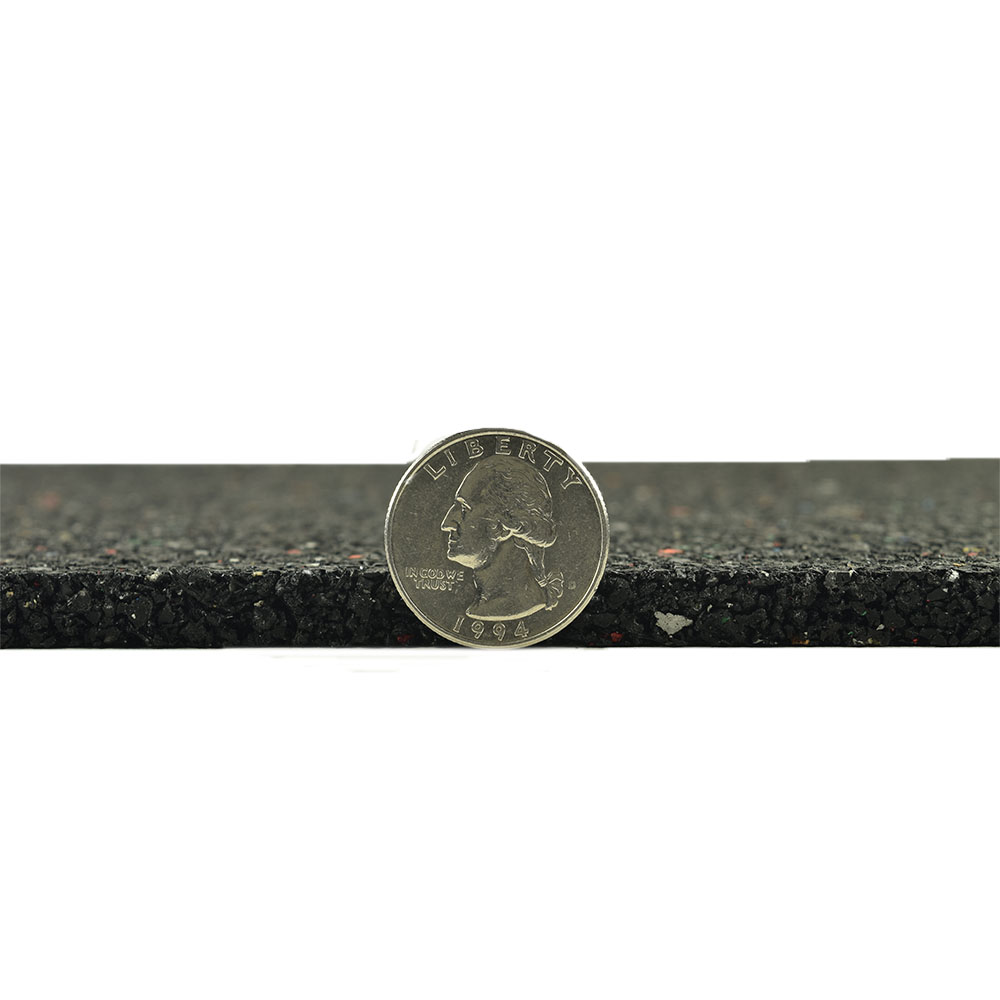

TurfShok Rubber Underlay 8 mm x 4 Ft. Wide per SF
Be the first to review this product
$1.52/sf
Save 20%
$1.52/sqft
Reg: $1.91/sf
Handling Time Estimate: 7-10 Working Days
- Impact padding
- Returns energy to user
- Made from reclaimed rubber
- See More Details
Colors:
Roll Calculator
Note: Material Width for this Product is 4' wide
Rolls are cut to 25 ft minimum
Option 1
Option 2
Custom Roll Length
Request Sales Quote
Please Call for Sample Options
- Impact padding
- Returns energy to user
- Made from reclaimed rubber
- Durable and long lasting
- Outdoor turf underlayment
- Execellent drainage properties
- Recyclable at end of life
- 93 percent recycled content
Underlayment for artificial turf
TurfShok Rubber Underlay 8 mm x 4 Ft. Wide per SF is created specifically for use under artificial turf systems. This synthetic turf shock pad provides increased shock absorption for sports fields, which helps to lessens the risk of injury associated to repeated or forceful impacts. This turf shock pad lengthens the life expectancy of the turf and can be reused when the artificial turf needs to be replaced.
Upcycled vulcanized composition rubber adds greater force reduction and energy restitution to a turf system to help diminish the chance of injuries associated to forceful impacts.
Test Data:
Density: ASTM D297 – 36.8 pcf
Tensile Strength: ASTM D412, Die C – 35 psi
Elongation at Break: ASTM D412, Die C – 40%
Compression @100 psi: ASTM F36 – 30%
Recovery @100 psi: ASTM F36 – 90%
Flexiblity: ASTM F137 – 0-1 Factor
Temperature Stability: -40 to +240 F
Water Permeability: DIN 18035/6 - .09 cm/s
Absorption: ASTM F2569 – 28% (8mm), 32% (10mm), 40% (12mm)
This rubber shock pad is meant to be used as an artificial turf underlayment, not as a finished surface.Upcycled vulcanized composition rubber adds greater force reduction and energy restitution to a turf system to help diminish the chance of injuries associated to forceful impacts.
Test Data:
Density: ASTM D297 – 36.8 pcf
Tensile Strength: ASTM D412, Die C – 35 psi
Elongation at Break: ASTM D412, Die C – 40%
Compression @100 psi: ASTM F36 – 30%
Recovery @100 psi: ASTM F36 – 90%
Flexiblity: ASTM F137 – 0-1 Factor
Temperature Stability: -40 to +240 F
Water Permeability: DIN 18035/6 - .09 cm/s
Absorption: ASTM F2569 – 28% (8mm), 32% (10mm), 40% (12mm)
Minimum order is 25 LF for the first roll, additional rolls have a 15 LF minimum.
Installation: TurfShok rolls can be installed over properly prepared concrete, asphalt, or compacted stone sub-bases. Rolls are factory-cut to job specified lengths to reduce scrap and minimize installation handling and time. Please note: split rolls are part of the manufacturing process. Seams are to be butt-joined along all the joints prior to installation of the turn system.
Turf is sold separately.
TurfShok Rubber Underlay is a registered Trademark of Ecore International.
Shipping
Ships via freight delivery shrink wrapped on pallets.
This Product Ships Freight Only.
Please review our shipping disclaimer.
| SKU# | RBRL1-000458-A1 |
| In Stock | Yes |
| Product Type | Roll |
| Material Type | Rubber |
| Product Edging | Straight |
| Thickness | 8 mm |
| Width | 4.00 feet |
| Length | 1.00 feet |
| SF per Item | 1.00 |
| Weight | 1.20 lbs |
| Packaging | Shrink Wrapped on Pallets |
| Number of Pieces per Package Type | 6 |
| Non Absorbent | No |
| Special Adhesives | Yes |
| Interlock Loss | 0.00 feet |
| Interlocking Connections | No |
| Made In | USA |
| Surface Finish | Smooth |
| Surface Design | Solid color |
| Installation Method | Glue down or dry lay |
| UV Treated | No |
| Reversible | No |
| Border Strips Included | No |
| Manufacturer Warranty | 5 year limited manufacturer |
