Home / Ground Protection Mats / TuffTrak XT Extreme Heavy Duty Ground Protection Mat

TuffTrak XT Heavy Duty Ground Protection Mat, Heavy Duty Road Mat for Safety and Traction

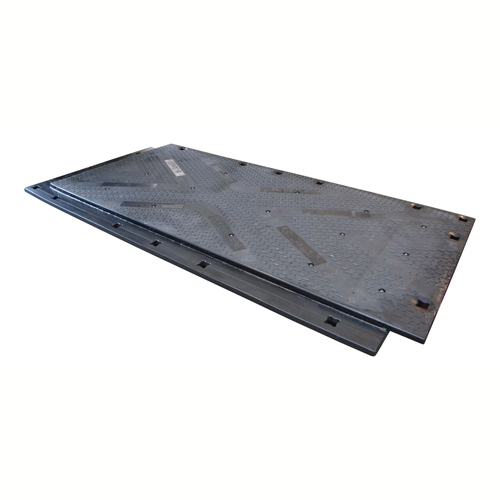

TuffTrak XT Extreme Heavy Duty Ground Protection Mat

Be the First to Write a Review
$2,587.50 per Mat$32.82 per SF On Sale - Reg: $2,875.00 per Mat - In Stock
Ships Out 7-10 Working Days Ship times are typical, inquire for immediate availability.

3 Mat Minimum
Thickness 3-1/2 inch
Length 6.70 feet
Width 13.40 feet
Weight 770.00 lbs
Manufacturer Warranty 1 year limited
DESCRIPTION⌃ Back to top

Top Features for TuffTrak XT Extreme Heavy Duty Ground Protection Mat

  1. Cellular core construction
  2. 16 Connector fixing points (four on each edge)
  3. Low profile traction surface on reversible surface
  4. 30,772 lbs per square foot
Use Types

Ground covers for temporary roadways, civil engineering, construction, oil & gas, transmission, infastructure, military sites, outdoor events.

is an innovation in temporary access matting. Combining a foam filled cellular core and hybrid overlap with 16 connection points TuffTrak XT delivers an 'extreme' heavy duty matting solution for temporary roadways and high performance working pads

Cellular core High Molecular Weight (HMW) Polyethylene delivering buoyancy capability. Unlike other cellular matting systems, being foam filled, TuffTrak XT avoids the intake of liquids and reduces the threat of invasive species or cross contamination between sites. One piece molded polymer for strength and durability. TuffTrak XT offers a reversible surface and a range of connection methods to suit terrain or application. Hybrid overlaps for extra strength at connector and corner points. Heavy duty 'buoyant' temporary access for all weather and ground conditions, especially wetlands, marshlands, peat bogs and river deltas.

Surface has a unique chevron traction surface nub design for maximum grip and reduces sideways movement and slippage, delivering optimal forward traction for heavy machinery, equipment and vehicles. Low profile traction surface on the reverse side of the mat.

Overlaps for extra strength at connector and corner points. Overall measurements: 13 ft 5 in x 6 ft 8 in x 3.54 in. Total square foot: 78.85. Usable surface area 73.62 square foot. Each mat weighs 770 pounds and has 16 corner connector fixing points (four on each edge). Included with each mat is 2 of the Four3 Cam Connectors. Weight load is 30,772 lbs per square foot

50 mats loaded per 40ft container / truck


Hose off or sweep as needed.


Ships on pallets via freight

This Product Ships Freight Only.
Please review our shipping disclaimer.

NOTE: This item is a custom order and is not returnable.

In Stock Yes
Product Type Mat
Material Type Polyethylene Plastic
Product Edging Straight
Thickness 3-1/2 inch
Width 13.40 feet
Length 6.70 feet
SF per Item 78.85
Weight 770.00 lbs
Packaging Shrink Wrapped on Pallets
Number of Pieces per Package Type 5
Non Absorbent Yes
Special Adhesives No
Interlock Loss 0.00 feet
Interlocking Connections No
Made In Europe
Order Minimum 3
Surface Finish chevron nub pattern
Surface Design Solid color
Installation Method Dry lay, connectors
UV Treated No
Reversible Yes
Border Strips Included No
Manufacturer Warranty 1 year limited
