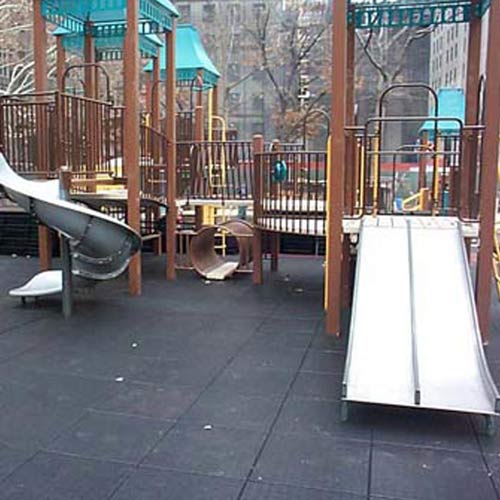

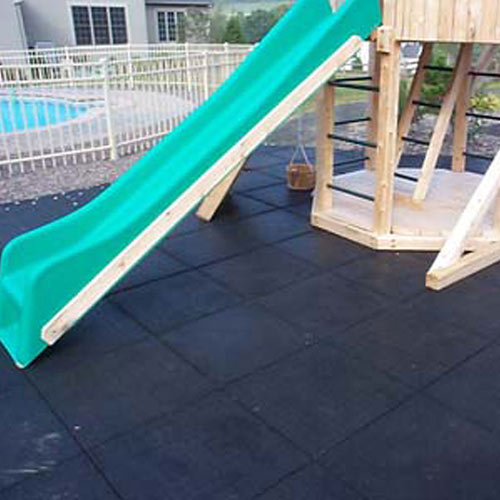

Our pigmented line of Playground Safety Surface MAX is an excellent playground safety surface choice for aging and new playgrounds. It offers various color choices, ease of installation and maintenance, and proven durability.
Ideal for playgrounds, rooftops, and patios, PlayGuard's exclusive Quad Blok system offers reliable easy-down / easy-up installation.
Available only for PlayGuard 2-1/2" (6.35cm) thick tiles, Quad Blok connectors are manufactured from high quality SBR (styrene butadiene
rubber- post-consumer tire rubber) granules. Unlike labor intensive poured-in-place systems, Quad Blok modular connectors feature precisely
located openings that interface with the corner leg understructure of 2-1/2" (6.35cm) PlayGuard tiles. The connectors are quick and easy to
use without adhering to or causing damage to playground substrates and they allow the removal or replacement of individual tiles with minimal
disruption and labor.
The pigmented line of MAX Playground Surfacing is available in two thicknesses: 2 1/2" with a 6 Ft Fall Height Rating and 3 3/4" with an 8 Ft Fall Height Rating. The 24" x 24", modular tiles are designed and thoroughly tested to withstand years of vigorous play.
Installation is Made Easy for smaller jobs or indoor installations with the Quad-Blok® Connector system, which can eliminate the need for a full glue down installation.
A few things to be aware of. This material CAN NOT be installed on top of dirt. It does require a flat hard surface such as concrete, asphalt, decking or if you have dirt then a base of crushed stone that is compacted and leveled is required. Our only outdoor product for playgrounds that can be installed directly on grass and dirt is, Kids Ergo Matta
Quad-Blok™ Connector System
MAX Playground Surfacing can be installed using a variety of installation methods. The most common and secure method is full adhesion of tiles and accessories to the substrates using our one part polyurethane adhesive. Coverage is approximately 70 sq/ft on concrete, 60 sq/ft on asphalt and 55 sq/ft on protective fabric (1/8" square notched trowel).

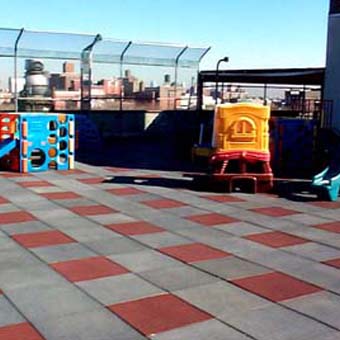

For rooftop and specialty applications, we recommend our exclusive fastening system called Quad Blok. It offers added stability and ease of installation and maintenance. Tiles are adhered to the Quad Blok connector eliminating any potential damage to the roof membrane. Replacing individual tiles and securing a strong, tight-fitting system is a snap with Quad Blok.
Installation using our Quad Blok system is recommended only for 2.5 Inch tiles. Additionally, it uses SikaFlex® 227 in 10.3 oz. caulk tubes, at a rate of one tube per ten Quad Blok connectors with a 3/8" bead.
This product is shipped via freight delivery.
Please review our shipping disclaimer.
- Allows water drainage around and under tiles
- Highly durable
- High coefficient of friction, wet or dry
- Quad-Blok connector system offers installation ease and versatility
- Enables rooftop installation
- Eliminates damage to roofing membranes
- IPEMA certified
- CPSC compliant
- Meets 6' and 8' critical fall height requirements per ASTM 1292-04 and ADA standards
- 15 year warranty
- Recycled rubber composition
View Installation PDF
|Pricing for Playground Safety Surface MAX 2.5"|
|Pricing for Playground Safety Surface MAX Standard Black|
|2.5 Inch - 6 Ft Fall||$27.20 per piece|
|3.75 Inch - 8 Ft Fall||$36.00 per piece|
|Reducer Edge 2.5 Inch||$20.00 per piece|
|Reducer Edge 3.75 Inch||$33.20 per piece|
|ADA Access Ramp 2.5 Inch||$29.00 per piece|
|90 Degree Corner - Outside or Inside||$16.00 per piece|
|Quad-Blok Connector||$2.25 per piece|
|Pricing for Playground Safety Surface MAX Standard Colors|
|2.5 Inch - 6 Ft Fall||Green||$30.00 per piece|
|2.5 Inch - 6 Ft Fall||Red or Gray||$30.00 per piece|
|3.75 Inch - 8 Ft Fall||Green||$38.00 per piece|
|3.75 Inch - 8 Ft Fall||Red or Gray||$38.00 per piece|
|Reducer Edge 2.5 Inch||Green||$23.75 per piece|
|Reducer Edge 2.5 Inch||Red or Gray||$23.75 per piece|
|Reducer Edge 3.75 Inch||Colors||$37.00 per piece|
|Reducer Edge 3.75 Inch||Green||$37.00 per piece|
|ADA Access Ramp 2.5 Inch||Colors||$32.00 per piece|
|90 Degree Corner - Outside or Inside||Colors||$17.50 per piece|
|90 Degree Corner - Outside or Inside||Green||$17.50 per piece|
|Pricing for Playground Safety Surface MAX Day Bright|
|Daybright - 2.5 Inch||$39.00 per piece|
|Daybright - 4.25 Inch||$47.00 per piece|
|Pricing for Playground Safety Surface MAX Day Light|
|Daylight - 2.5 Inch||$33.00 per piece|
|Daylight - 4.25 Inch||$39.60 per piece|
200 SF Minimum Order on this Product - for smaller projects please consider the - Kids Matta Tiles
Day Bright Colors
Day Light Colors
