Quad Blok Connector for 2.5 inch 8x8 inch
GREATMATS CUSTOMERS ALSO VIEWED
Max Playground Rubber Tile 2.5 Inch Colors
MX Outdoor Rubber Tile 1 Inch Colors
Bounce Back Rubber Playground Mats All Sizes
Interlocking Playground Tiles BB All Sizes
Rubber Patio Paver Tile
Blue Sky Rubber Playground Tile 2.75 Inch Colors
StayLock Perforated Colors
Blue Sky Outdoor Interlocking Tile 2.25 Inch Colors
- 2-1/2 inch Max Playground tiles use 8 x 8 inch x 17mm Quad Bloks
- 3-3/4 inch and 4-1/4 inch Max Playground tiles use 8-3/4 x 8-3/4 inch x 19mm Quad Bloks
- 15 year warranty
- Recycled rubber composition
- Highly durable
- Enables rooftop installation
- Eliminates damage to roofing membranes
- Allows water drainage around and under tiles
Playground Floor Connectors, Rooftops, Decks, No Glue Exterior Rubber Tiles

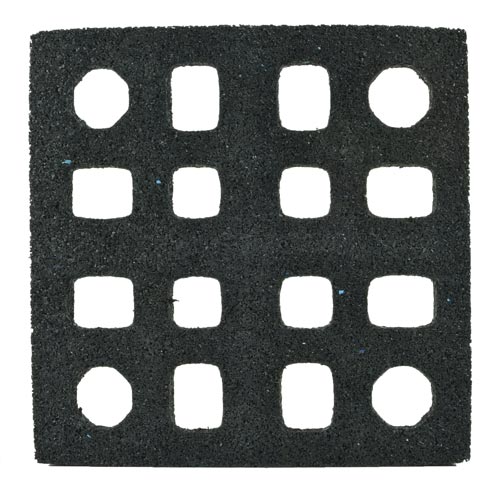

Ideal for playgrounds, rooftops, and patios, Quad Blok interlocking system offers reliable easy-down - easy-up installation. Available for the Max 2.5 inch (6.35cm) tiles, 3.75 inch (9.52cm) tiles, and 4.25 inch (10.8cm) tiles, Quad Blok interlocking connectors are manufactured from high quality recycled rubber. Unlike labor intensive poured-in-place systems, Quad Blok modular connectors feature precisely located openings that interface with the corner leg understructure Max Playground tiles. The connectors are quick and easy to use without adhering to or causing damage to playground substrates and they allow the removal or replacement of individual tiles with minimal disruption and labor.
Please contact customer service for information regarding the Quad Blok for 3.75 and 4.25 inch rubber tiles.
One Quad Blok required per tile.
QUAD BLOK INSTALLATION - 2.5 inch thick tiles only.
NOTE: There are two sizes of Quad Bloks. Use only the smaller, 8 x 8 inch Quad Blok for the 2.5 inch thick tiles.
Installation instructions for 3-3/4 inch and 4-1/4 inch tiles using Quad Bloks; refer to page 8.
A. Follow the Site Layout instructions to prepare the roof for the installation of the 2.5 inch tiles.
B. Once chalk lines are established, place the first tile at the intersection of two chalk lines, aligning adjacent edges of the tile with the chalk lines.
C. Apply a continuous 3/8 inch diameter bead of E-Grip III adhesive along the center axes of all Quad Blok connectors. Working adhesive time is dependent upon environmental conditions.

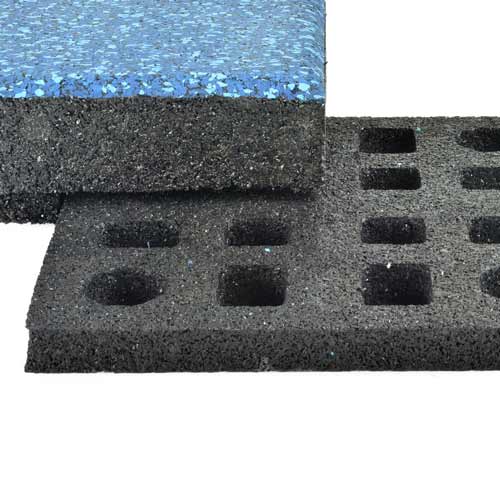

D. Fit the first tile with four prepared Quad Blok connectors by lifting each tile corner slightly, sliding the connectors under each corner and engaging the four corner legs of each tile
with the respective apertures in the Quad Blok. Continue to sequentially lay the tile and to set the Quad Blok
connectors along one chalk line until the first course of tile is complete.
NOTE: In the field, cut the Quad Blok connectors in half to properly secure tile around the perimeter edge of surface area.
E. Complete the other three quadrants of the roof deck in a similar fashion.
F. Depending on manpower availability, one or more quadrants can be worked on simultaneously using the above method.
G. Allow 24 hours for adhesive to cure before opening area for use.
H. One 10.1 ounce tube of adhesive is required for approx. 10 of the smaller, 8 x 8inch Quad Blocks.
Ships with Max Playground tiles
This Product Ships Freight Only.
Please review our shipping disclaimer.
SPECIFICATIONS⌃ Back to top
|SF per Item||0.44|
|Packaging||Shrink Wrapped on Pallets|
|Number of Pieces per Package Type||1|
|Interlock Loss||0.00 feet|
|Surface Design||Solid color|
|Installation Method||Glue to tiles|
|Border Strips Included||No|
|Manufacturer Warranty||15 year limited|
